51 12 156 Removing and installing rear bumper trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

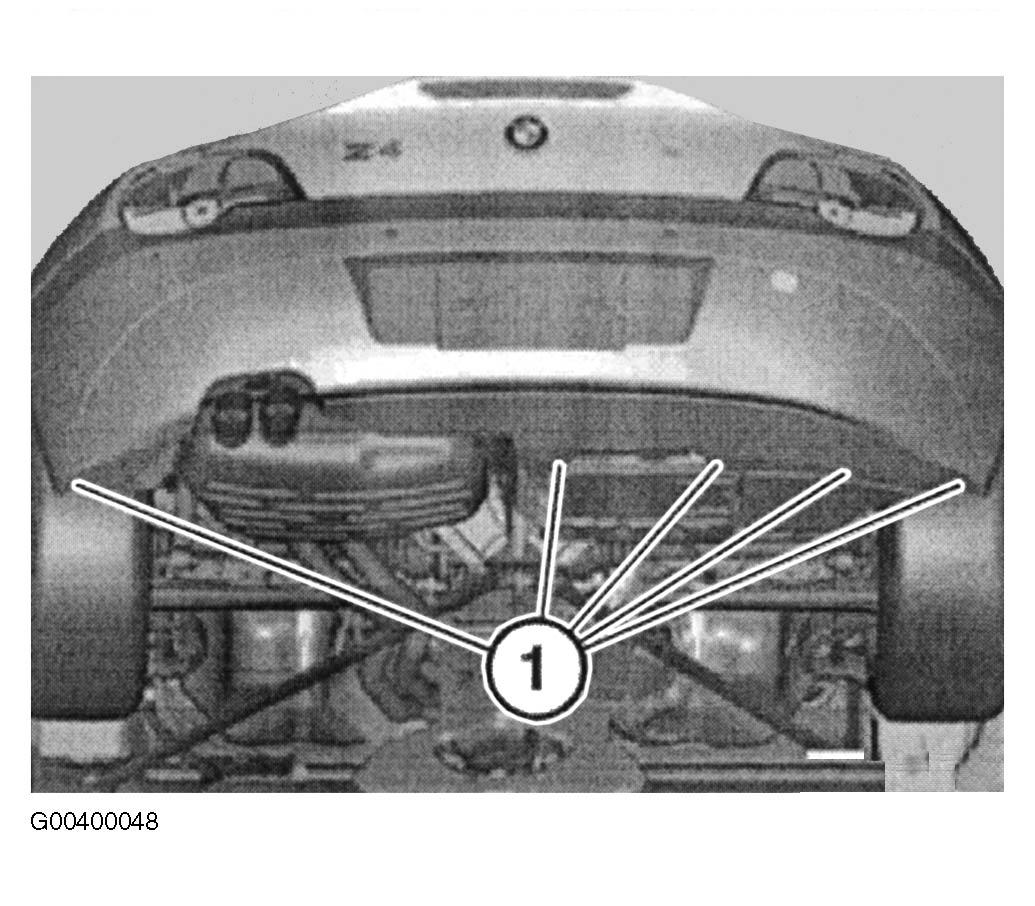

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

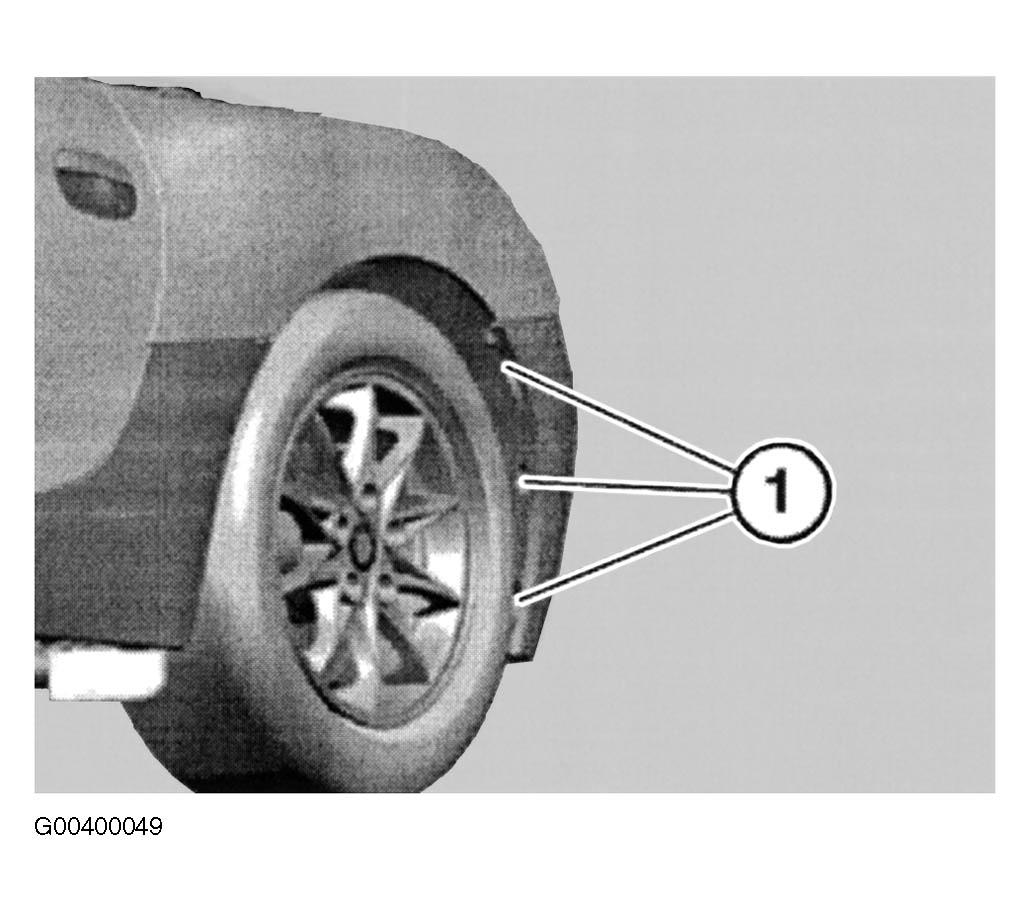

Release expansion rivets (1) on left/right.

Fig 2: Releasing Expansion Rivets On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

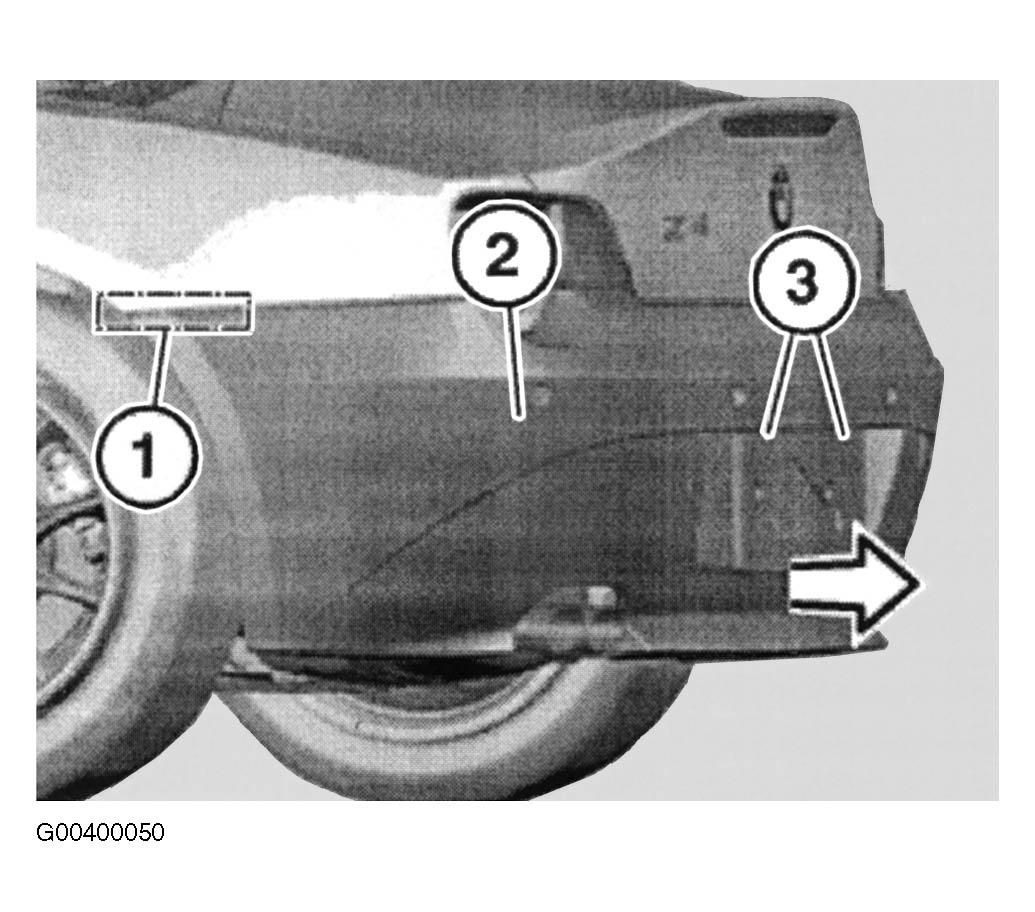

Unclip bumper trim (2) in area (1) on left/right outwards. Pull bumper trim (2) a little in direction of arrow and disconnect plug connections on license plate lights (3). Remove bumper trim (2) with aid of a second person.

Fig 3: Removing Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
