51 46 050 Removing and installing/replacing top trim on tail panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim (luggage compartment mat)

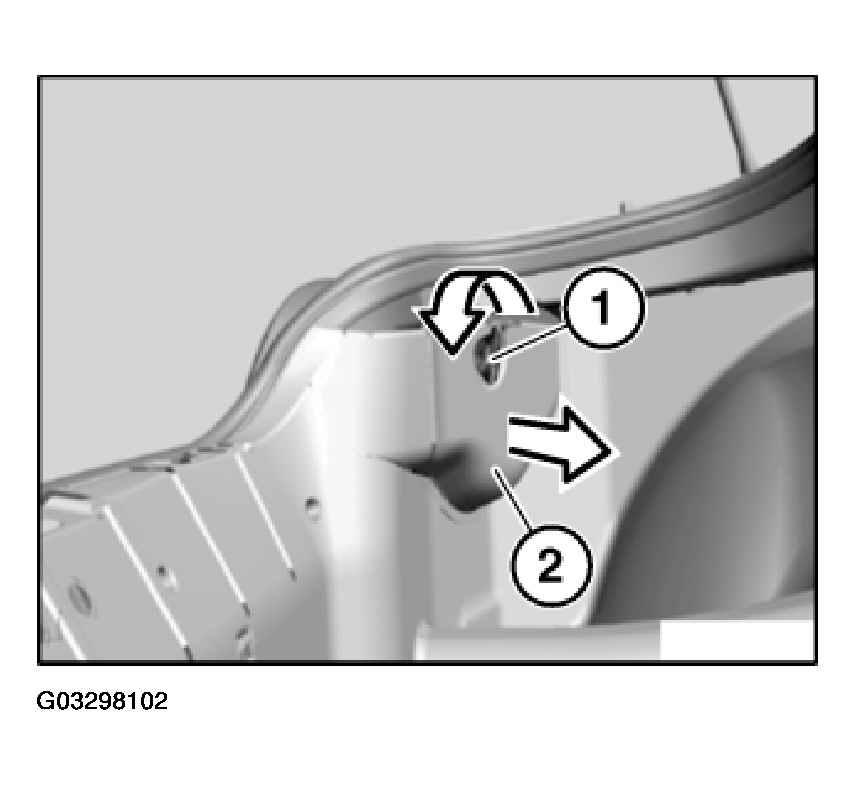

Turn screw cap (1) in direction of arrow and remove trim (2) on left and right.

Fig 1: Turning Screw Cap In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

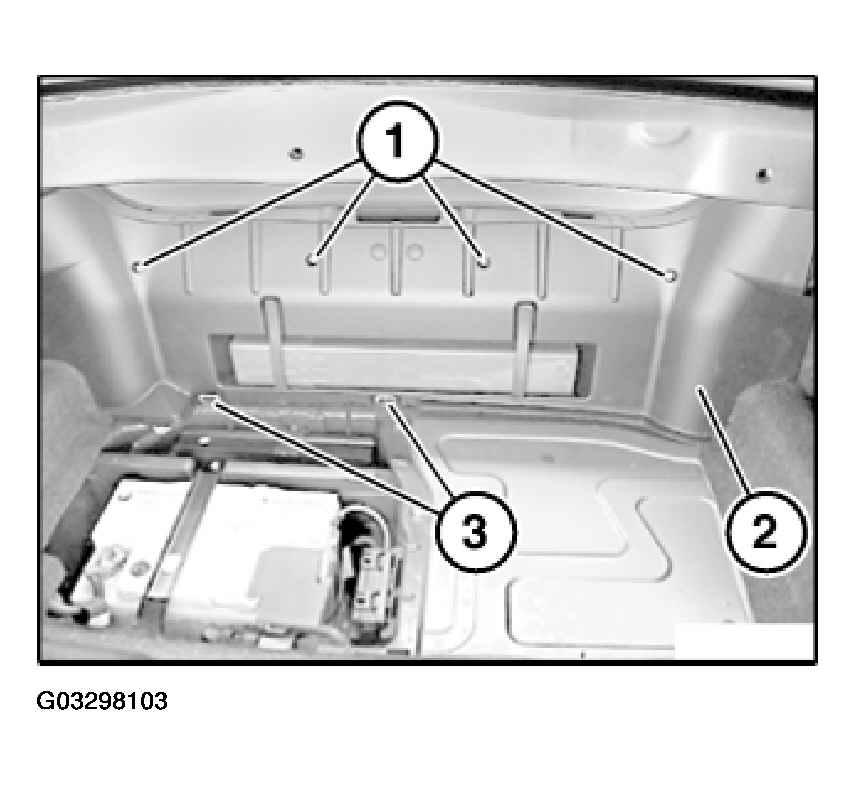

Release screws (1).

Remove trim for tail panel (2).

Installation:

Insert trim for tail panel (2) behind retaining lugs (3).

Fig 2: Inserting Trim For Tail Panel (2) Behind Retaining Lugs (3)

Courtesy of BMW OF NORTH AMERICA, INC.
