51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove counter support (2) in direction of arrow.

Installation:

Make sure fixtures (3) of sun visor and counter support (2) are correctly seated in mountings.

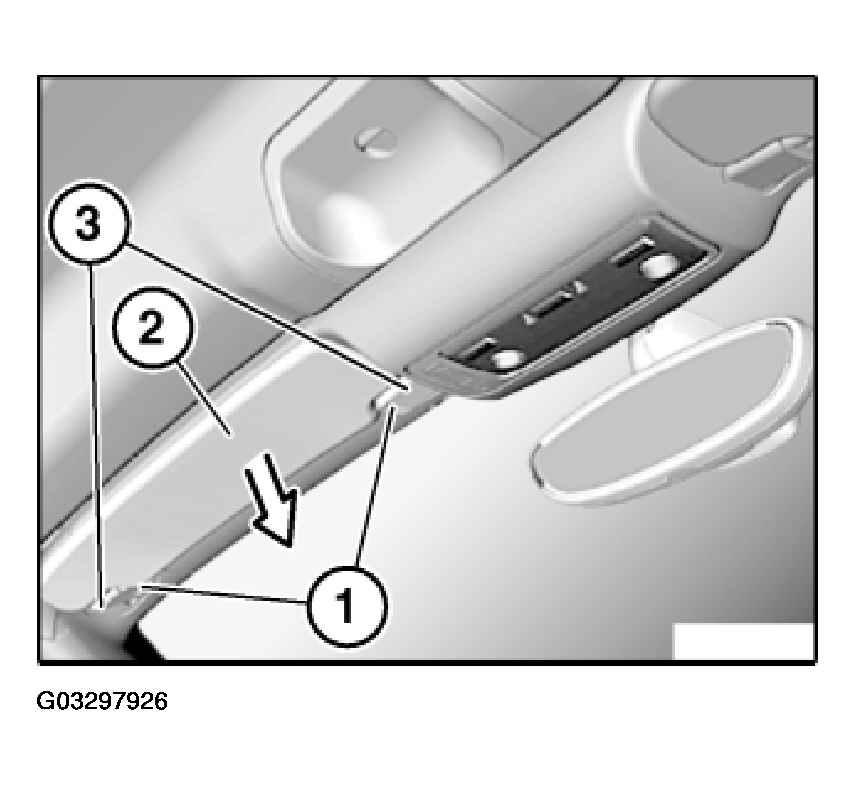

Fig 1: Removing Counter Support In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
