51 16 026 Replacing mirror glass

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If mirror glass is damaged:
Wear protective goggles and tearproof gloves during the removal operation.
Risk of injury by flaking-off glass splinters.

Tilt mirror glass upwards.

Tape off housing edge with adhesive tape (1) (risk of damage).

Slide bore (2) of bayonet lock to right, this is the same for the right and left sides.

Bayonet lock (2) must be completely unlocked.

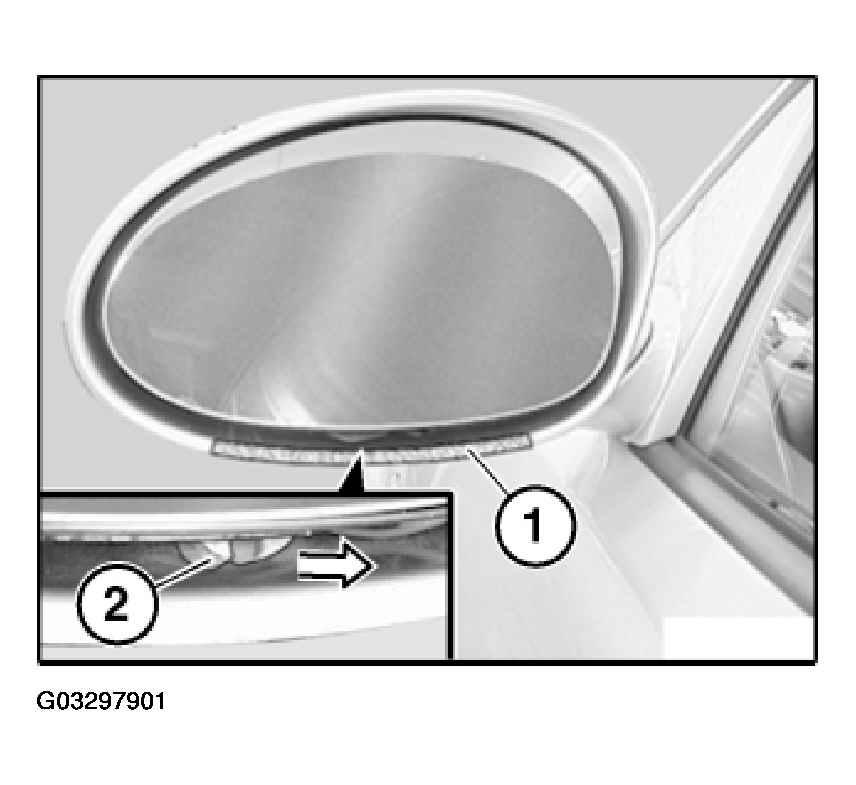

Fig 1: Taping Off Housing Edge With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) for mirror heating.

Disconnect plug connection (3) for automatic dimming action and mirror glass (2).

Installation:

Clip plug connection (3) into holder (4).

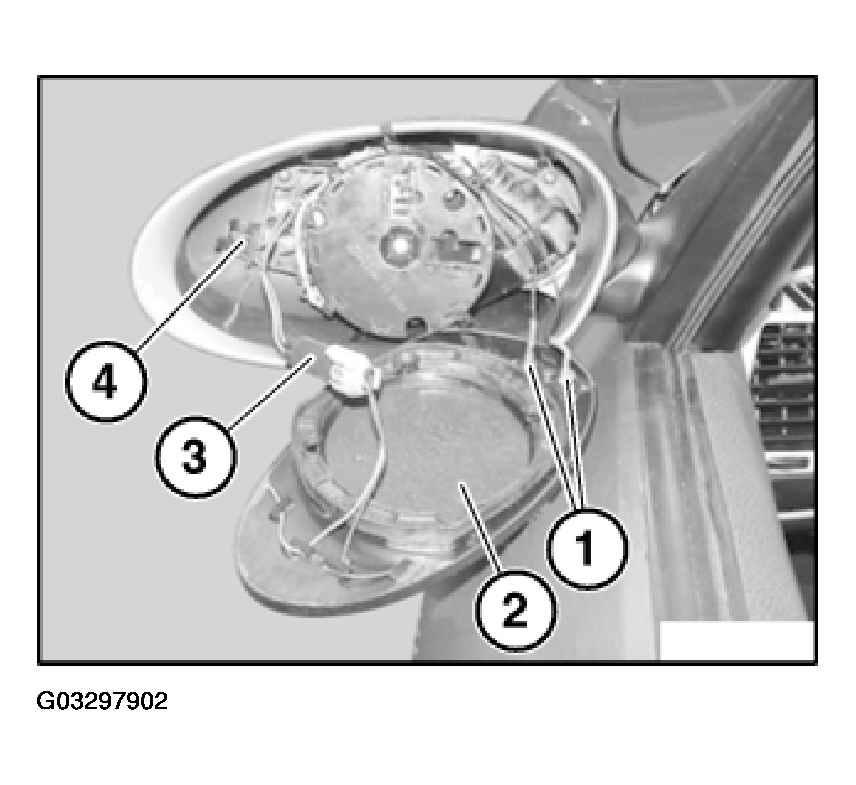

Fig 2: Disconnecting Plug Connection For Automatic Dimming Action And Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror glass must not be damaged or missing:

Connections for mirror heating
Locating pin on bayonet lock
Guides for cable of automatic dimming action

Installation:

Position mirror glass with locating pin (1) on mounts on servodrive.

Slide bayonet lock to left until bore (4) is vertical.

Carry out function check.

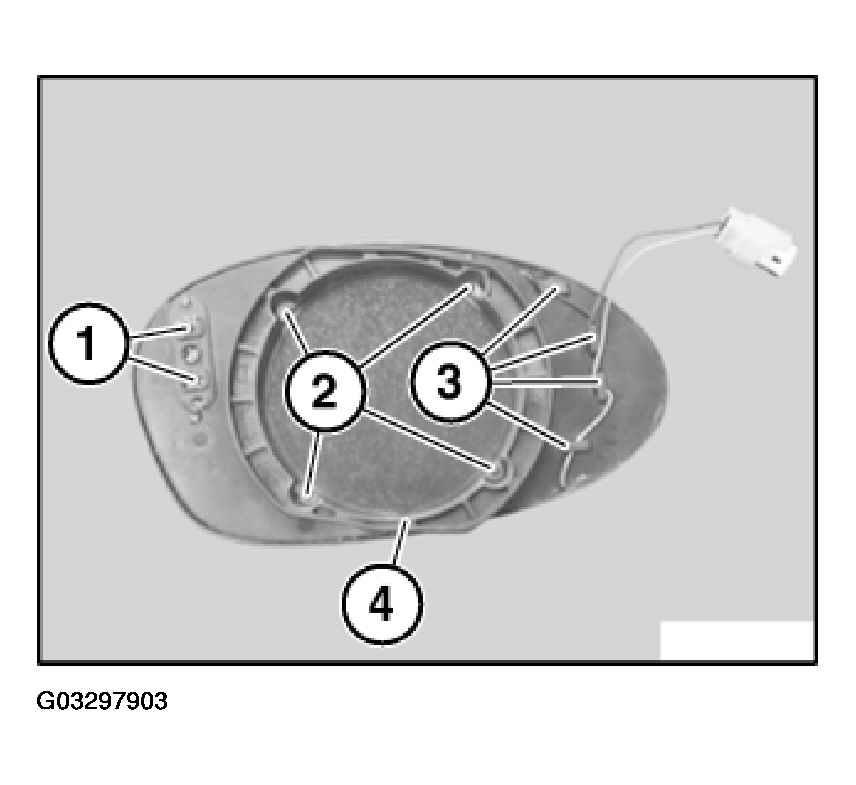

Fig 3: Sliding Bayonet Lock To Left Until Bore Is Vertical

Courtesy of BMW OF NORTH AMERICA, INC.
