51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Door Trim Panel .
Remove 65 13 050 REMOVING AND INSTALLING/REPLACING SPEAKER FRAME .

Lever out clip (1) and expose cable (2).

Installation:

If necessary, replace faulty clip (1).

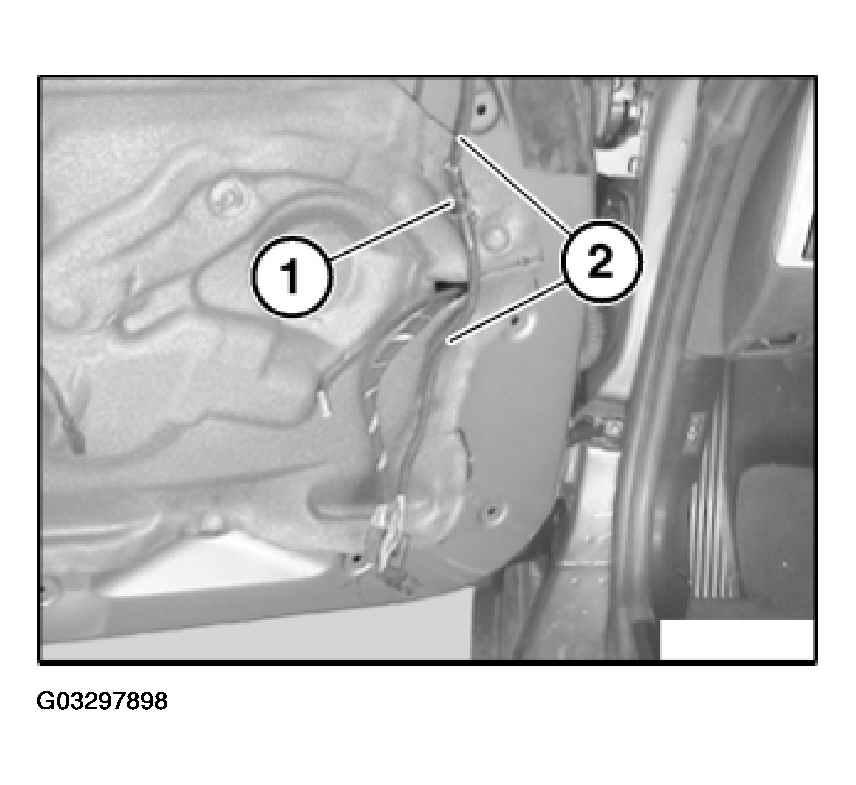

Fig 1: Removing Lever Out Clip And Exposing Cable

G03297898

Courtesy of BMW OF NORTH AMERICA, INC.

Press rubber grommet (1) outwards.

Release screws (2) and feed out rearview mirror (3) with cable.

Installation:

Tightening torque, see 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Replacement only:

Due to the self-tapping screws, the tightening torque is increased by 2 Nm when the rearview mirror is new,

Tightening torque, see 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

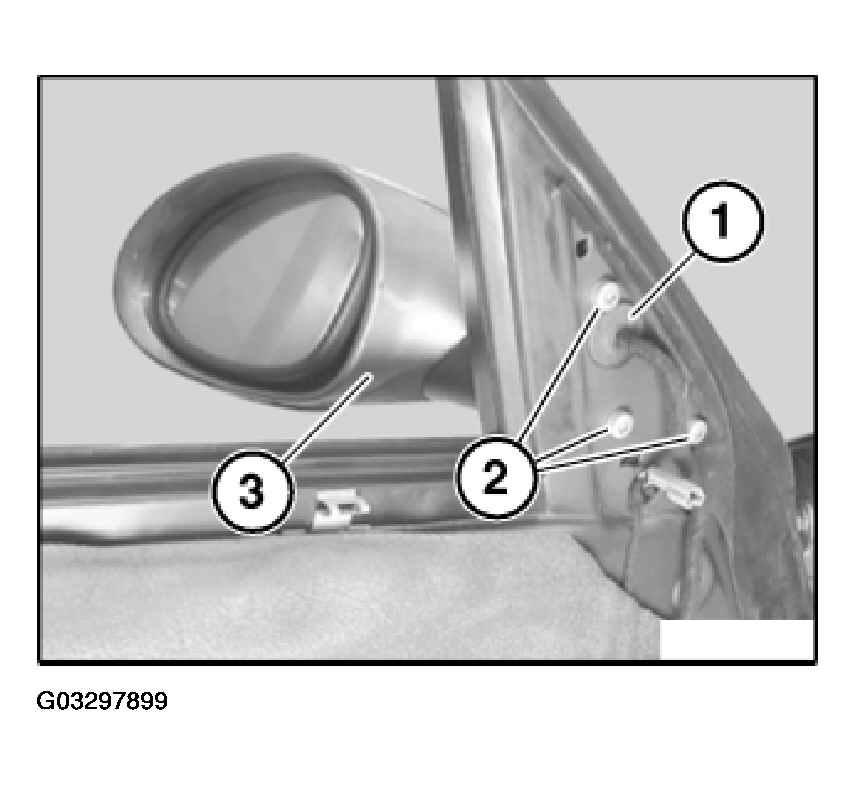

Fig 2: Releasing Screws And Feed Out Rearview Mirror With Cable

G03297899

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of rearview mirror (3) must not be damaged or missing:

Cable grommet
Sound insulation

Carry out function check.

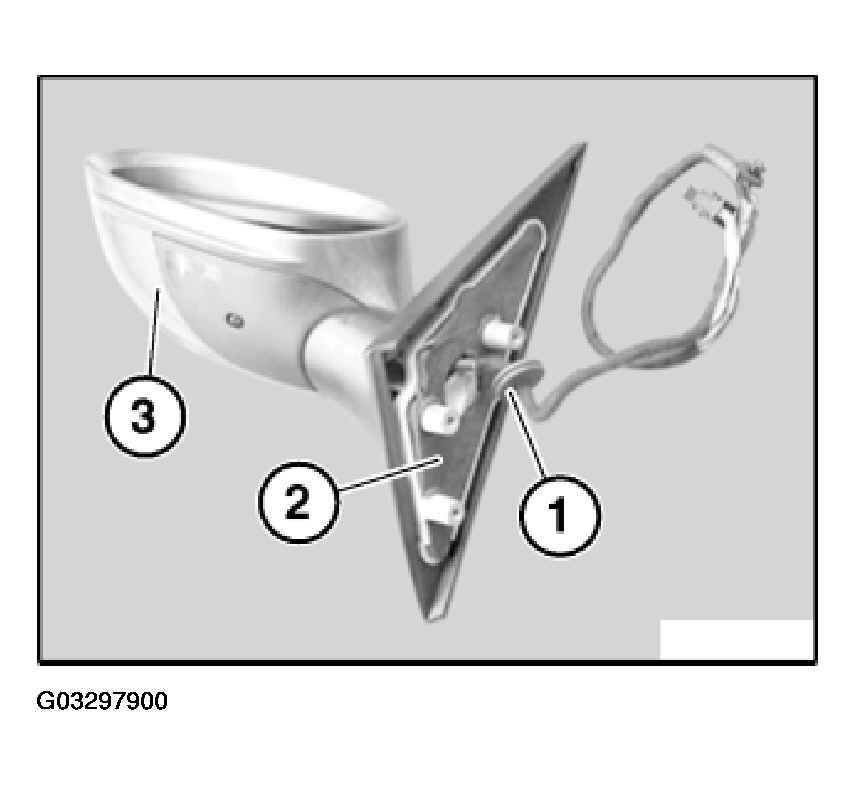

Fig 3: Identifying Cable Grommet (1) And Sound Insulation (2)

G03297900

Courtesy of BMW OF NORTH AMERICA, INC.
