51 45 185 Removing and installing/replacing trim for pedal assembly
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

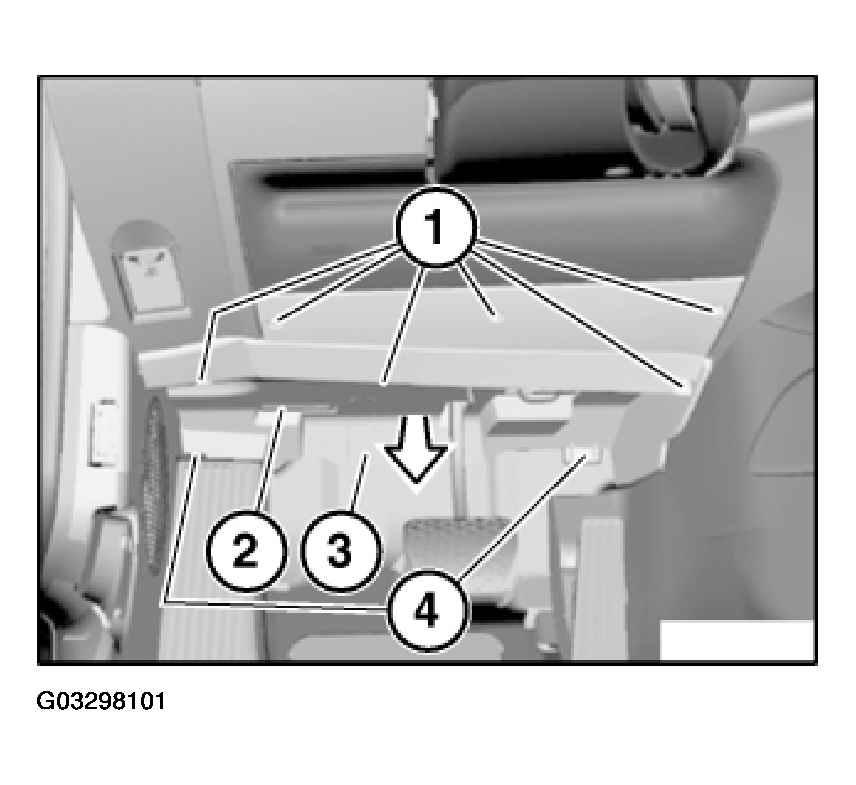

Release screws (1).
Pull back panel for pedals (3) in direction of arrow.
Disconnect footwell light plug connection (2) and remove panel for pedals (3).
Replacement:
Remove footwell light. . See 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .
Installation:
Make sure guides (4) of panel for pedals (3) are correctly seated in associated mountings.
Make sure panel for pedals (3) is correctly seated on footwell vent above.
