51 45 031 Replacing instrument panel trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove instrument panel trim . See 51 45 031 Replacing Instrument Panel Trim .
Replace seal on heater - A/C system

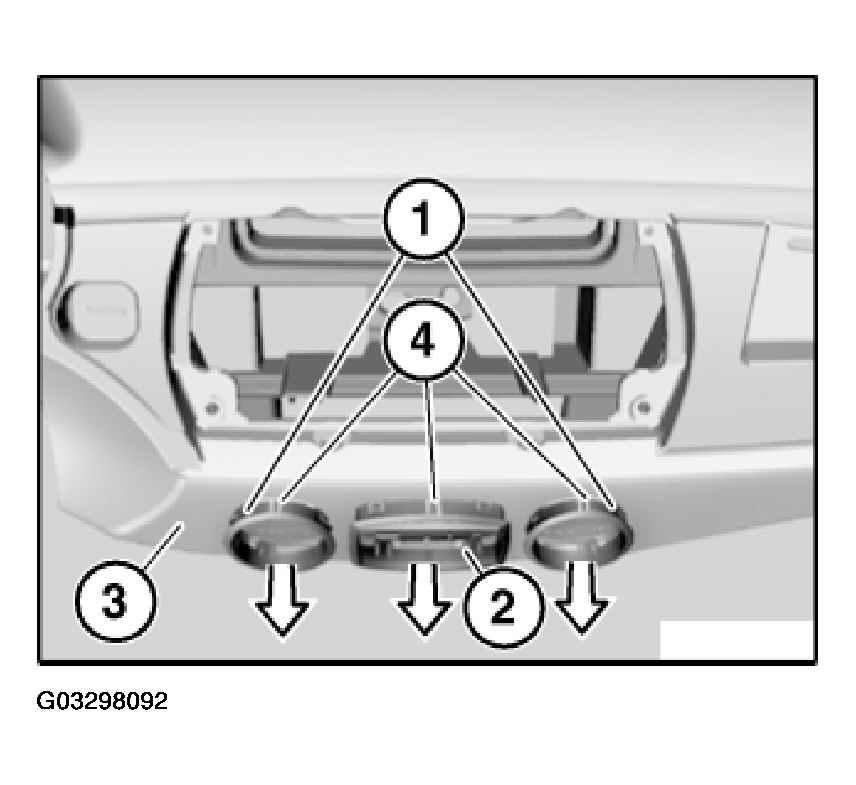

Unclip trims for heater controls (1) and (2) and remove in direction of arrow from instrument panel trim (3).

Installation:

Make sure upper guides (4) are correctly positioned.

Fig 1: Uncliping And Removing In Direction Of Arrow Trims For Heater Controls (1 & 2)

Courtesy of BMW OF NORTH AMERICA, INC.

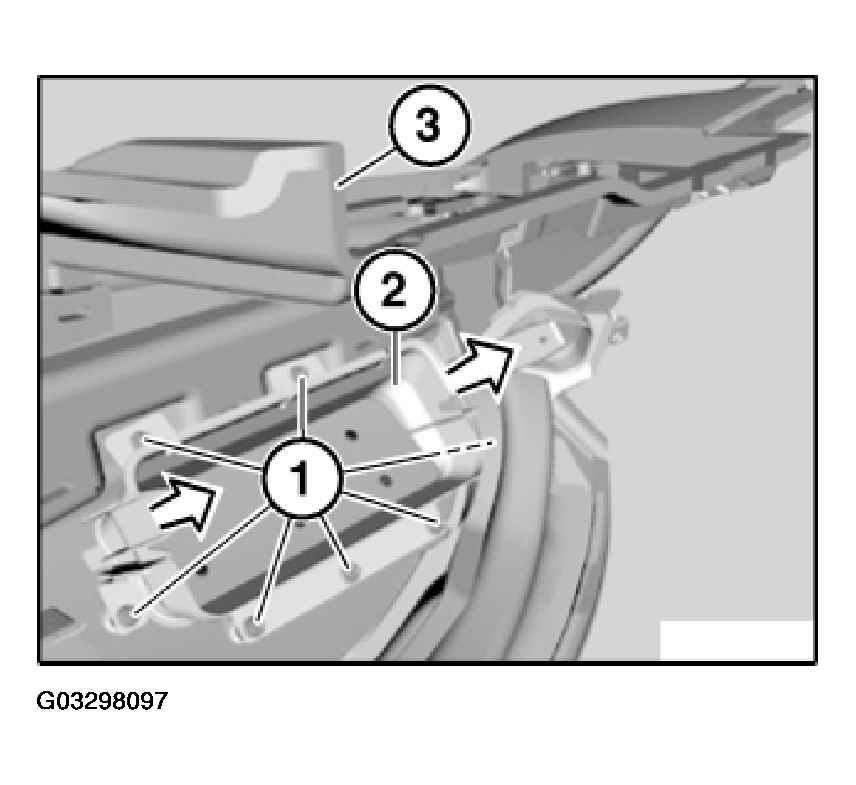

Press locks (1) and remove retaining frame for socket housing (2) in direction of arrow from instrument panel trim (3).

Fig 2: Removing Retaining Frame For Socket Housing (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Version with switch for front passenger airbag deactivation only:

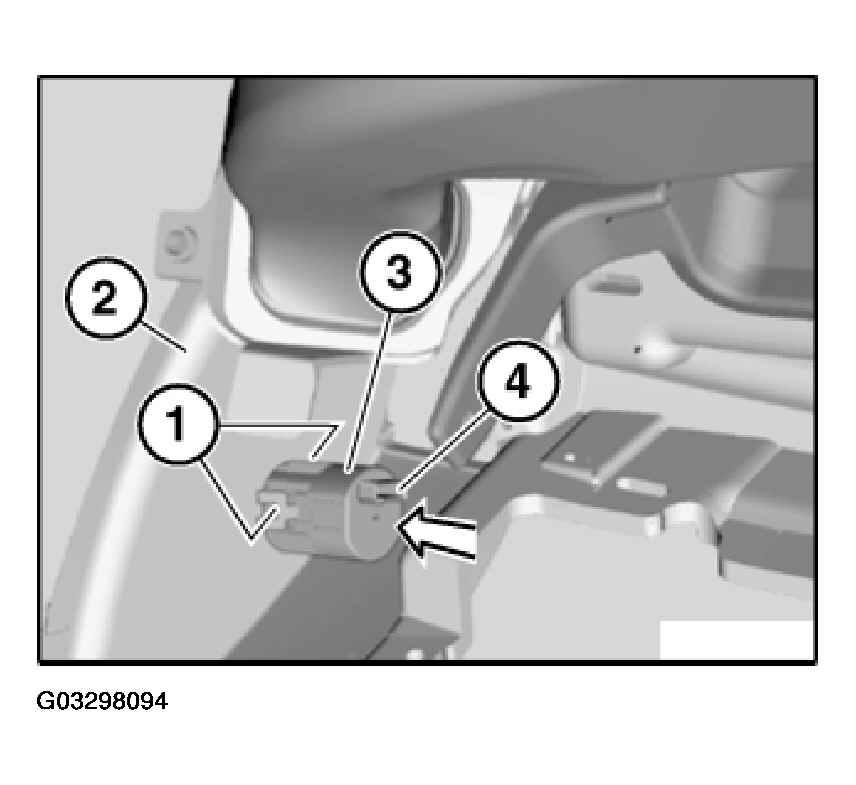

Press catches (1) and remove switch for front passenger airbag deactivation (3) in direction of arrow out of instrument panel trim (2).

Installation:

Make sure switch for front passenger airbag deactivation (3) is in correct installation position (plug connection (4) at top).

Fig 3: Pressing Catches (1) And Removing Switch For Front Passenger Airbag Deactivation

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version with switch for front passenger airbag deactivation only:

If necessary, saw out missing opening using a body saw.
Carry over dimensions for opening from fitted instrument panel trim.

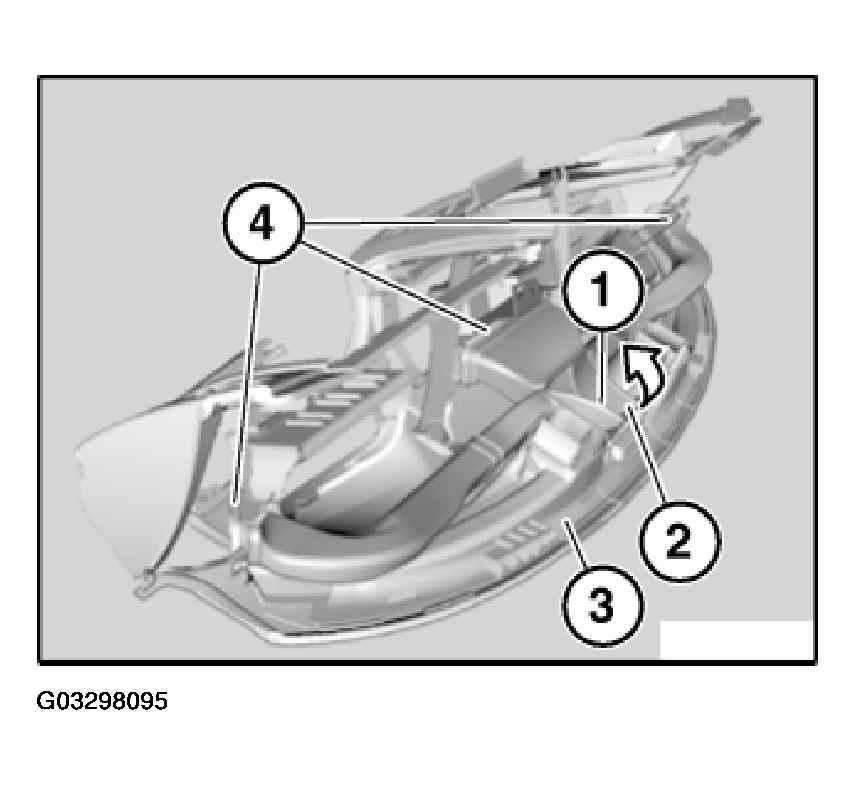

Unscrew bolt (1).

Remove complete three-part air duct (2) in direction of arrow from instrument panel trim (3).

Installation:

Make sure complete three-part air duct (2) is correctly seated in mountings (4).

Fig 4: Removing Three-Part Air Duct (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

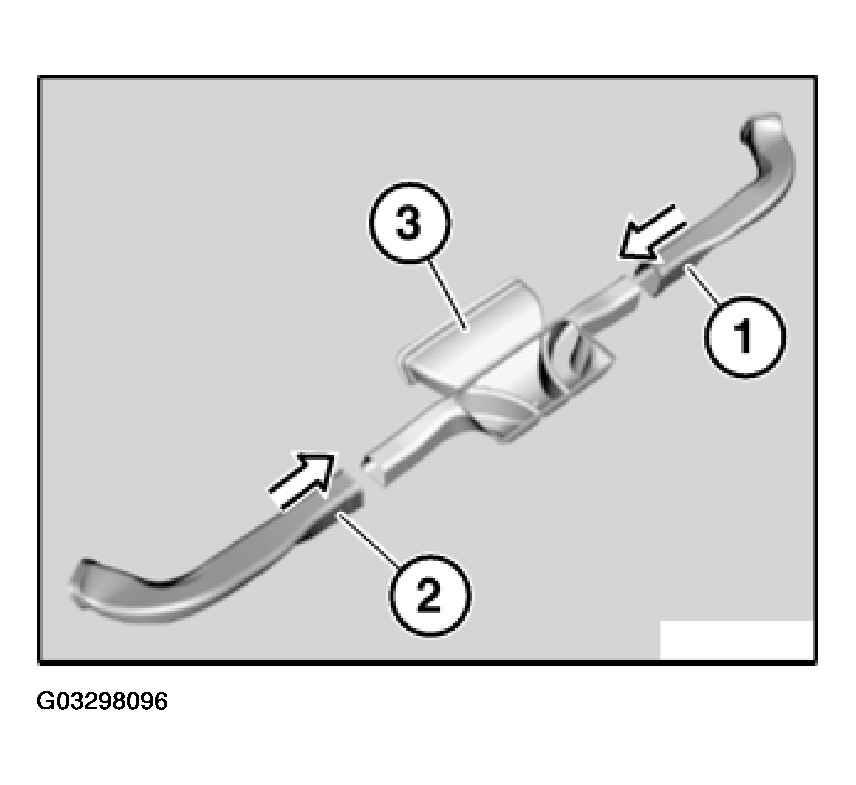

Make sure side air ducts (1) and (2) are correctly seated in middle air duct (3).

Fig 5: Making Sure Side Air Ducts (1 & 2)) Are Correctly Seated In Middle Air Duct (3)

Courtesy of BMW OF NORTH AMERICA, INC.

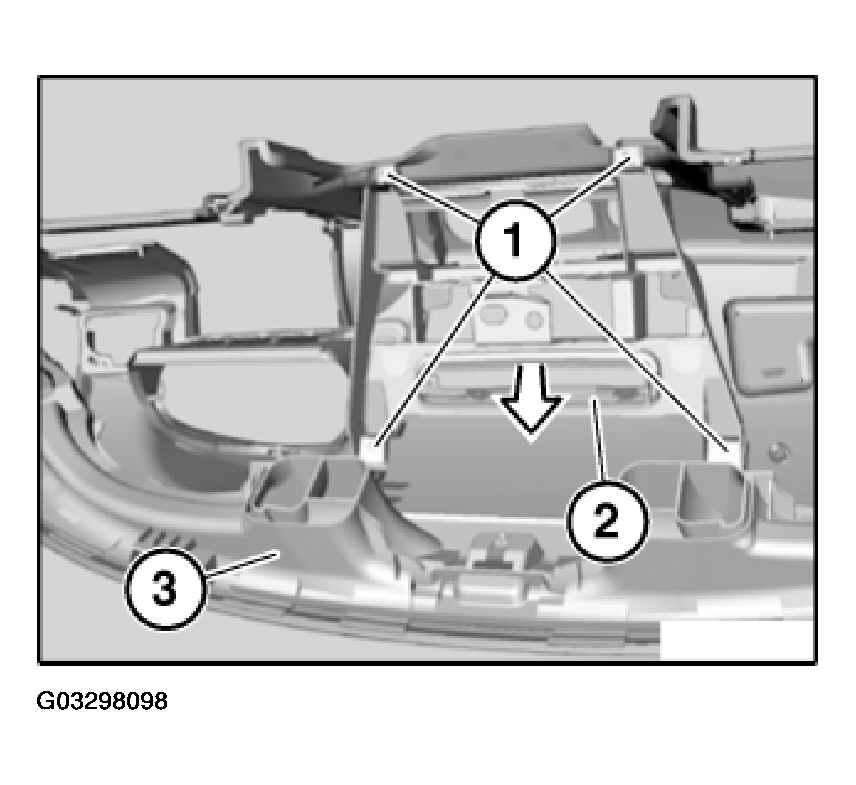

Unscrew nuts (1).

Remove frame for front passenger airbag (2) in direction of arrow from instrument panel trim (3).

Fig 6: Removing Frame For Front Passenger Airbag (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

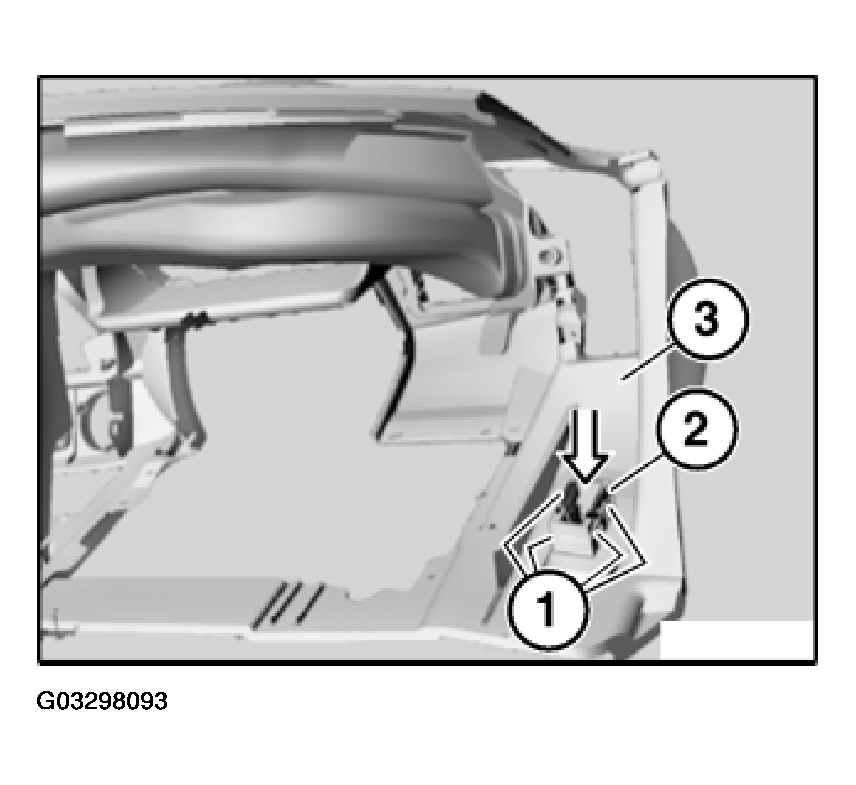

Release screws (1).

Remove frame (2) in direction of arrow from instrument panel trim (3).

Fig 7: Removing Frame In Direction Of Arrow From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

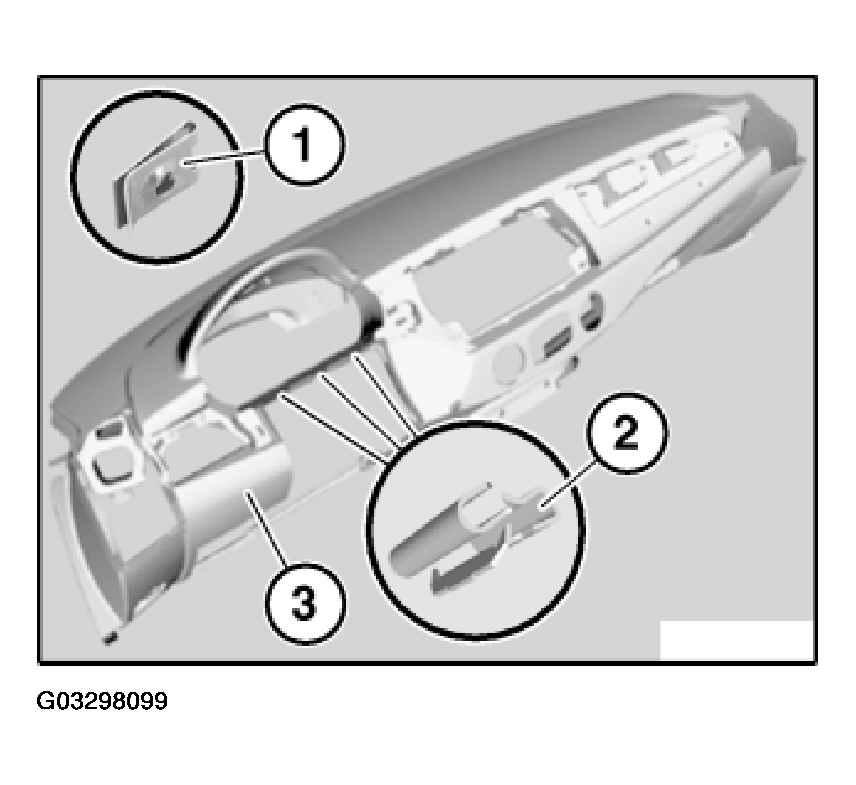

Remove all metal nuts (1) and retainers (2) from instrument panel trim (3).

Fig 8: Removing All Metal Nuts (1) And Retainers (2) From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
