51 23 160 Removing and installing/replacing arrester hook on engine hood

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Raise bonnet/hood lid. Release screws (1) and remove arrester hook (2). Tightening torque, see 51 23 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

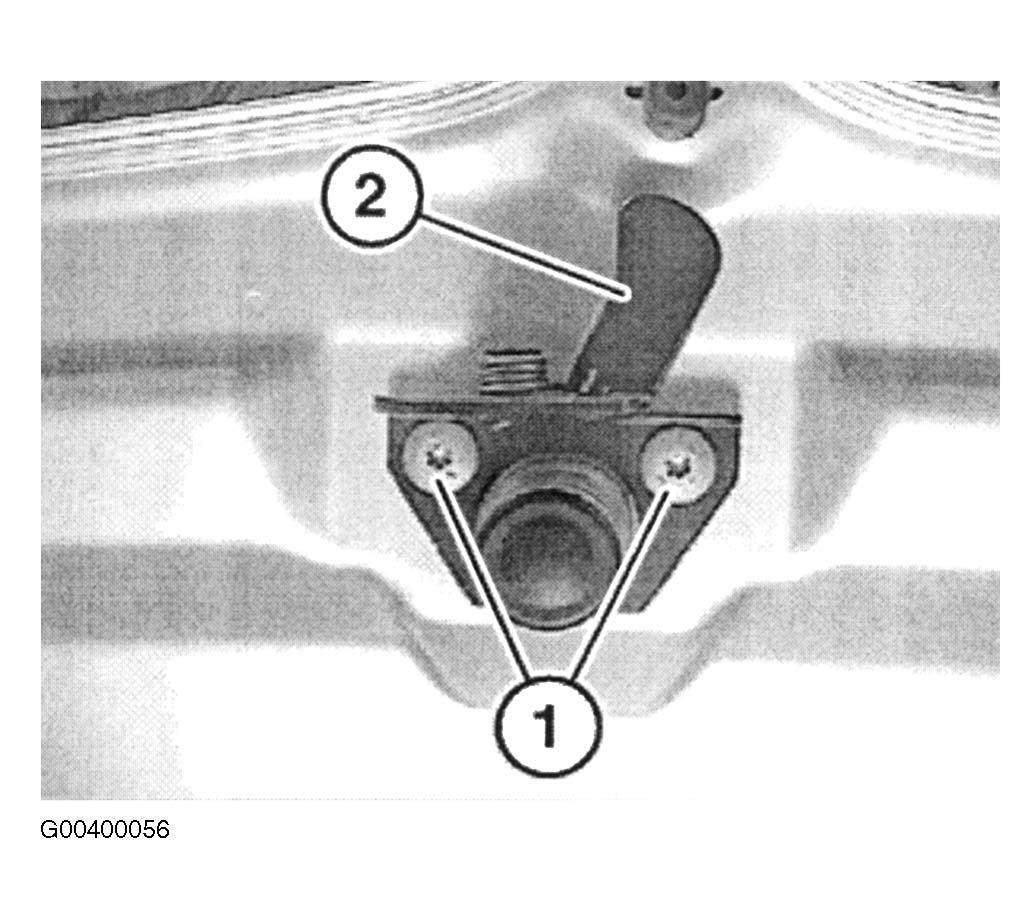

Fig 1: Removing Arrester Hook On Engine Hood

Courtesy of BMW OF NORTH AMERICA, INC.
