21 2 240 Grease scraper ring

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

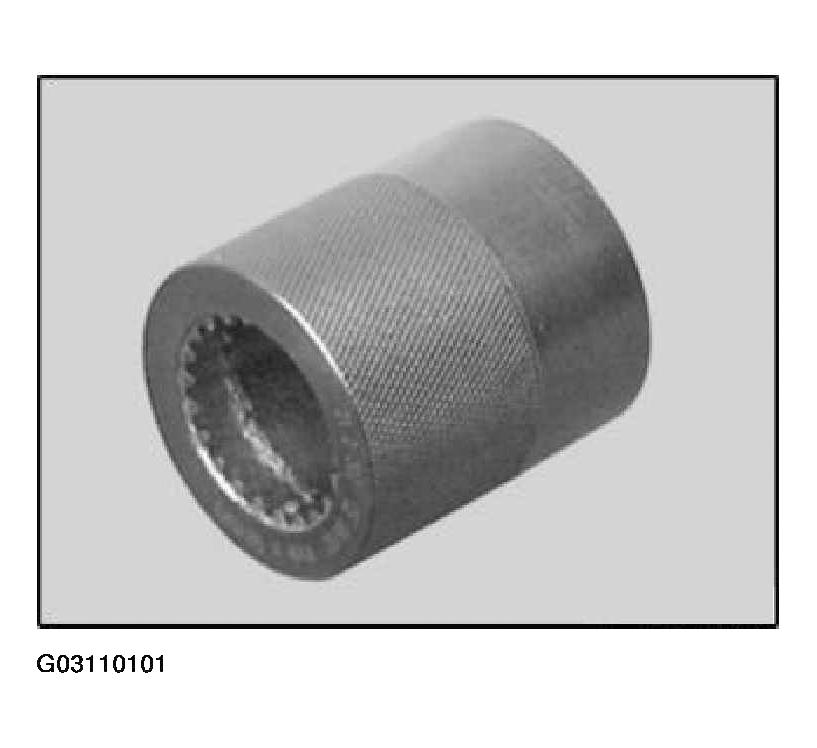

Fig 1: Identifying Mechanical Tools (21 2 240 Grease Scraper Ring)
G03110101Courtesy of BMW OF NORTH AMERICA, INC.
Grease Scraper Ring

Note: For scraping grease on spline shaft teeth of transmission input shaft (G-transmission)
Transmission: GS6-53BZ, GS6-53DZ
Storage
location:
A47
SI number: 1 03 03 (960)
Order number: 21 2 240
Grease scraper ring
