21 2 200 Clutch centering tool
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools

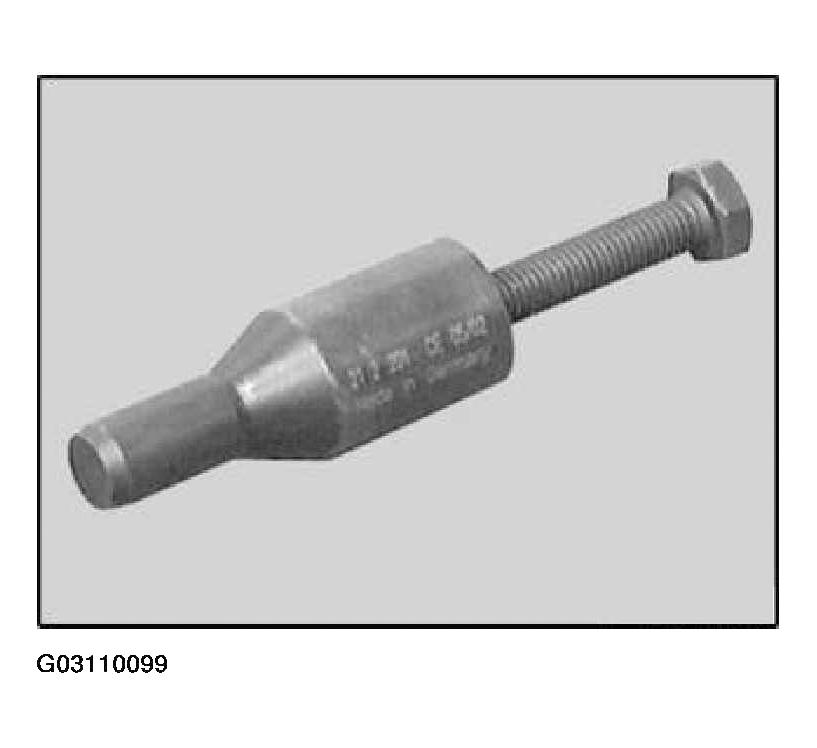

Clutch Centering Tool
| Note: | For centering clutch plate during installation. H-transmission |
| Transmission: | GS6-37BZ, GS6-37DZ |
| Storage location: | B44, C44 |
| SI number: | 01 10 02 (907) |
| Order number: | 21 2 200 Clutch centering tool |
| Consisting of: 1 =21 2 201 |
Clutch centering tool |
| Note: With M10 screw Transmission: GS6-37BZ / DZ (H-transmission) |
