21 2 180 Locating ring
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools

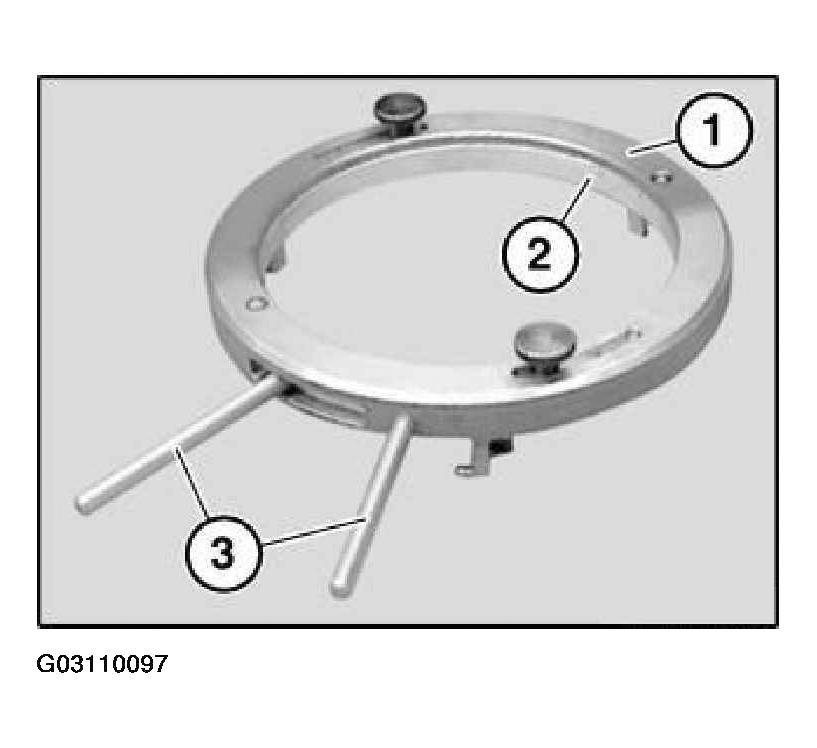

LOCATING RING
| In conjunction with: | 21 2 170 |
| Note: | For locating and resetting adjustment ring of SAC clutch on all 6- and 8-cylinder engines. |
| Series: | E34, E36, E38, E39, E46, E52, E53, E60, E85 |
| Storage location: | A44 |
| SI number: | 1 16 00(622) |
| Order number: | 21 2 180 Locating ring |
| Consisting of: 1 = 21 2 181 |
Outer ring |
| 2 = 21 2 182 | Inner ring |
| 3 = 21 2 183 | Pin set |
