21 2 170 Tensioning tool
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
TENSIONING TOOL
| In conjunction with: | 21 2 180, 21 2 190, 21 2 141, 21 2 142 |
| Note: | For resetting adjustment ring and installing self adjusting clutch (SAC) on flywheel without tension. |
| Series: | E34, E36, E38, E39, E46, E52, E53, E60, E61, E85, E87 |
| SI number: | 1 16 00(622) |
| Order number: | 21 2 170 Tensioning tool |

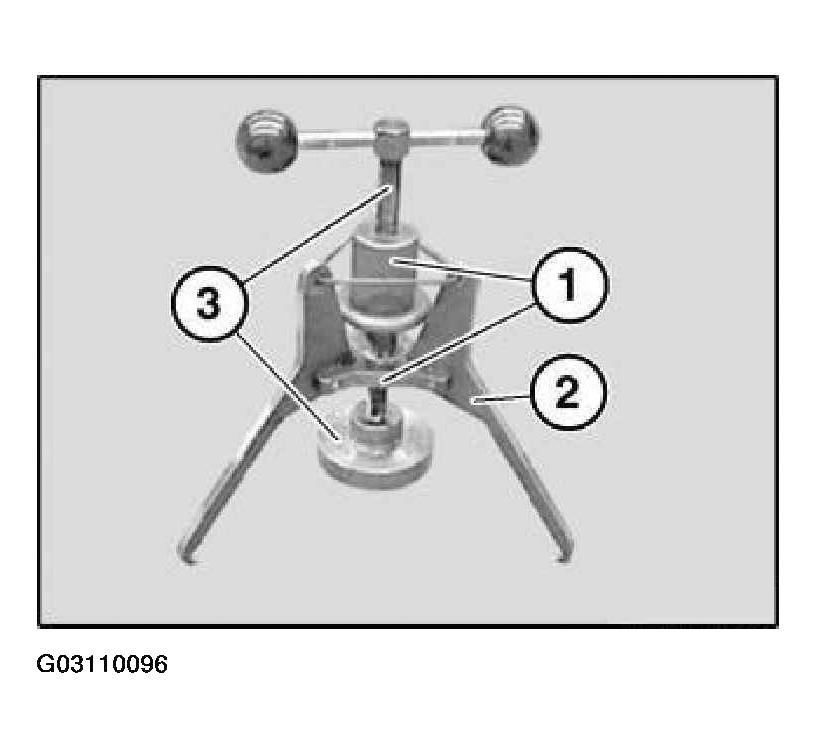

| Consisting of: 1 = 21 2 171 |
Star with adjusting spindle |
| 2 = 21 2 172 | Clamping claw (1 x) |
| 3 = 21 2 173 | Pressure spindle with disk |
