32 4 000 Fixture

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For checking pump pressure in power steering system

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91

Order number: 32 4 000

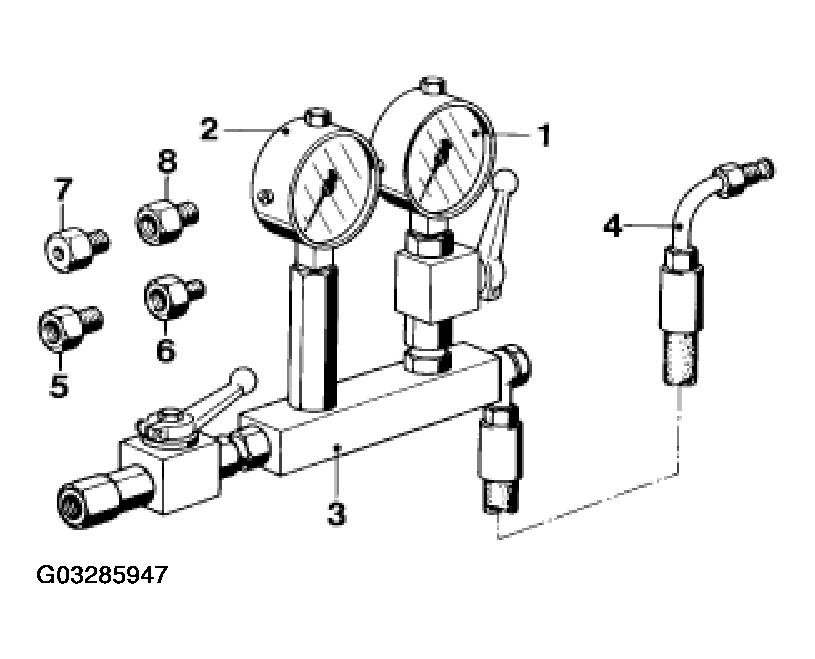

Fig 1: Identifying Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Fixture

Consisting of:

1 = 32 4 001 Pressure gauge 16 bar

2 = 32 4 002 Pressure gauge 160 bar

3 = 32 4 003 Test fixture without pressure gauge

4 = 32 4 004 Line

5 = 32 4 005 Connecting piece

NOTE: For screwing into hydraulic pump / model series: E23, E46, E52, E53, E64, E65, E66, E85

6 = 32 4 006 Connecting piece

NOTE: For screwing into test fixture 32 4 003 / model series: E23, E46, E52, E53, E64, E65, E66, E85

7 = 32 4 007 Connecting piece M18 x 1.5

NOTE: For screwing into pressure regulator / model series: E32, E34

8 = 32 4 008 Connecting piece M14 x 1.5

NOTE: For screwing into test fixture / model series: E32, E34

9 = 32 4 009 Ball valve

11 = 32 4 011 Adapter M14 x 1.5

12 = 32 4 012 Adapter M16 x 1.5
