Removal & Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Release nut and remove control arm from axle support. See Figure.

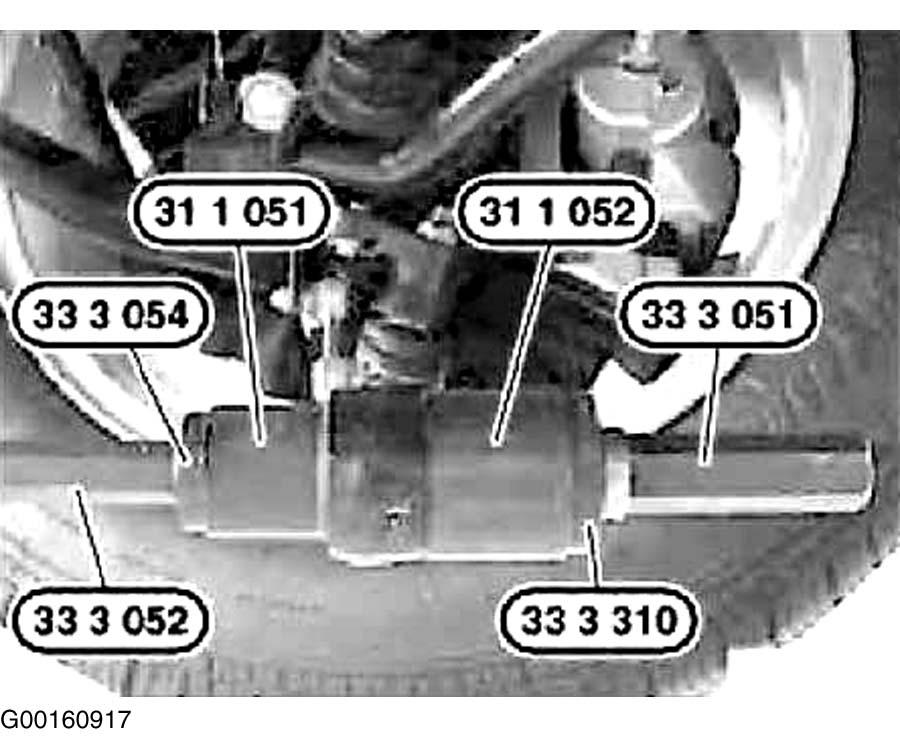

- Tie control arm back with wire. This prevents ball joint form being damaged. Remove rubber mount with special tools (31 1 051/052) and (33 3 051/052/054/310). See Fig 1.

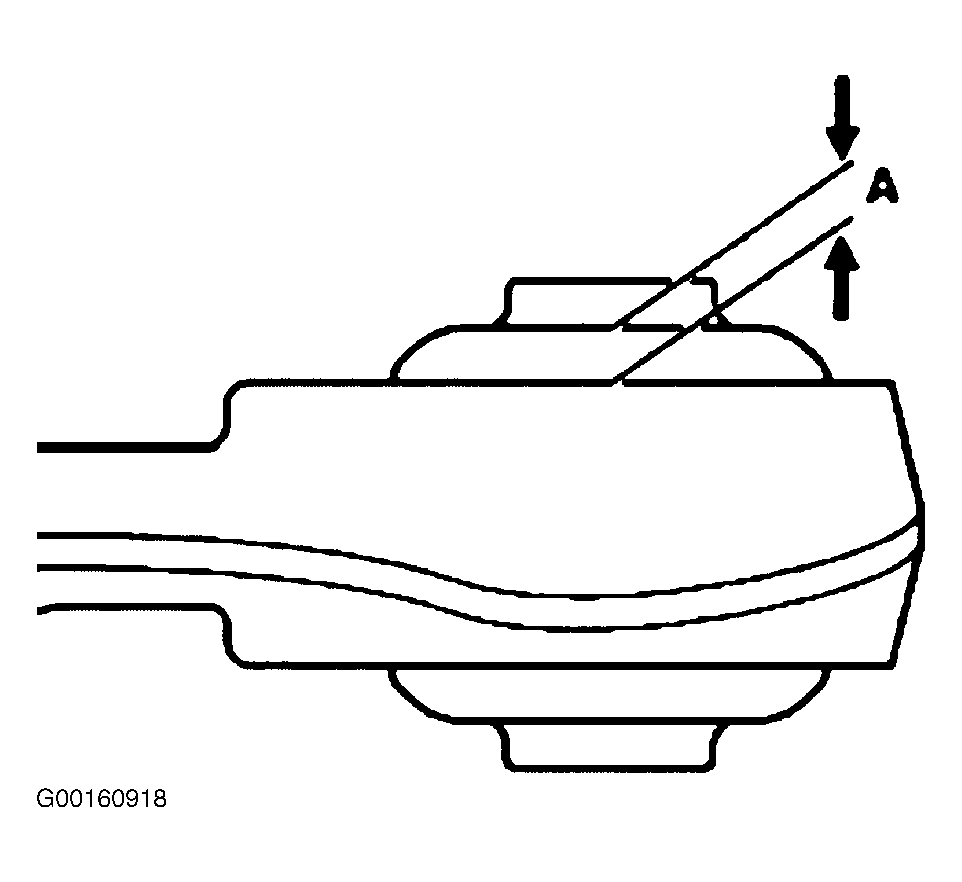

- Ensure rubber mount and control arm bore are free of grease. Draw in rubber mount from chamfered side of control arm bore. Protrusion (A) is 5.68-5.82 mm. See Fig 2.
- Install control arm, replace self-locking nut and tighten to specification. See TORQUE SPECIFICATIONS .
- Check and adjust front wheel alignment. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES under ADJUSTMENTS.
