Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Detach sealing strips (1). See Fig 1.
Turn toggles through approximately 90 degrees. See Fig 2.
Lift out cover (1). Unfasten screws and pull out heater bulkhead (2). See Fig 3.
Check rubber seals (1) on left and right and replace if necessary. Coat rubber seals (1) on left and right with rubber protection coating agent. Heater bulkhead is guided at sides with guide channels. Clean guide channels and coat with rubber protection coating agent. See Fig 4.
To install, reverse removal procedure.

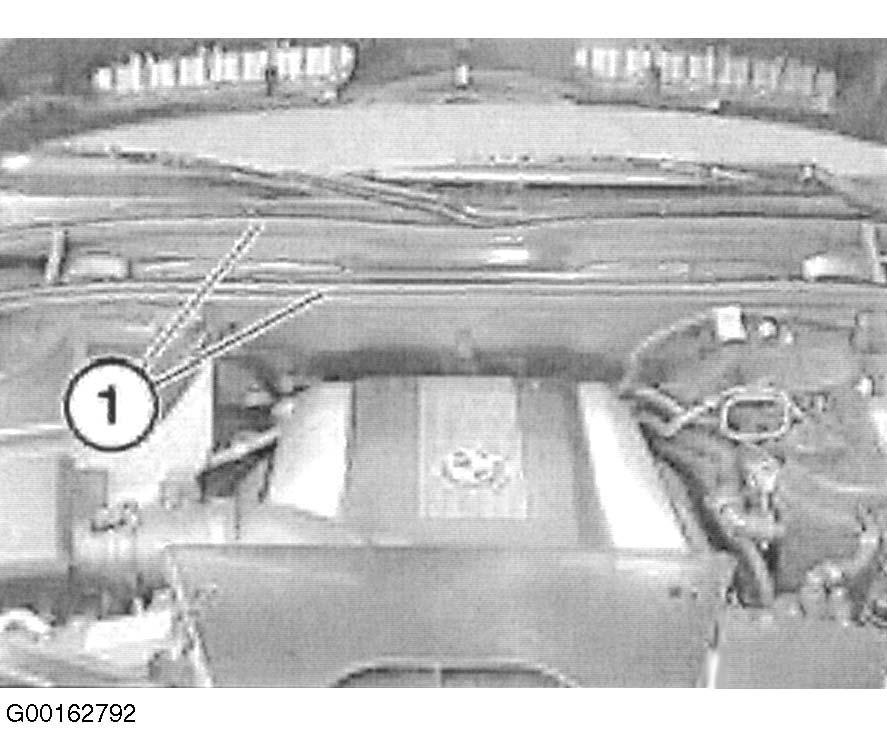

Fig 1: Locating Sealing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

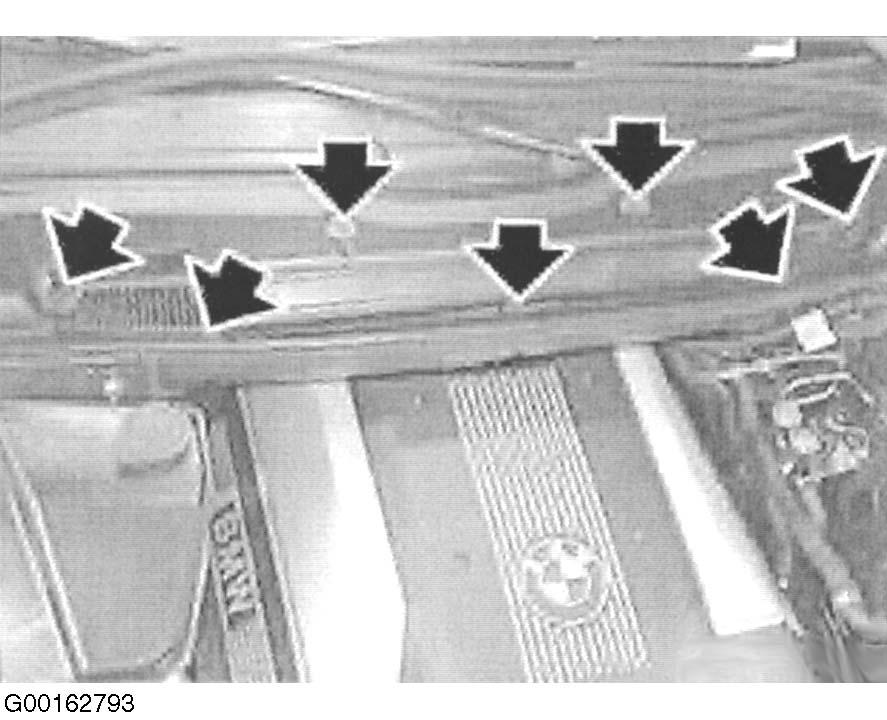

Fig 2: Locating Toggles

Courtesy of BMW OF NORTH AMERICA, INC.

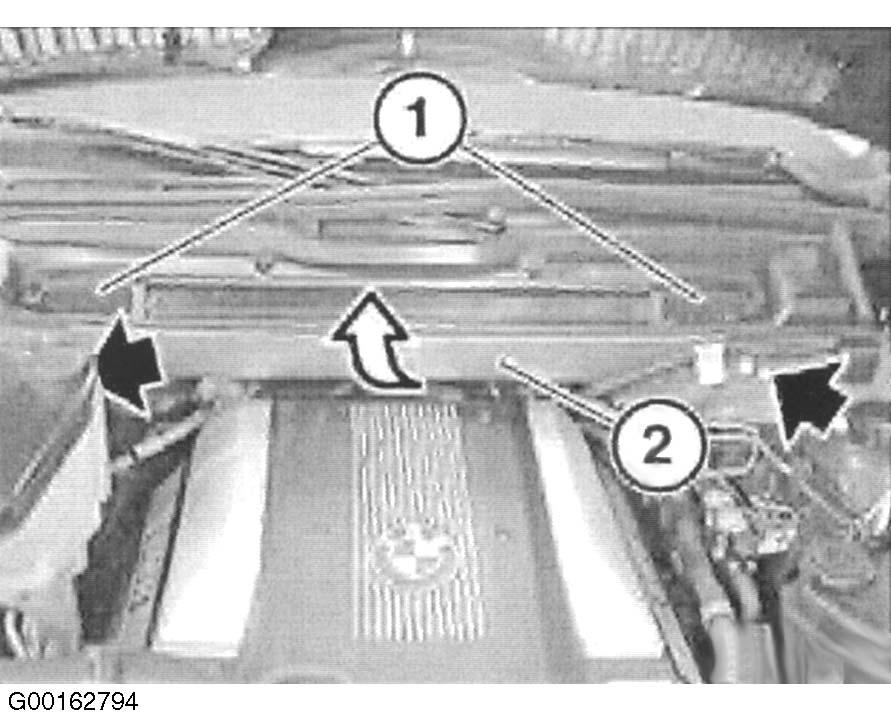

Fig 3: Removing Heater Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

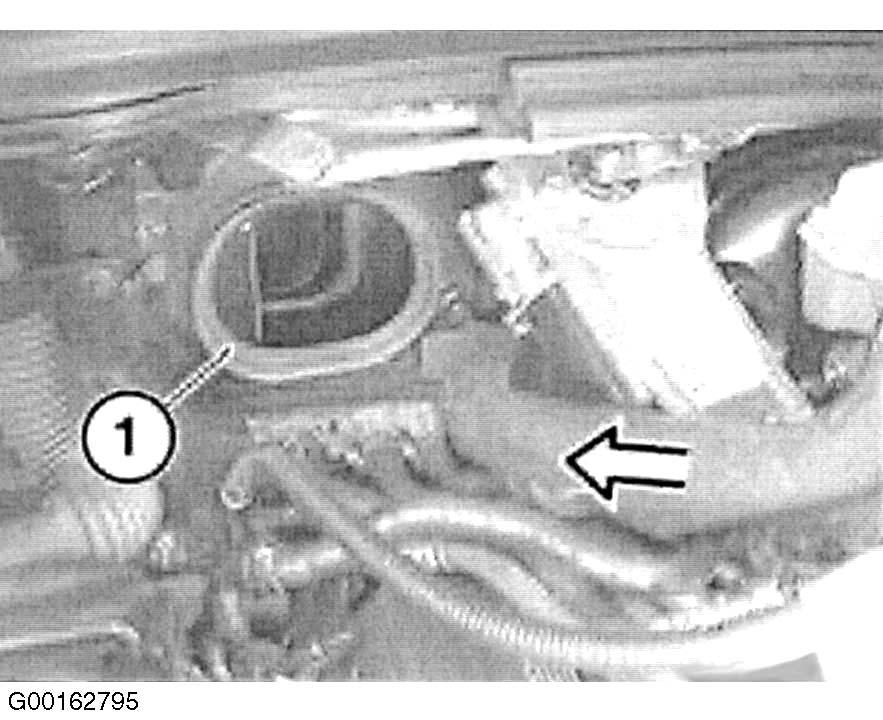

Fig 4: Locating Rubber Seals

Courtesy of BMW OF NORTH AMERICA, INC.
