63 10 014 Adjusting Fog Lamps

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe test preconditions for adjusting headlights. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

Build Date Up To 03/2005.

Adjust fog lamp (1) at adjusting screw (2).

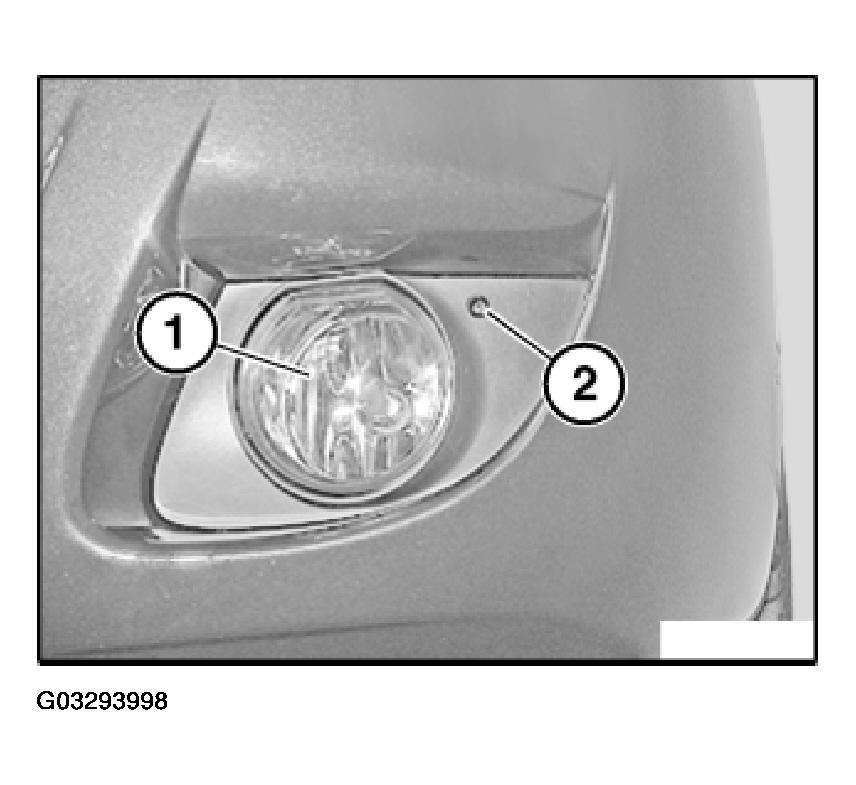

Fig 1: Fog Lamp And Adjusting Screw (Up To 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date From 03/2005.

Adjust fog lamp (1) at adjusting screw (2).

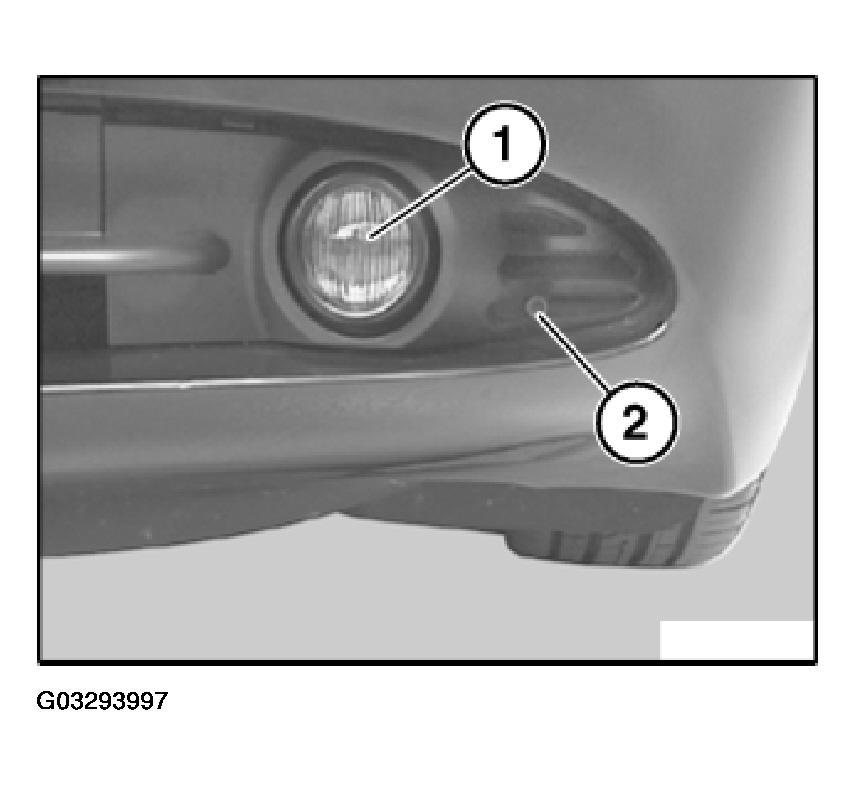

Fig 2: Fog Lamp And Adjusting Screw (From 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.
