Removal & Installation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe installation position of rubber mount in axle carrier. See Fig 1 .

Remove axle carrier assembly. See AXLE CARRIER ASSEMBLY .
Pull out rubber mount using special tool (00 8 550 and 33 3 107/111). See Fig 2 . If necessary, heat axle carrier with an industrial hot air blower.

NOTE: Only use rubber mounts of one single manufacturer.

Coat NEW rubber mount with Circolight. Pull in with special tool (33 3 103/104/112/115). See Fig 3 .
Install axle carrier assembly. See AXLE CARRIER ASSEMBLY .

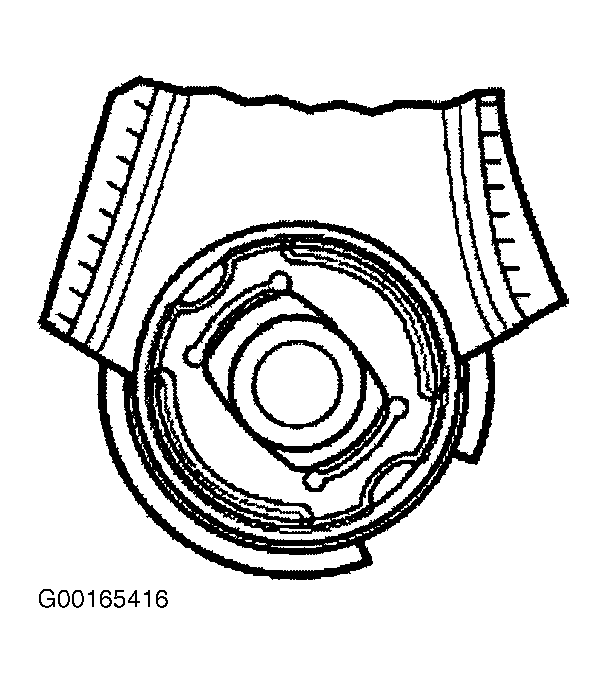

Fig 1: Observing Installation Position Of Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Subframe Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Installing Subframe rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.
