67 62 000 Removing and installing/replacing flat motor for front left or right power window unit

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release sound insulation on front door, refer to 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

Unfasten plug connection (1) and disconnect. Release screws (2).

Detach flat motor for power window unit (3) in direction of arrow from power window unit (4) and remove.

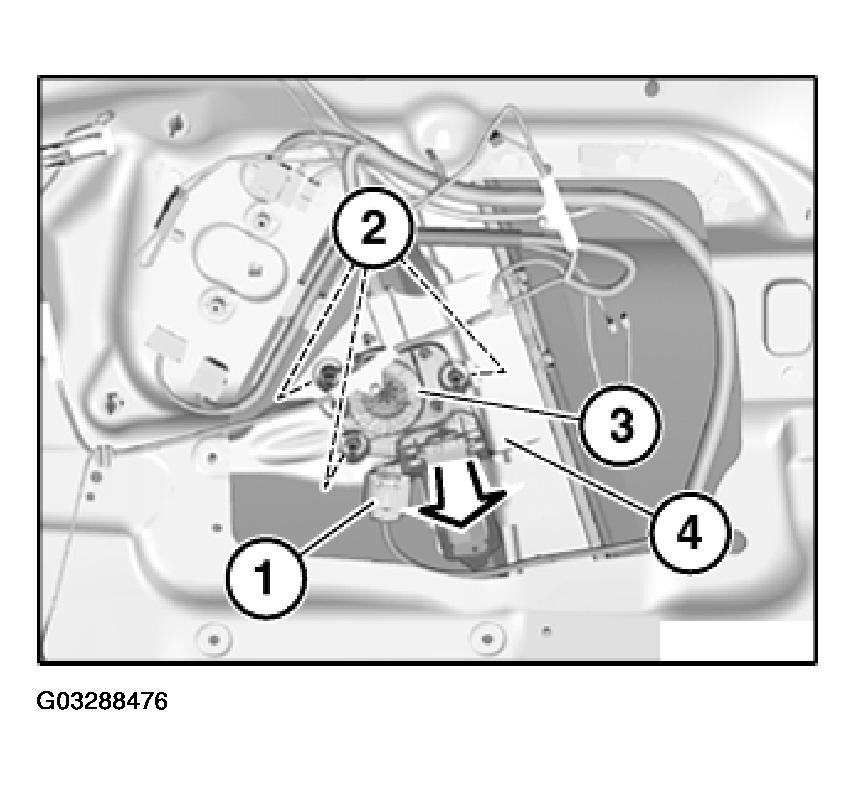

Fig 1: Detaching Flat Motor For Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

A normalization must be carried out in order to activate anti-trapping protection.

Operating sequence for normalization:

Open corresponding window completely.
Operate corresponding power window switch in "Close" position (second switch stage).
Once the upper end position has been reached, hold power window switch down for approx. 1 second more. Normalization is thus completed.

NOTE: Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
