67 11 610 Removing and installing/replacing servodrive in storage compartment

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect plug connections (1)

Disconnect Bowden cable (2).

Press in button (3) and lift storage compartment (4) out of centre armrest.

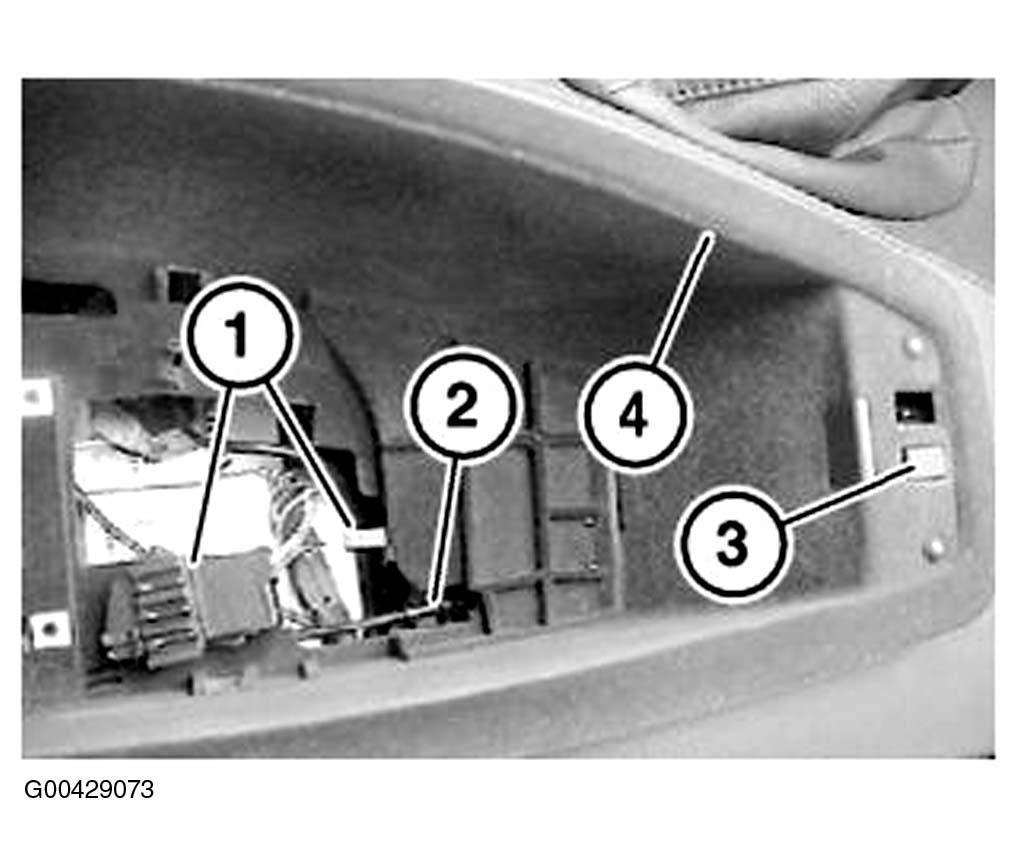

Fig 1: Pressing In Button (3) And Lifting Storage Compartment (4) Out Of Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable (1).

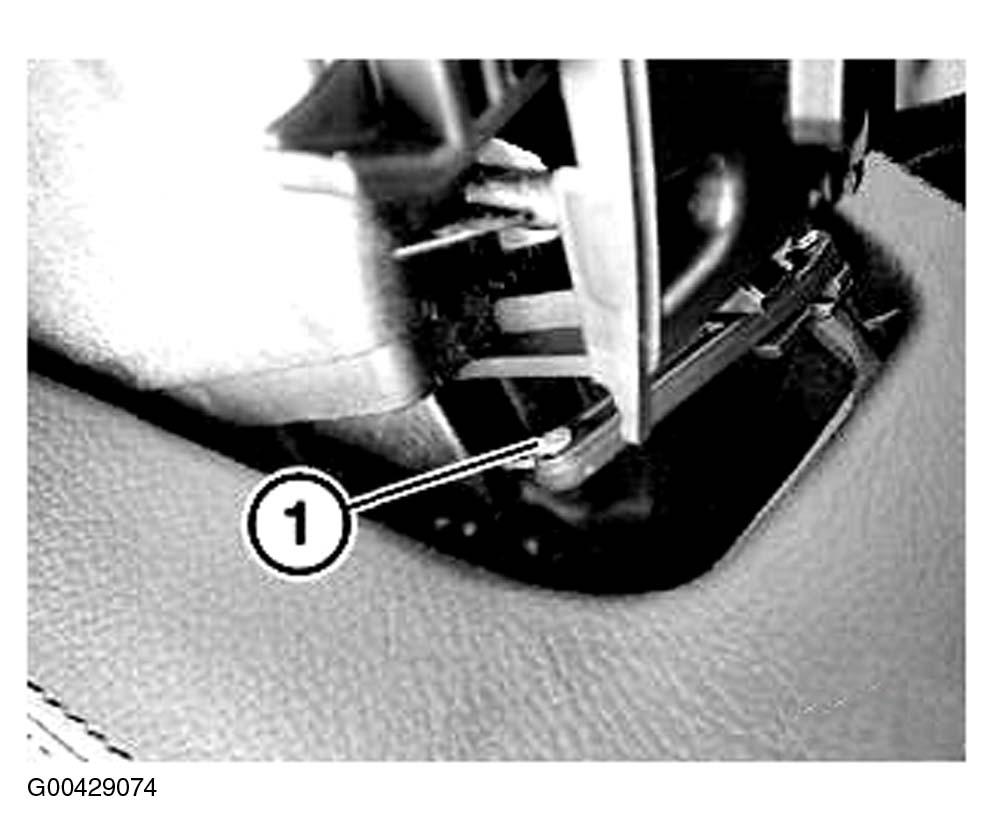

Fig 2: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing.

Release screws (1).

Pull servodrive (2) with locator (3) forwards from guide.

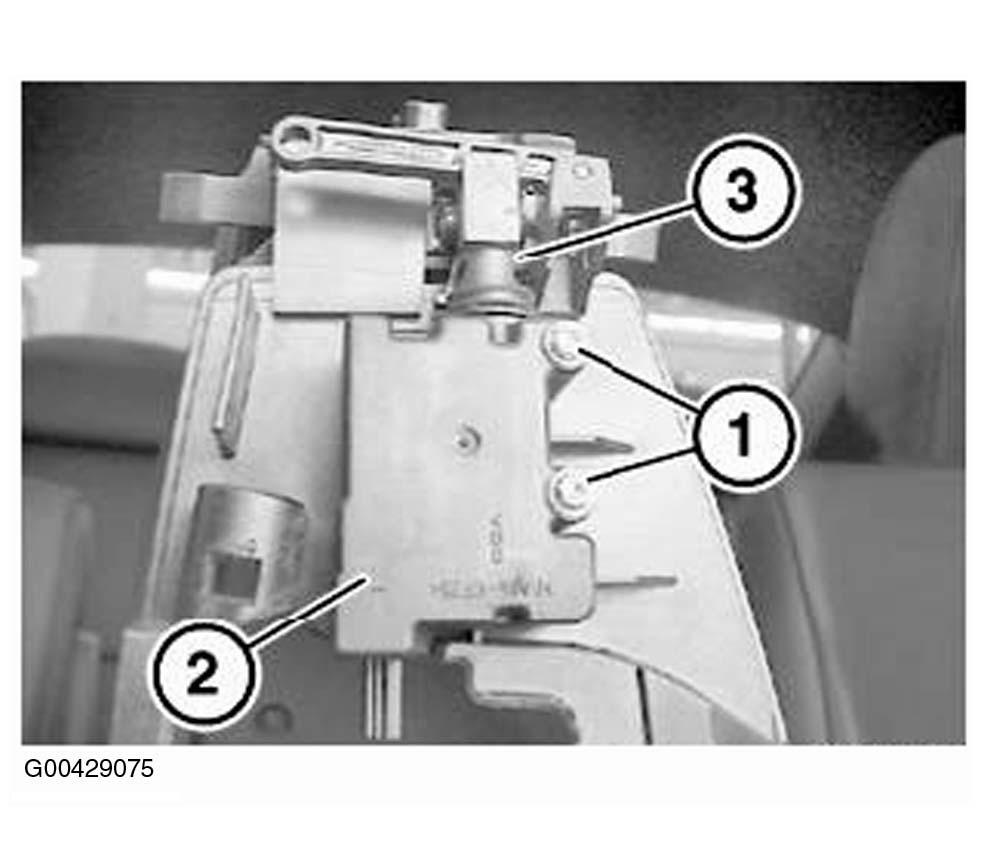

Fig 3: Identifying Servo Drive With Locator
