65 50 011 Removing and installing (replacing) video module for on-board monitor

WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

NOTE: Follow instructions for handling optical fibers, refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Release screws (1).

Pull holder (2) with devices forwards slightly in direction of arrow.

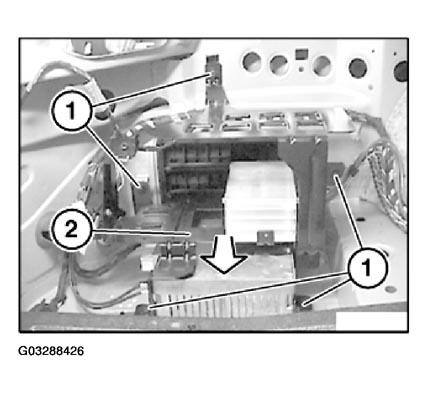

Fig 1: Pulling Holder With Devices

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Installation:

Do not mix up antenna connectors (2).

Mark antenna plugs (2) and disconnect.

Release screws (3).

Feed video module for on-board monitor (4) out of holder (5) and remove.

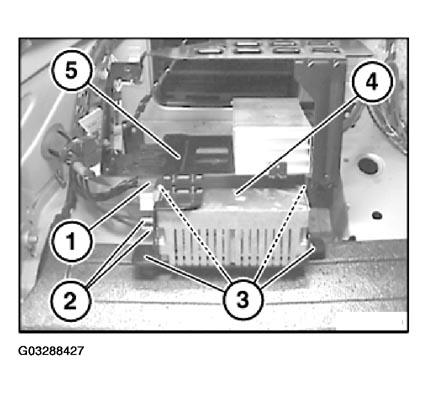

Fig 2: Releasing Screw Video Module For On-Board Monitor Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
