65 12 070 Removing and installing/replacing amplifier
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

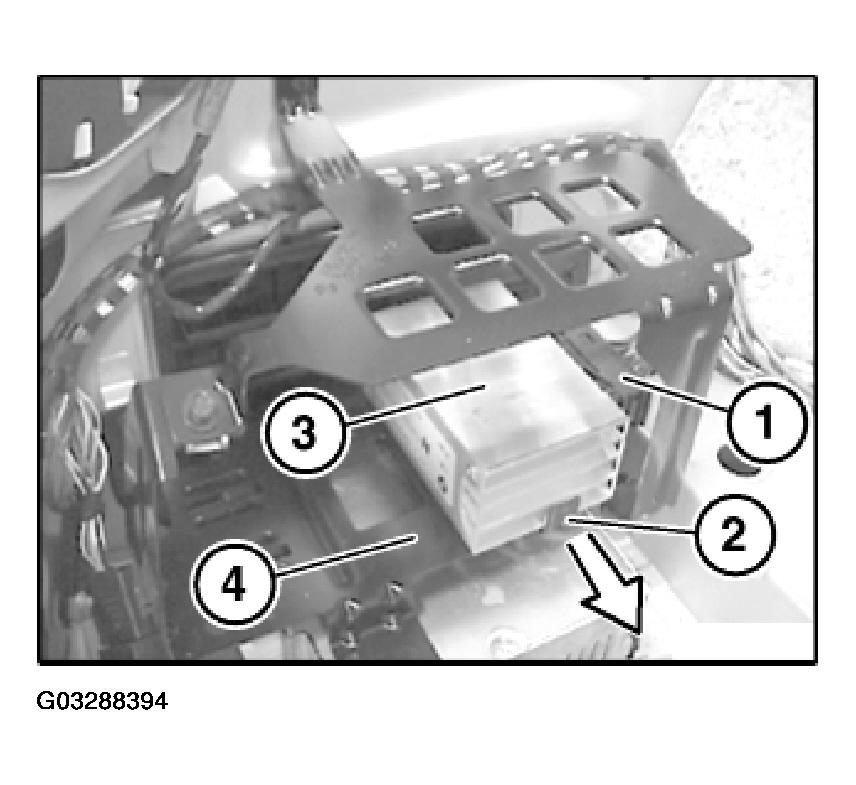

Unfasten plug connection (1) and disconnect.
Pull out retaining plate (2) in direction of arrow.
Installation:
Make retaining plate (2) is correctly seated.
Remove amplifier (3) from holder (4).
