65 12 050 Removing and installing/replacing left or right central bass speaker

WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat, refer to 52 16 000 REMOVING AND INSTALLING FRONT SEAT (SPORTS/ELECTRIC), LEFT OR RIGHT .
Remove front entrance cover strip, refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

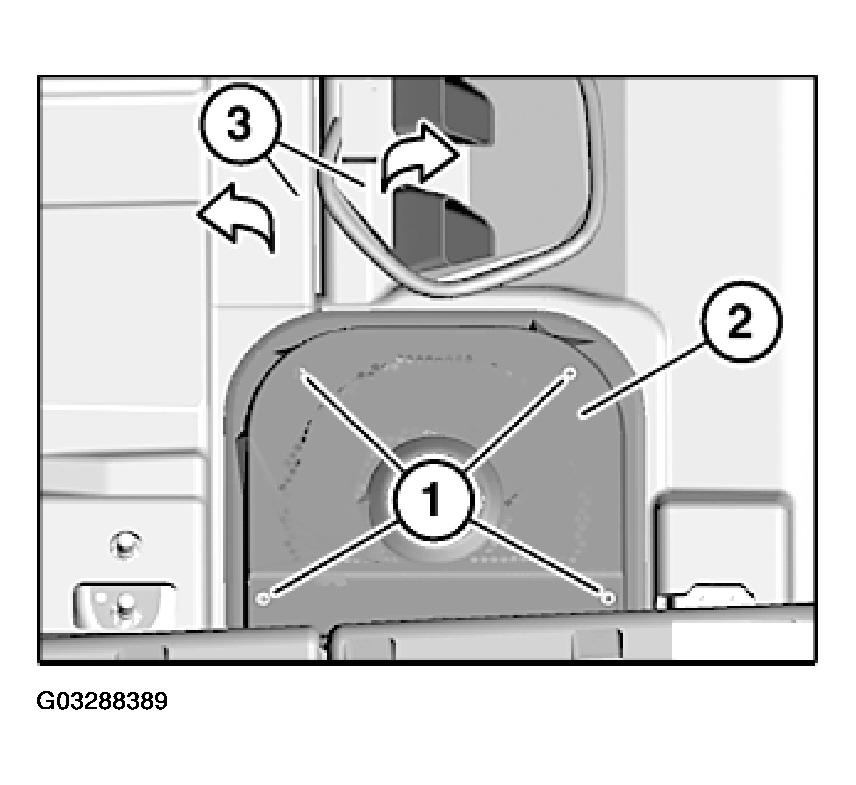

Release screws (1).

Remove bass speaker trim (2).

Fold back floor trims (3) in direction of arrow.

Fig 1: Removing Bass Speaker Trim

G03288389

Courtesy of BMW OF NORTH AMERICA, INC.

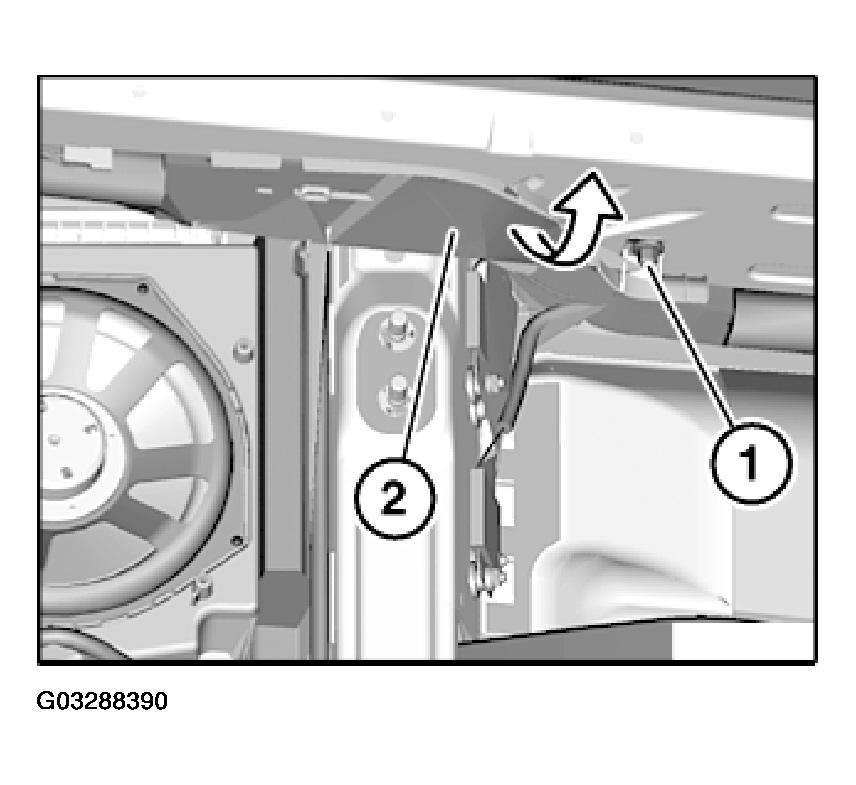

Unscrew nut (1).

Raise front entrance cable cover (2) in direction of arrow and lay to one side slightly.

Fig 2: Raising Front Entrance Cable Cover

G03288390

Courtesy of BMW OF NORTH AMERICA, INC.

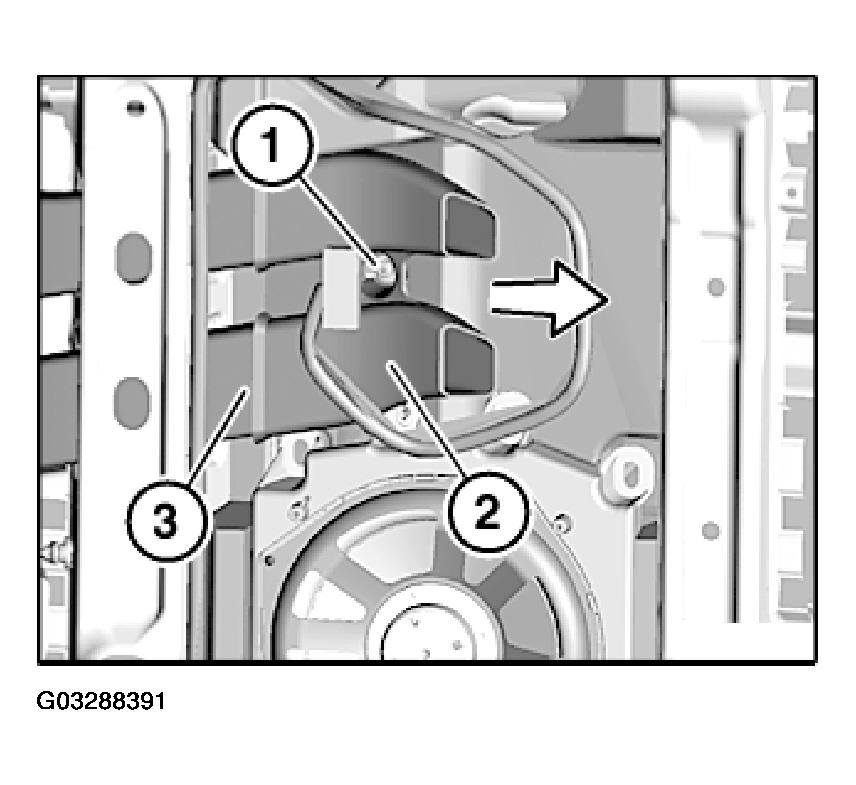

Unscrew nut (1).

Detach front heating duct for rear compartment (2) in direction of arrow from rear heating duct for rear compartment (3).

Fig 3: Detaching Front Heating Duct For Rear Compartment

G03288391

Courtesy of BMW OF NORTH AMERICA, INC.

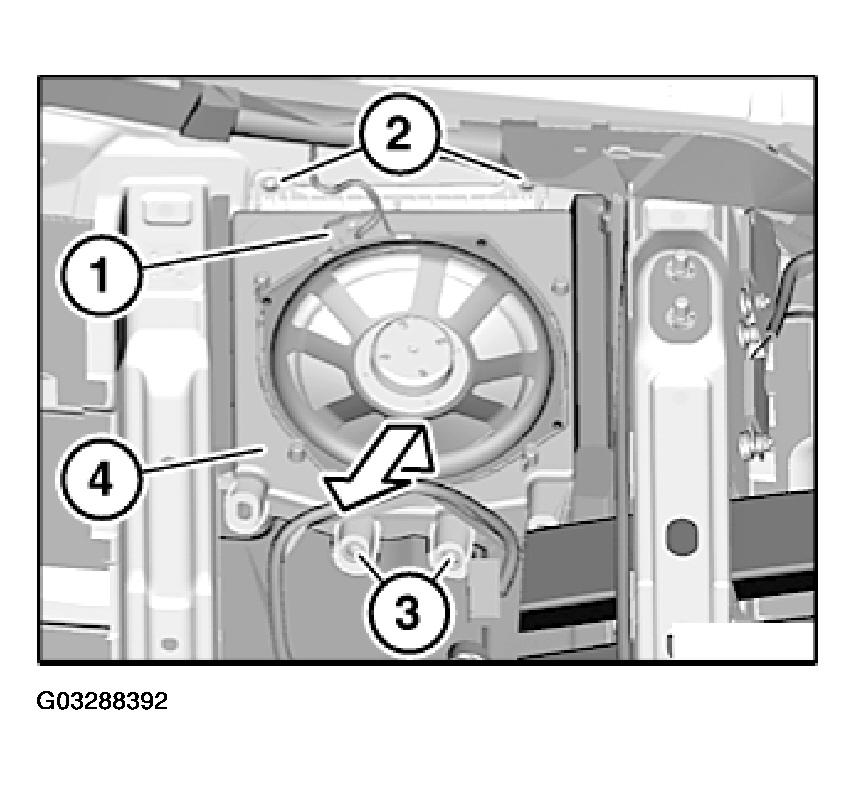

Unfasten plug connection (1) and disconnect.

Unfasten screws (2) and nuts (3).

Feed out central bass speaker (4) in direction of arrow and remove.

Fig 4: Feeding Out Central Bass Speaker

G03288392

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

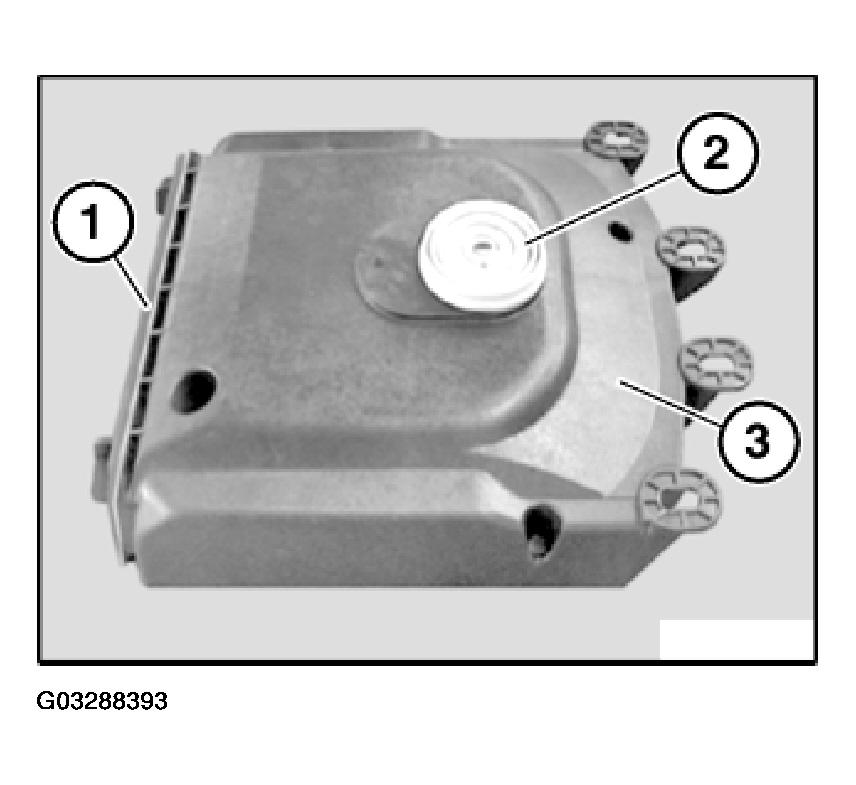

Make sure seal (1) and rubber damper (2) are correctly seated on central bass speaker (3).

Fig 5: Installing Seal And Rubber Damper

G03288393

Courtesy of BMW OF NORTH AMERICA, INC.
