65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to AUDIO, NAVIGATION & ANTI-THEFT - SPECIAL TOOLS - 645CI (E63) .

00 9 341

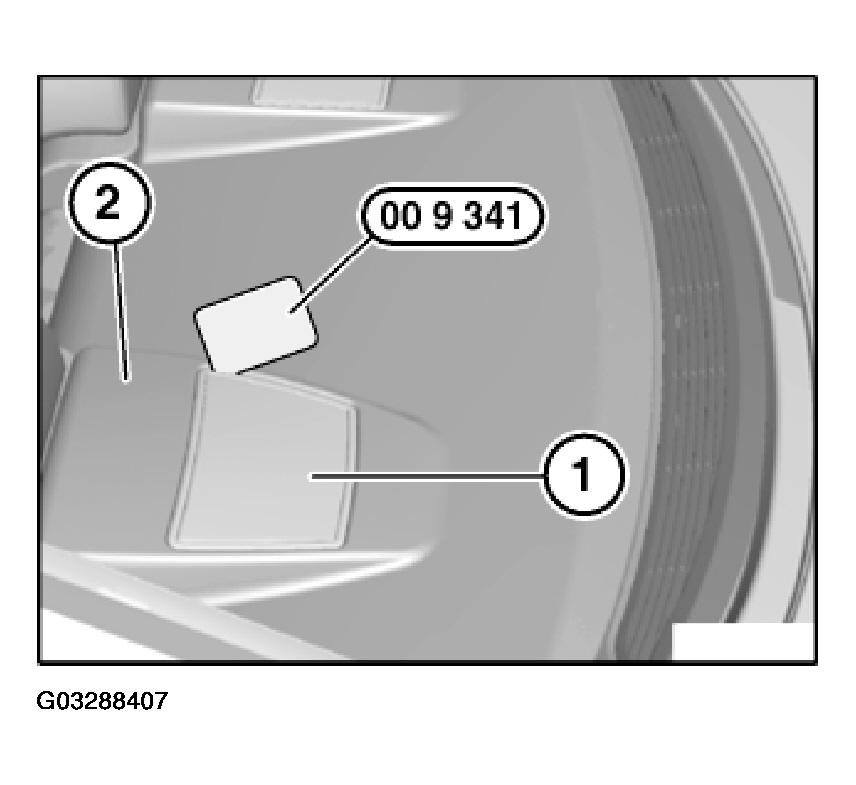

Lever speaker cover (1) with special tool 00 9 341 out of rear shelf (2).

Fig 1: Identifying Lever Speaker Cover With Special Tool 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

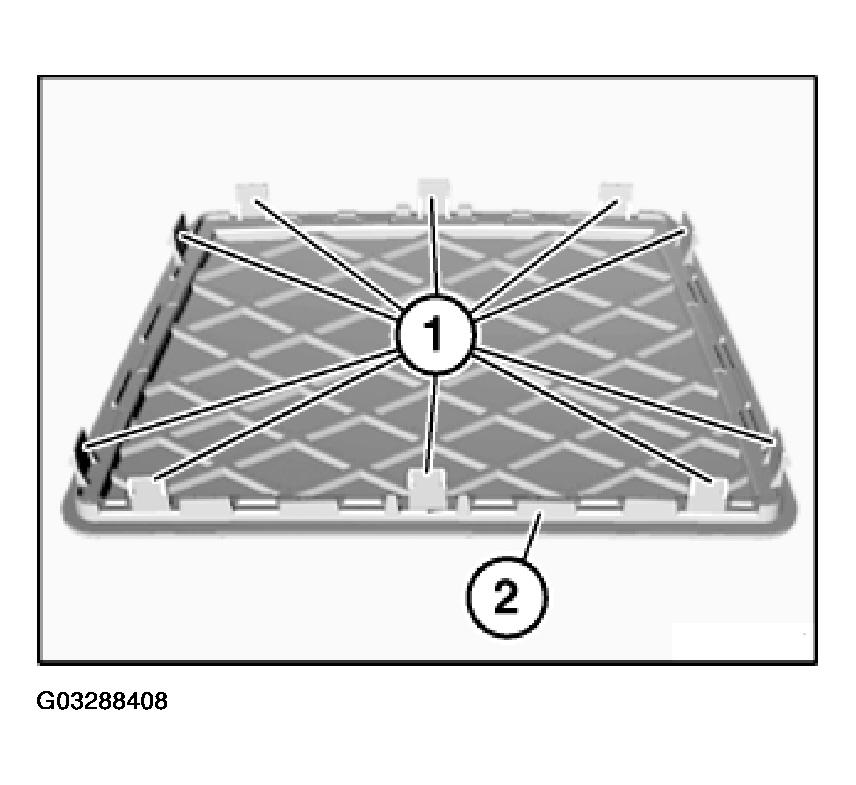

Locks (1) of speaker cover (2) must not be damaged.

Make sure speaker cover (2) is fully engaged.

Fig 2: Identifying Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

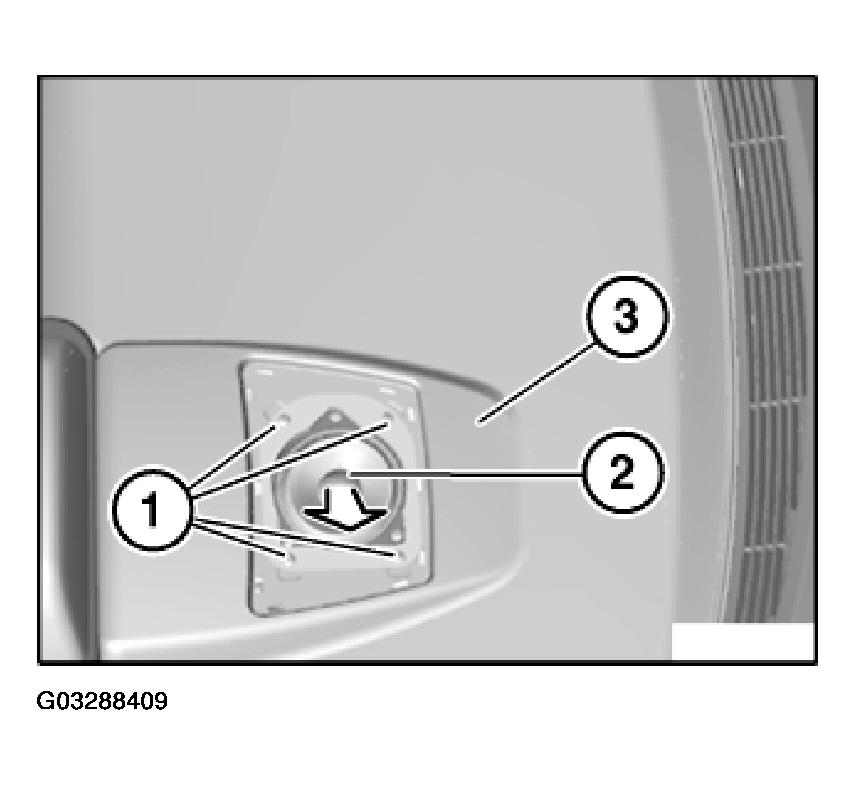

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connection and remove mid-range speaker (2).

Fig 3: Removing Mid-Range Speaker (2) Upwards From Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
