65 13 090 Removing and installing/replacing speaker (mid-range speaker in rear side trim panel)
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear side trim panel, refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

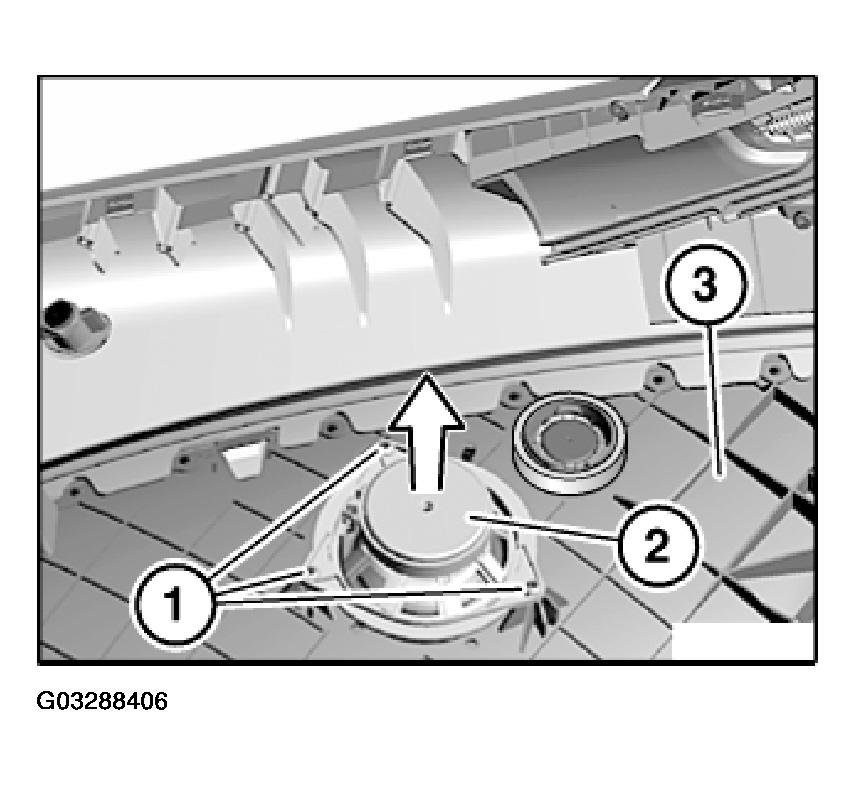

Release screws (1).
Remove speaker (2) in direction of arrow from rear side trim panel (3).
