65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove speaker frame, refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

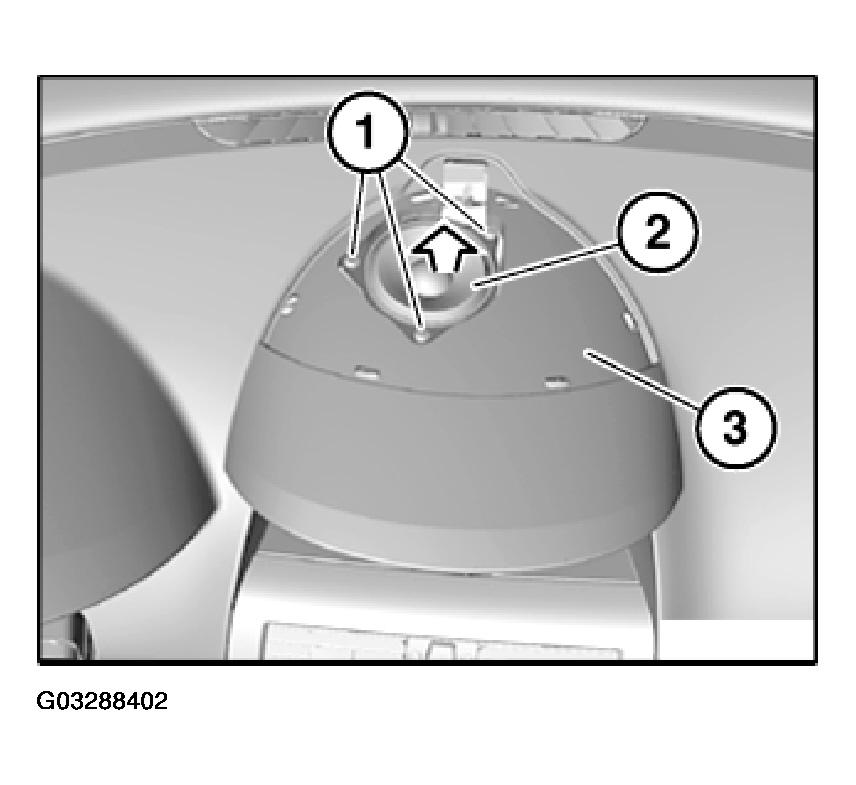

Release screws (1).
Lever speaker (2) slightly out of instrument panel (3) and disconnect associated plug connection.
Remove speaker (2).
