65 24 020 Removing and installing or replacing blocking circuit

WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear right head restraint, refer to 52 24 390 REMOVING AND INSTALLING / REPLACING REAR HEAD RESTRAINTS .
Remove panel for roof pillar at rear left, refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (CPILLAR) .

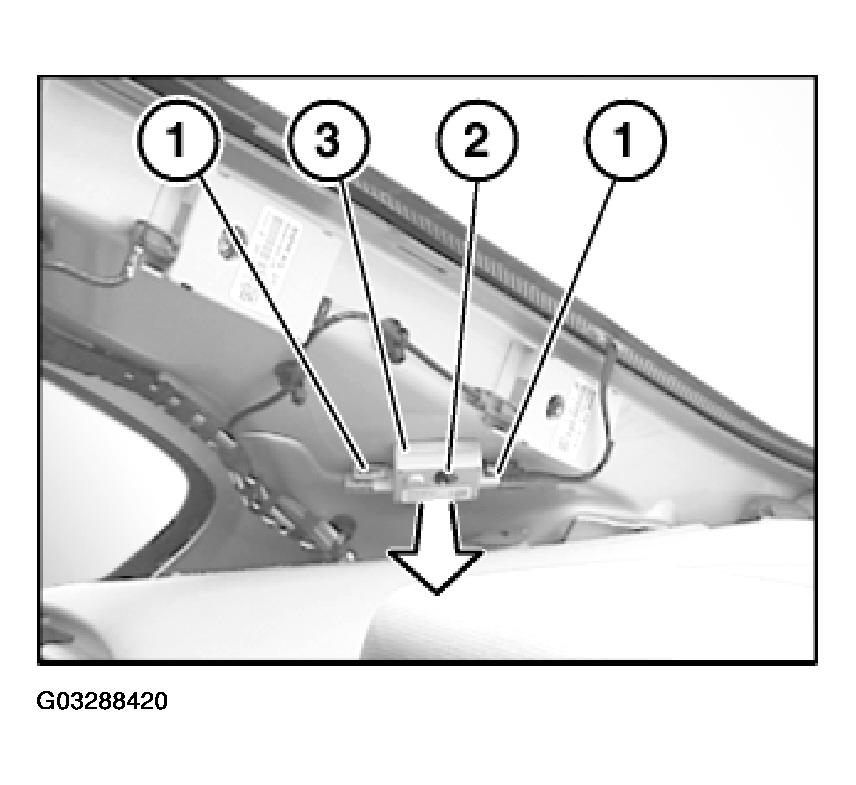

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3) in direction of arrow.

Fig 1: Removing Blocking Circuit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

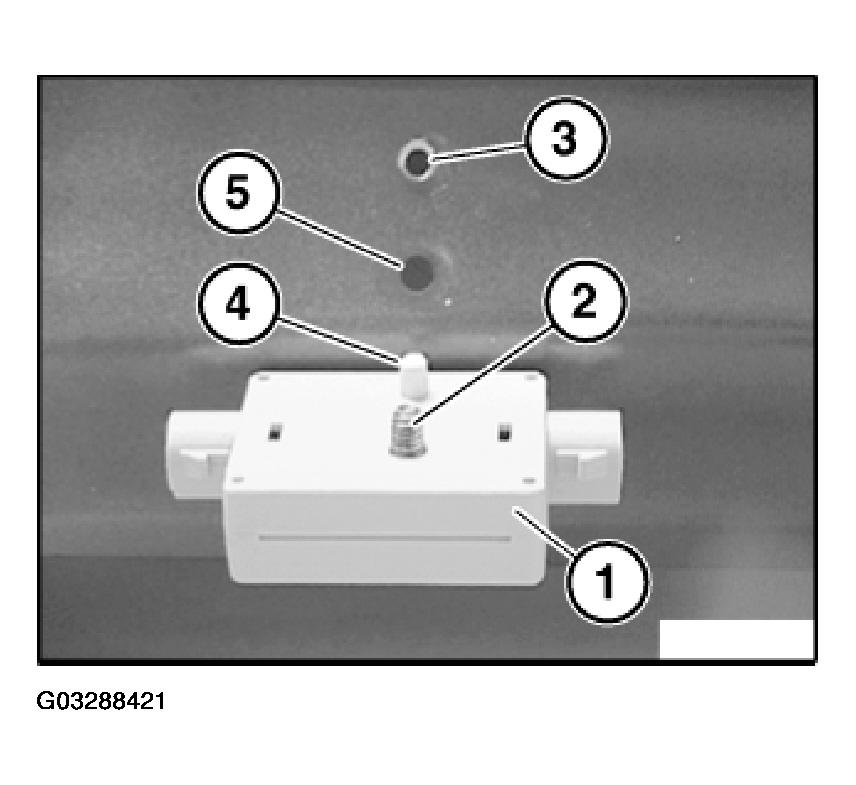

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

Fig 2: Installing Blocking Circuit So Screw Engages Thread

Courtesy of BMW OF NORTH AMERICA, INC.
