65 83 590 Removing and installing/replacing gyro sensor drive for Car Communication Computer

WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove Car Communication Computer, refer to 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .

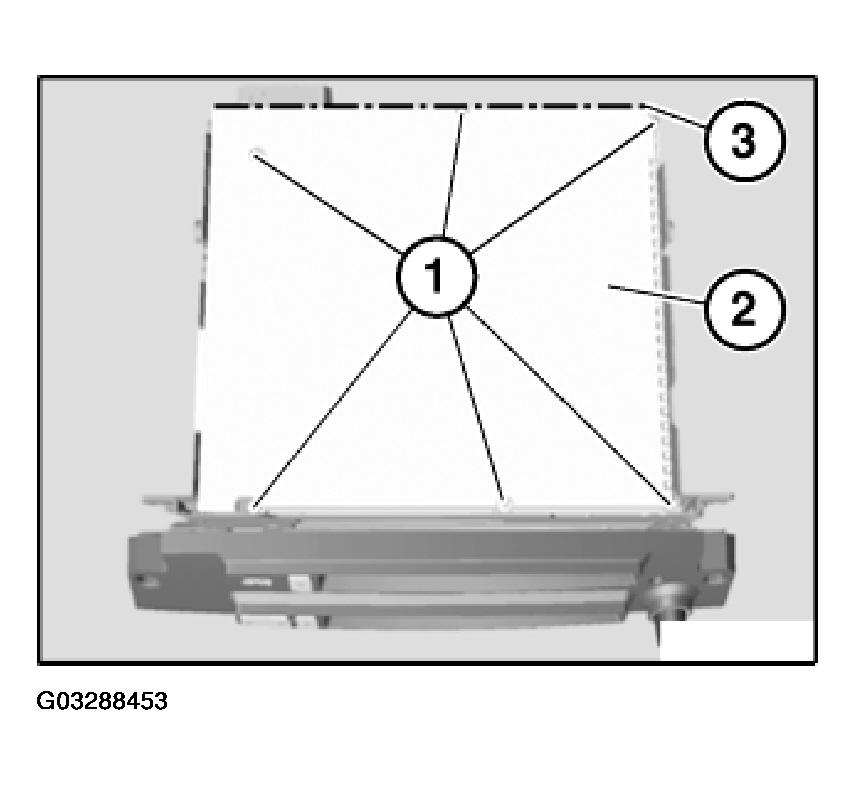

Release screws (1).

Remove floor pan (2) towards bottom and set down.

IMPORTANT: Contact spring strip (3) on floor pan (2) must not be bent: otherwise risk of short-circuiting! When reinstalling floor pan (2), make sure individual springs of contact spring strip (3) are correctly seated.

Fig 1: Removing Floor Pan Towards Bottom And Set Down

Courtesy of BMW OF NORTH AMERICA, INC.

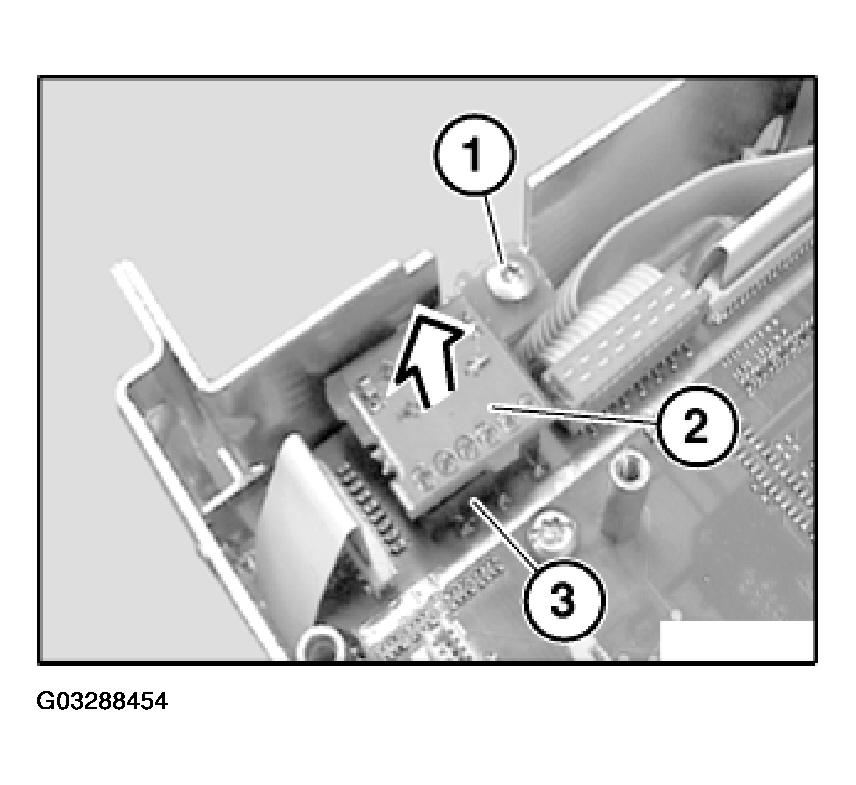

Release screw (1).

Detach gyro sensor for Car Communication Computer (2) in direction of arrow from plug-in contact (3).

Fig 2: Detaching Gyro Sensor For Car Communication Computer

Courtesy of BMW OF NORTH AMERICA, INC.
