65 77 730 Removing and installing (replacing) vehicle center sensor
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
WARNING:
Note airbag safety instructions! Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
. Incorrect handling can activate airbag and cause injury.
NOTE:
Follow instructions for handling optical fibers, refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Remove luggage compartment floor trim, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
- Remove center console, refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

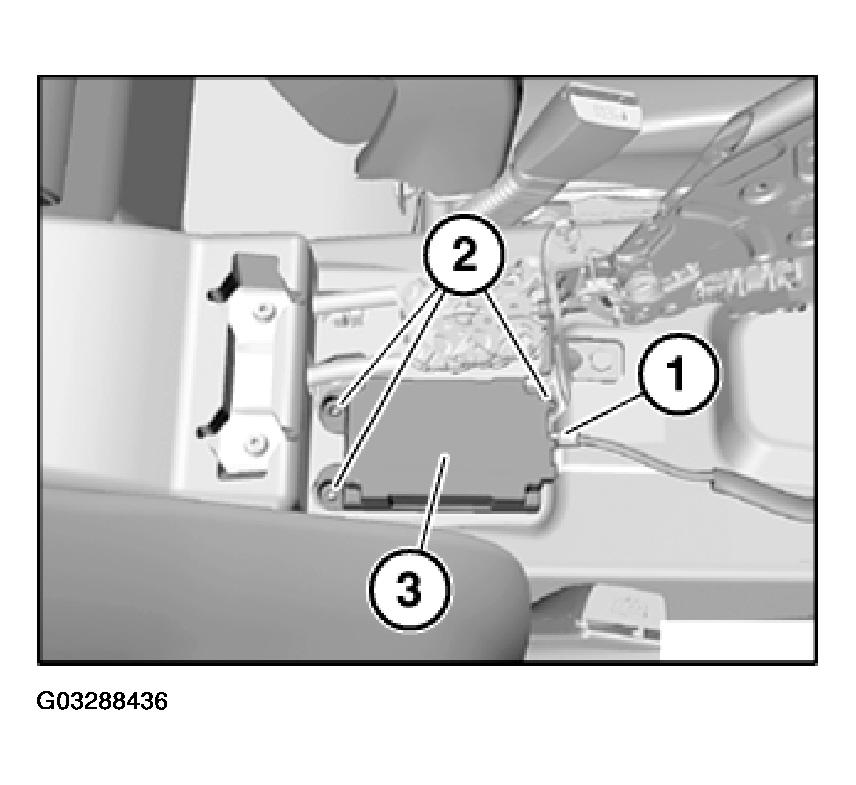

Unfasten plug connection (1) and disconnect.
Release screws (2), tightening torque, refer to 65 77 6AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING .
Remove vehicle center sensor (3).
Replacement:
Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
