65 20 320 Removing and installing/replacing multiple-band antenna
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove panel for rear lid, refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

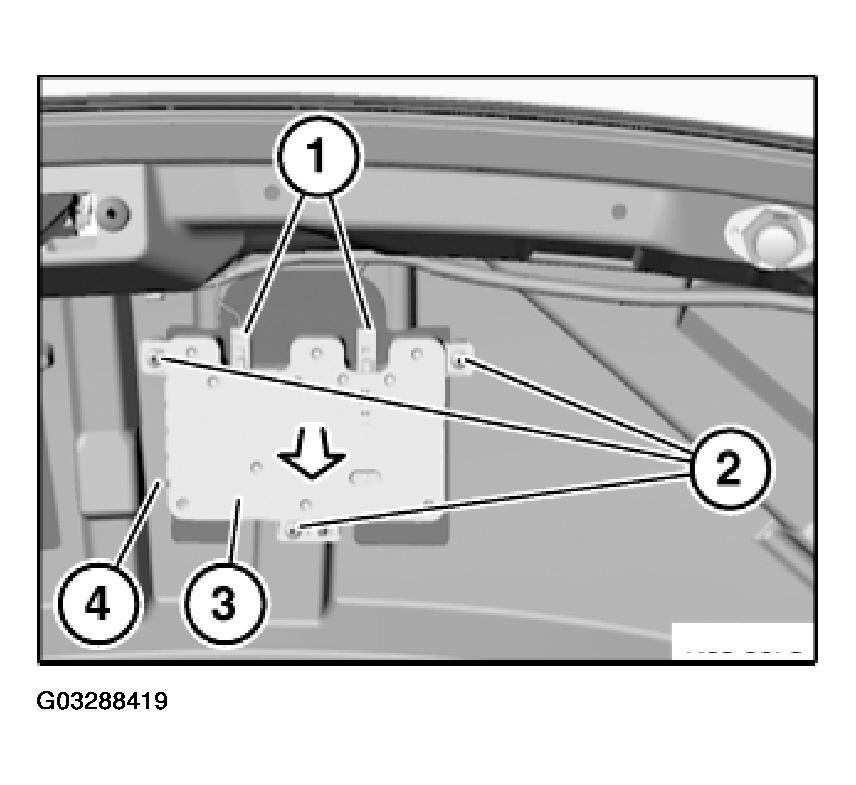

Unlock plug connections (1) and disconnect.
Release screws (2).
Remove multiple-band antenna (3) in direction of arrow from rear lid (4).
