65 20 150 Removing and installing/replacing back-up antenna
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove panel for parcel shelf, refer to 51 46 006 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

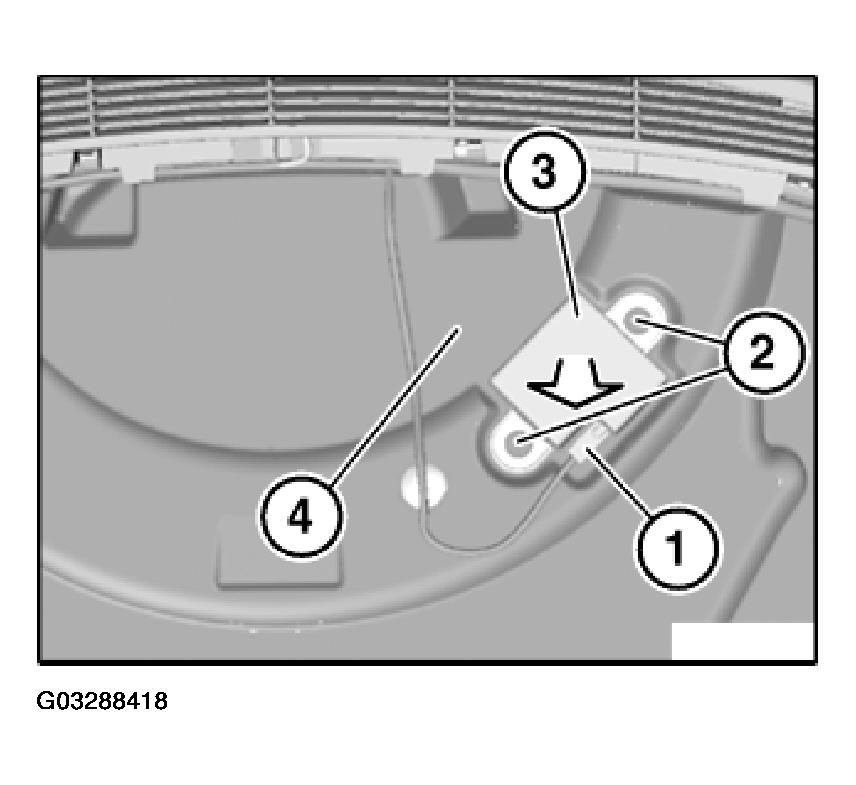

Unfasten plug connection (1) and disconnect.
Release screws (2).
Remove back-up antenna (3) towards top from parcel shelf (4).
