65 20 090 Removing and installing/replacing antenna amplifier (diversity)
WARNING: This page is about a different car, the 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove head restraint at rear left, refer to 52 24 390 REMOVING AND INSTALLING / REPLACING REAR HEAD RESTRAINTS .
- Remove panel for roof pillar on rear left, refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (CPILLAR) .

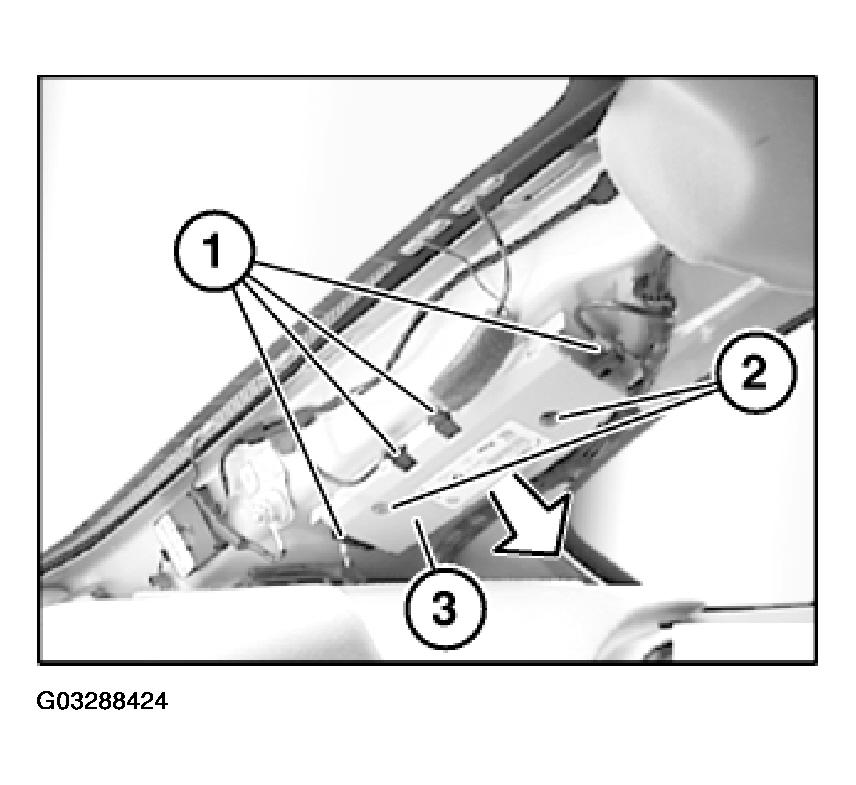

Unlock plug connections (1) and disconnect.
Release screws (2).
Remove antenna amplifier (3) in direction of arrow.
