64 22 138 Removing and installing/replacing right fresh-air grille
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove decorative strip on instrument panel on right, refer to 51 45 380 REMOVING AND INSTALLING (REPLACING) RIGHT DECORATIVE STRIP ON INSTRUMENT PANEL .

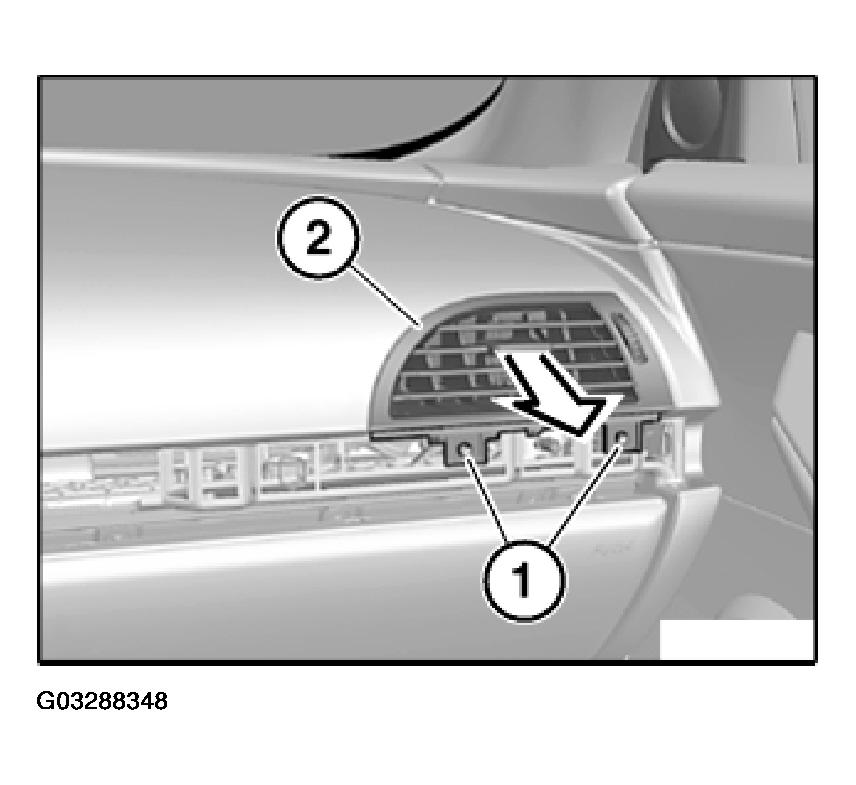

Release screws (1).
Pull back right fresh-air grill (2) and remove.
