64 11 992 Removing and installing/replacing solar sensor
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove speaker frame from trim for instrument panel at top, refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .
Unlock catches (1) in direction of arrow and remove solar sensor (2) from speaker frame (3).

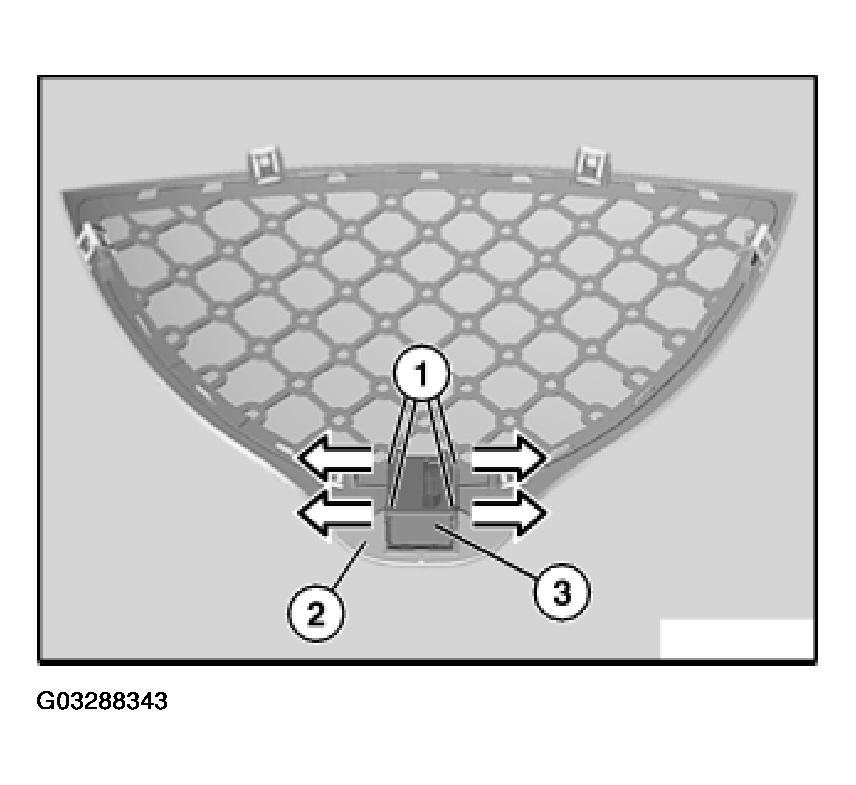

Fig 1: Unlocking Catches (1) In Direction Of Arrow And Removing Solar Sensor (2) From Speaker Frame (3)
Installation:
Catches (1) on speaker frame (3) must not be damaged.
Make sure solar sensor (2) is correctly seated in speaker frame (3).
