64 11 991 Removing and installing/replacing sensor for automatic recirculated air control
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

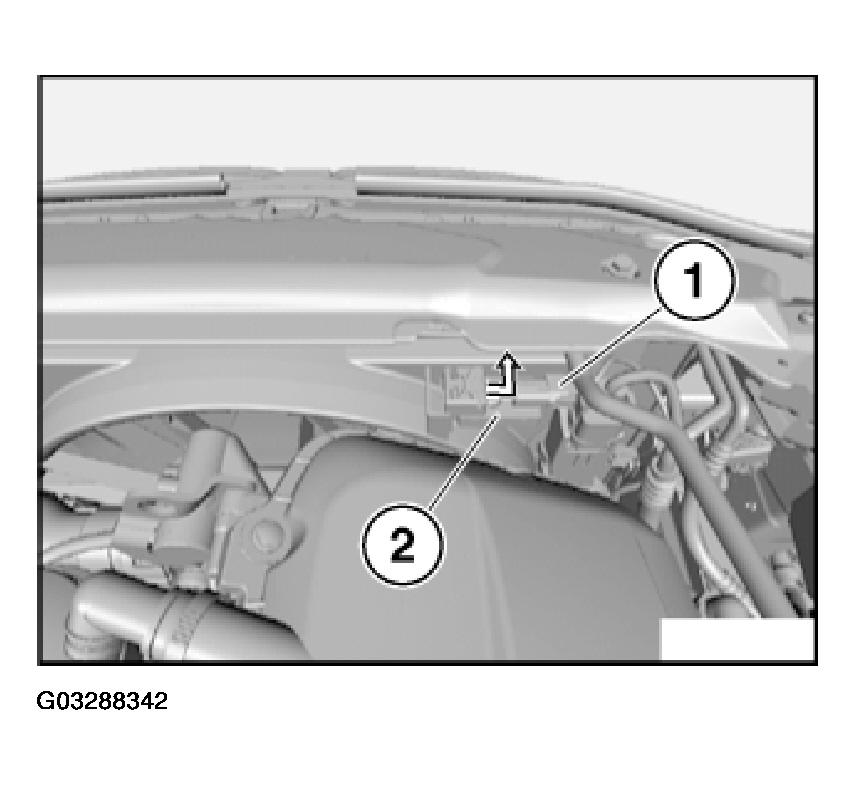

Unfasten plug connection (1) and disconnect.
Feed out sensor for automatic recirculated air control (2) in direction of arrow and remove.
Installation:
Make sure sensor for automatic recirculated air control (2) is correctly seated.
