64 11 912 Removing and installing/replacing temperature sensor for heating unit
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove on-board monitor, refer to 65 82 050 REMOVING AND INSTALLING (REPLACING) ONBOARD MONITOR .

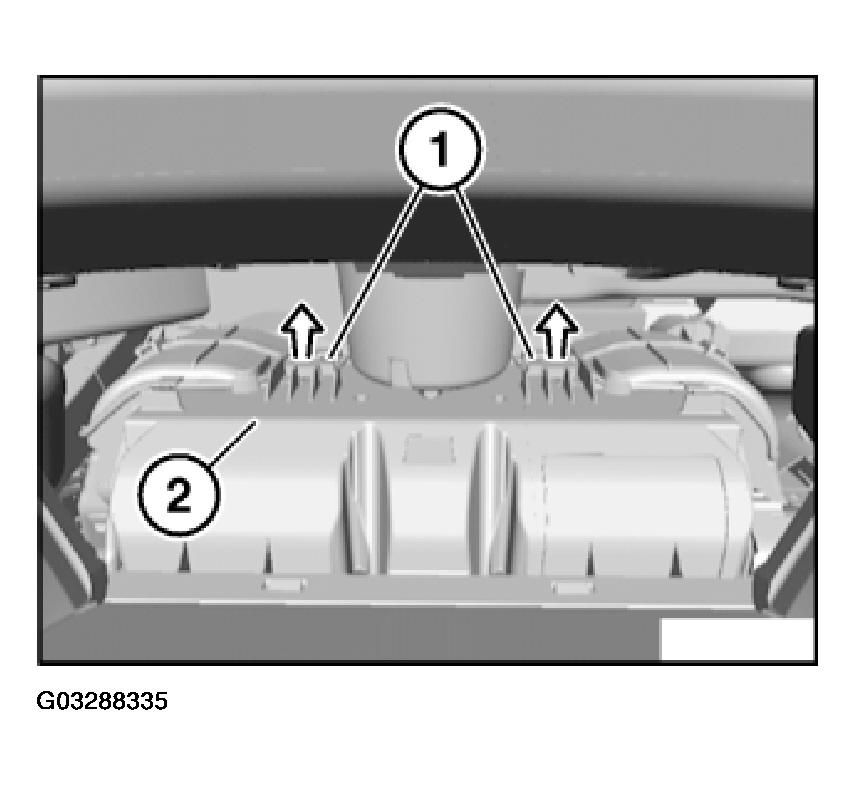

Unlock plug connection (1) on left/right and disconnect.
Pull out temperature sensor for heating unit in direction of arrow out of heating unit (2).
Installation:
Make sure temperature sensor for heating unit is correctly seated.
