64 11 902 Replacing sensor fan for interior temperature
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove control panel for heater - A/C system.

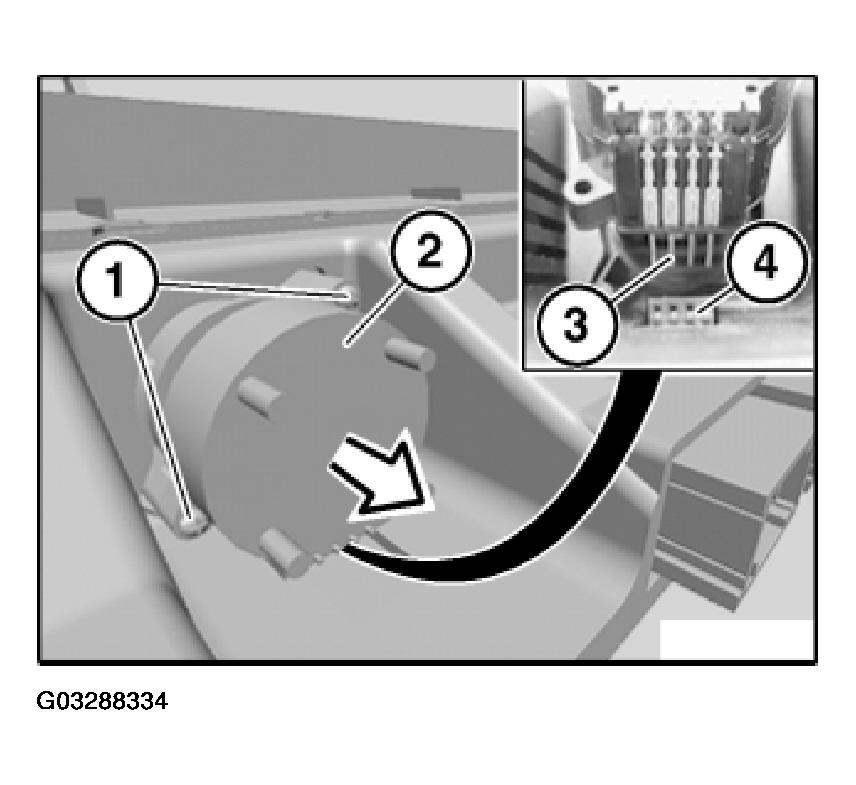

Release screws (1).
Pull out sensor blower for interior temperature (2) in direction of arrow.
Installation:
Make sure pins (3) are correctly seated in base (4).
