64 11 842 Replacing servodrive for right footwell flap

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for instrument panel, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Press lock (1) and unclip servodrive for right footwell flap (2) in direction of arrow.

Unfasten plug connection (3) and disconnect.

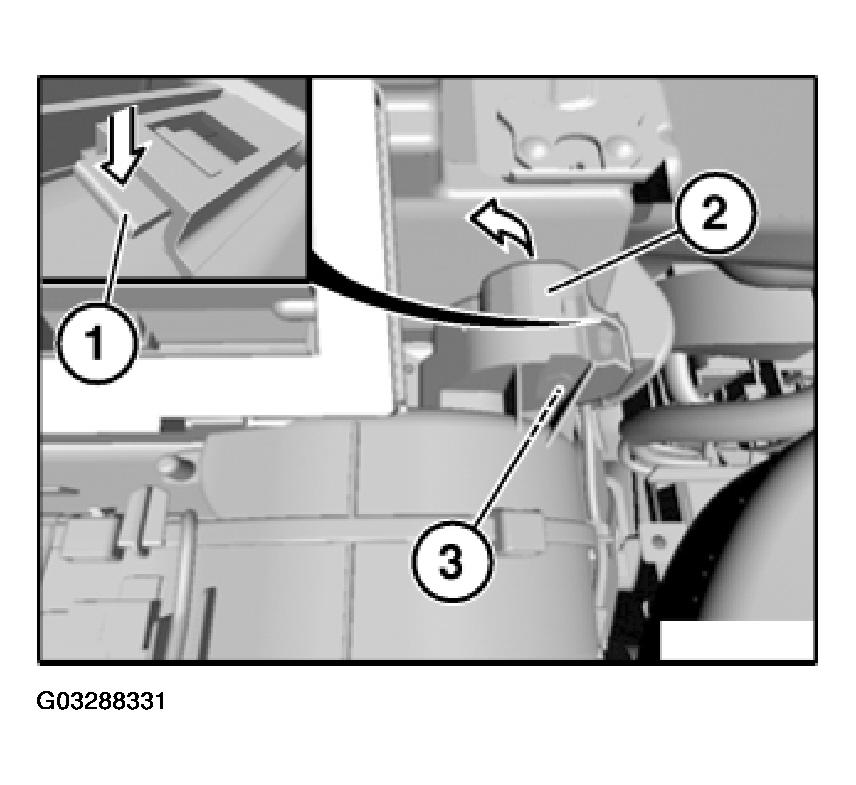

Fig 1: Removing Servodrive For Right Footwell Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Follow repair instruction "Installing servodrive", refer to 64 11 ... INSTALLING SERVODRIVE .
