64 11 808 Removing and installing/replacing servodrive for right fresh-air/recirculated air flap

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bottom right trim panel from instrument panel, refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

Unfasten plug connection (1) and disconnect.

Press lock (2) and pull out servodrive for right fresh-air/ recirculated-air flap (3) in direction of arrow.

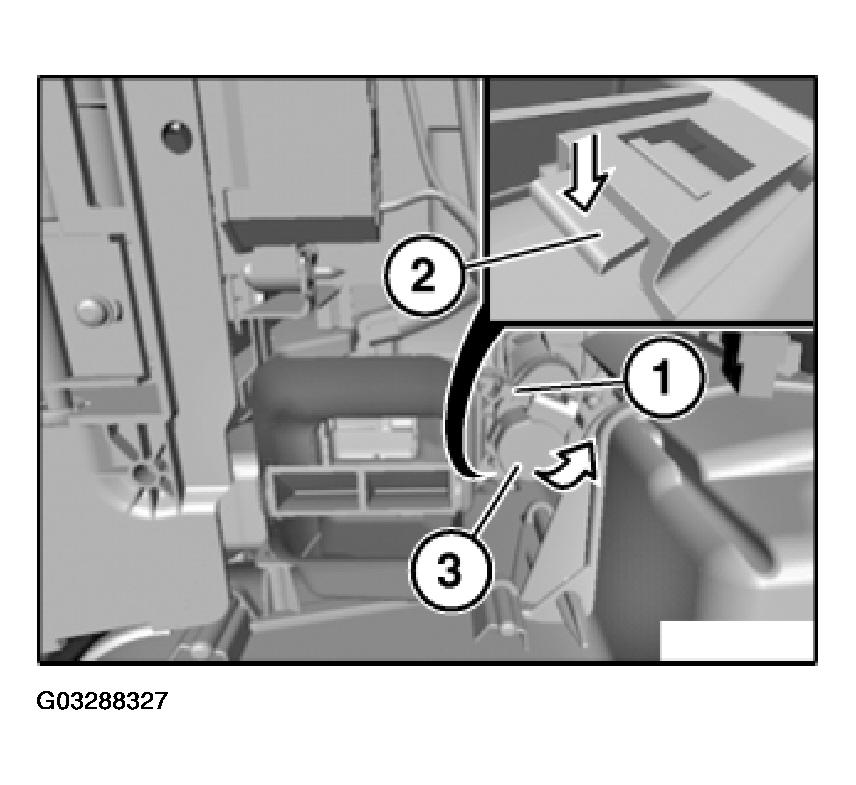

Fig 1: Pulling Out Servodrive For Right Fresh-Air/ Recirculated-Air Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Follow repair instruction "Installing servodrive", refer to 64 11 ... INSTALLING SERVODRIVE .

Servodrive for right fresh-air/recirculated-air flap (3) must snap audibly into place.
