64 11 377 Removing and installing (replacing) control panel for heater - A/C system
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove middle trim for instrument panel, refer to 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTER TRIM FOR INSTRUMENT PANEL .

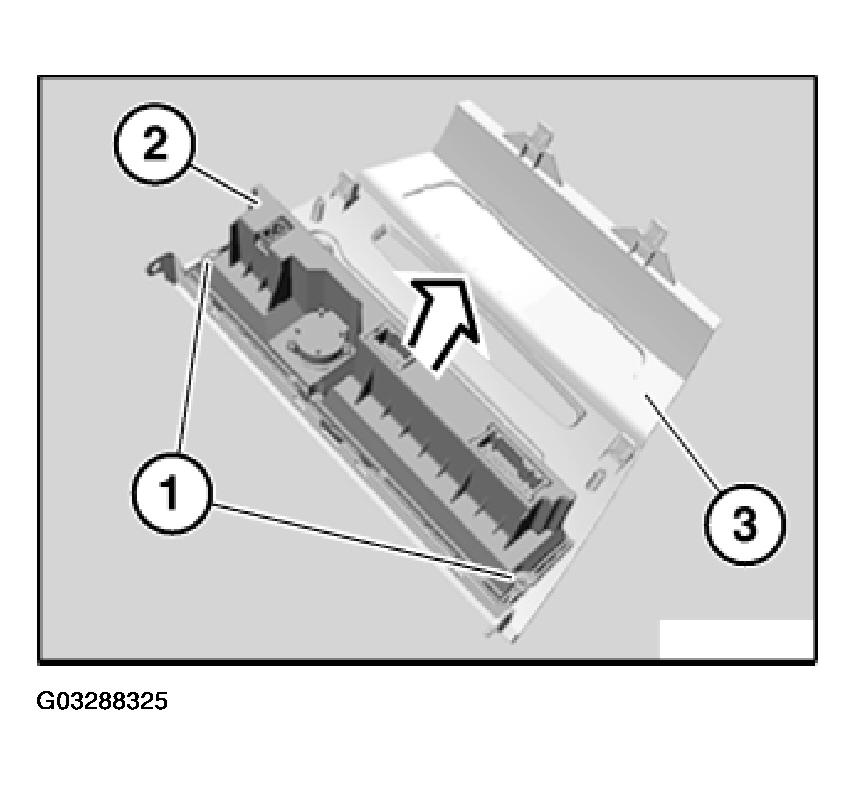

Release screws (1).
Unclip control panel for heater - A/C system (2) all round and remove from middle trim for instrument panel (3).
