64 11 213 Removing and installing/replacing heater - A/C unit fan

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove right glovebox with housing, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING (WITHOUT ACTIVE KNEE PROTECTION) .
Remove bottom right instrument panel trim, refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .
Remove storage compartment, refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
Remove audio system controller, refer to 65 12 200 REMOVING AND INSTALLING (REPLACING) AUDIO SYSTEM CONTROLLER , remove Car Communication Computer, refer to 65 83 010 REMOVING AND INSTALLING/REPLACING CAR COMMUNICATION COMPUTER .

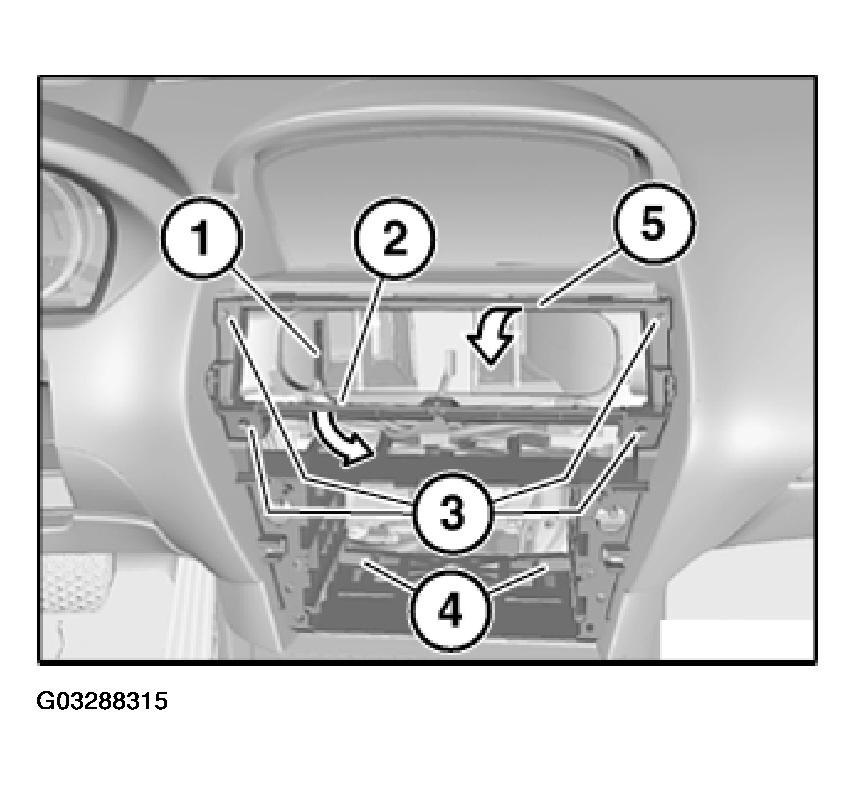

Release screws (3) and (4).

Remove middle function carrier (5) in direction of arrow.

Fig 1: Removing Middle Function Carrier In Direction Of Arrow

G03288315

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure middle function carrier (5) is correctly seated.

Ensure correct cable routing.

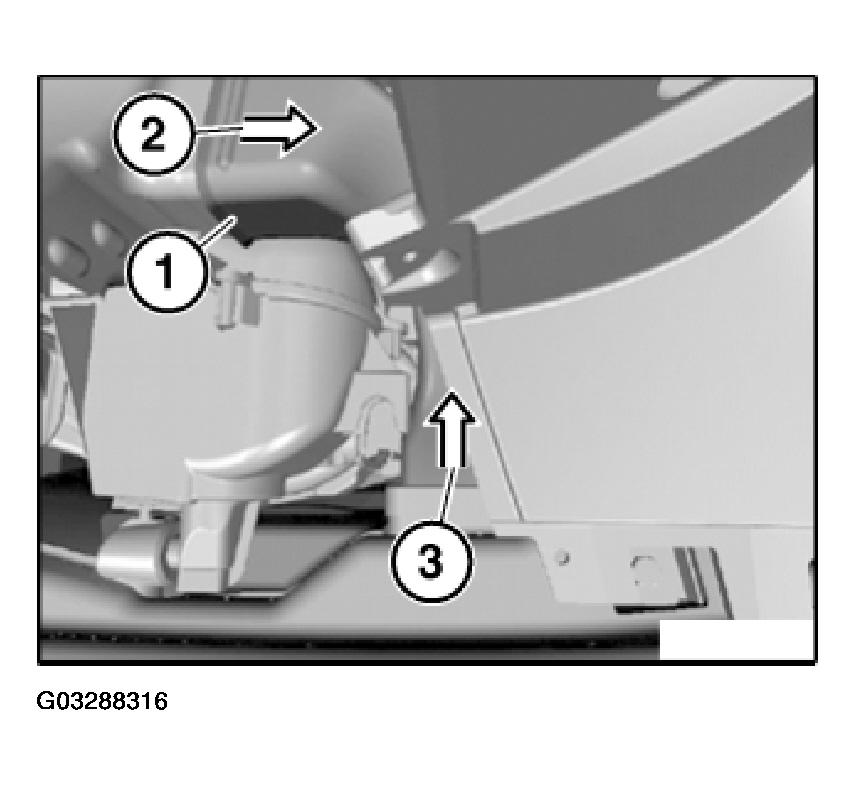

Disconnect left air duct (1) in direction of arrow (2) and (3).

Fig 2: Disconnecting Left Air Duct In Direction Of Arrow

G03288316

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure right air duct (1) is correctly seated.

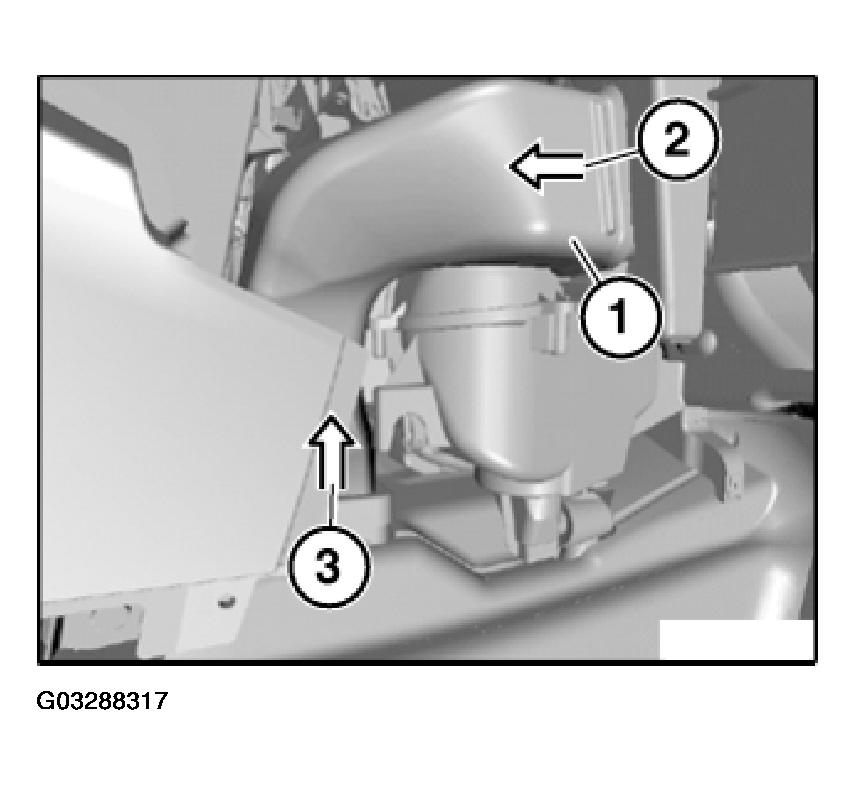

Disconnect right air duct (1) in direction of arrow (2) and (3).

Fig 3: Disconnecting Right Air Duct In Direction Of Arrow

G03288317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure right air duct (1) is correctly seated.

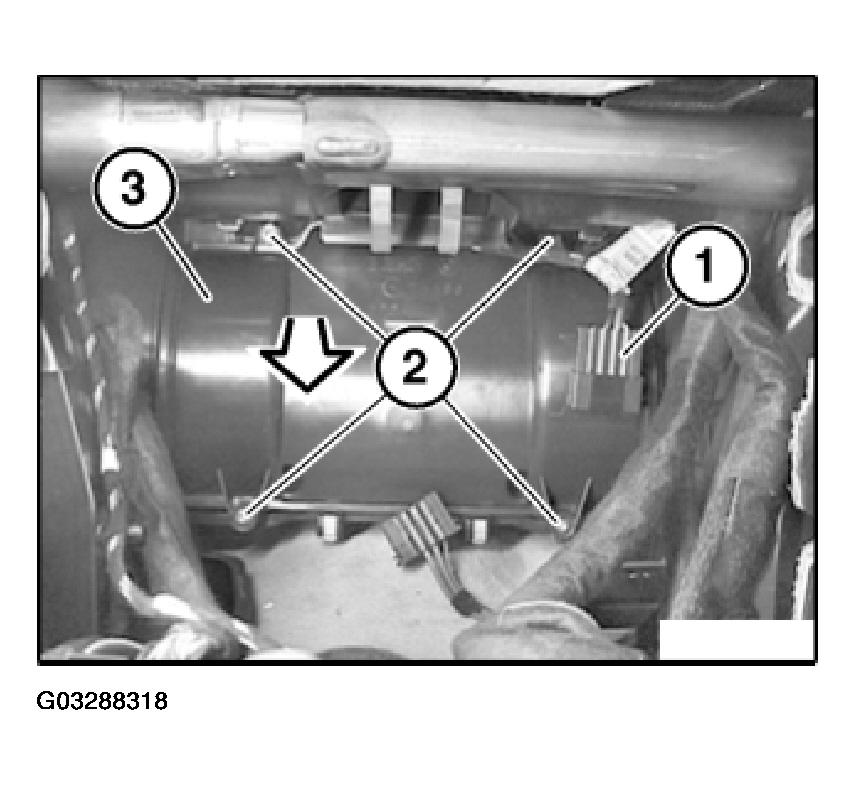

Unlock plug (1) and remove.

Release screws (2).

Remove cover (3) in direction of arrow.

Installation:

Ensure correct cable routing.

Make sure seal is correctly seated in cover (3).

Fig 4: Ensuring Correct Cable Routing

G03288318

Courtesy of BMW OF NORTH AMERICA, INC.

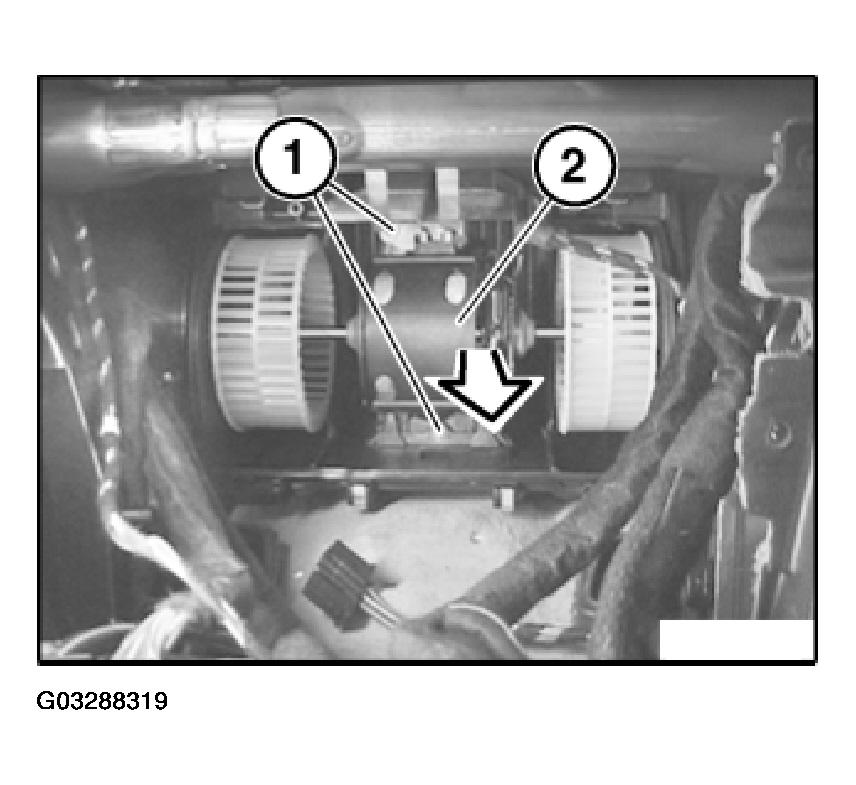

Release screws (1).

Remove fan for heater - A/C unit (2) in direction of arrow.

Fig 5: Removing Fan For Heater - A/C In Direction Of Arrow

G03288319

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure fan for heater - A/C unit (2) is correctly seated.

Replacement:

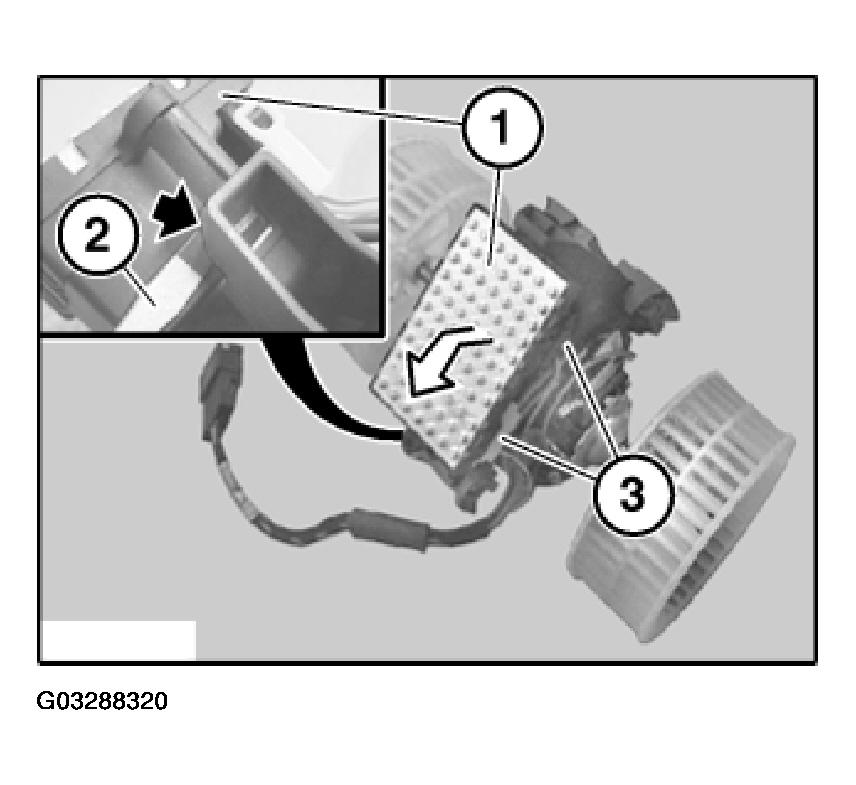

Unlock controller for heater - A/C unit fan (1) with a suitable screwdriver (2) and remove.

Unlock plug connections (3) and disconnect.

Fig 6: Unlocking Controller For Heater - A/C Unit Fan With A Suitable Screwdriver

G03288320

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure controller for heater - A/C unit fan (1) is correctly seated.
