64 11 208 Replacing heater core
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove heater.

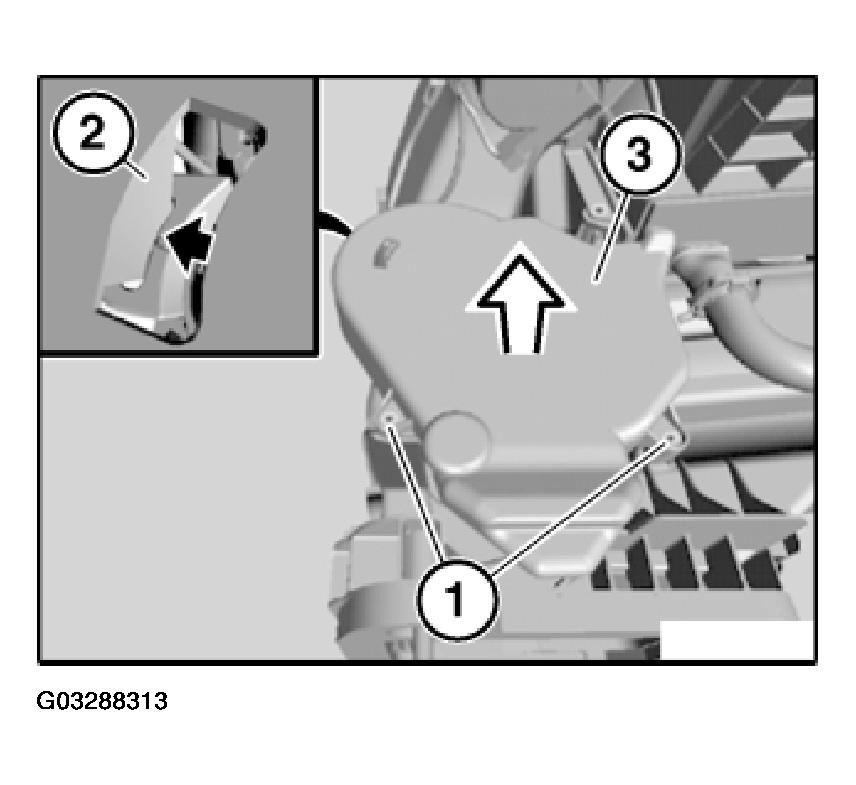

Release screws (1).
Press lock (2) and remove cover (3) in direction of arrow.
Installation:
Ensure cover (3) is correctly seated.

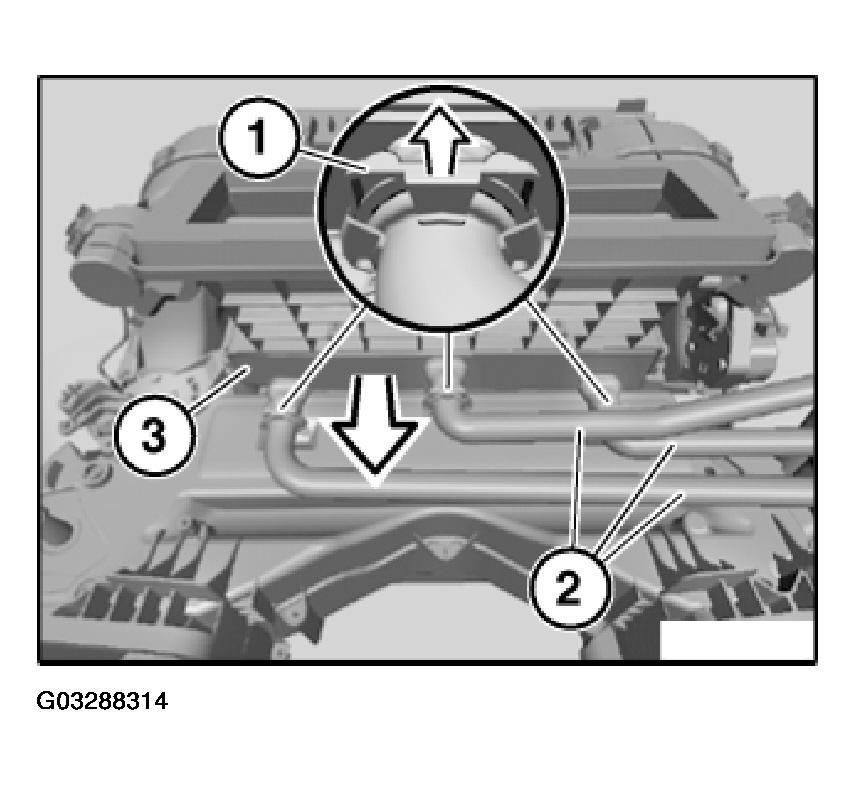

Pull out clips (1) in direction of arrow.
Installation:
Make sure clips (1) are correctly and firmly seated.
Pull pipes (2) out of heater core (3).
Installation:
Replace sealing rings.
Coat sealing rings with antiseize agent.
Make sure sealing rings are correctly seated.
Pull out heater core (3) in direction of arrow.
Installation:
Make sure heater core (3) is correctly seated.
