64 12 120 Removing and installing/replacing intake muffler for independent/auxiliary heater
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left front wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove front left wheel arch lining, refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .
- Remove left underbody paneling.

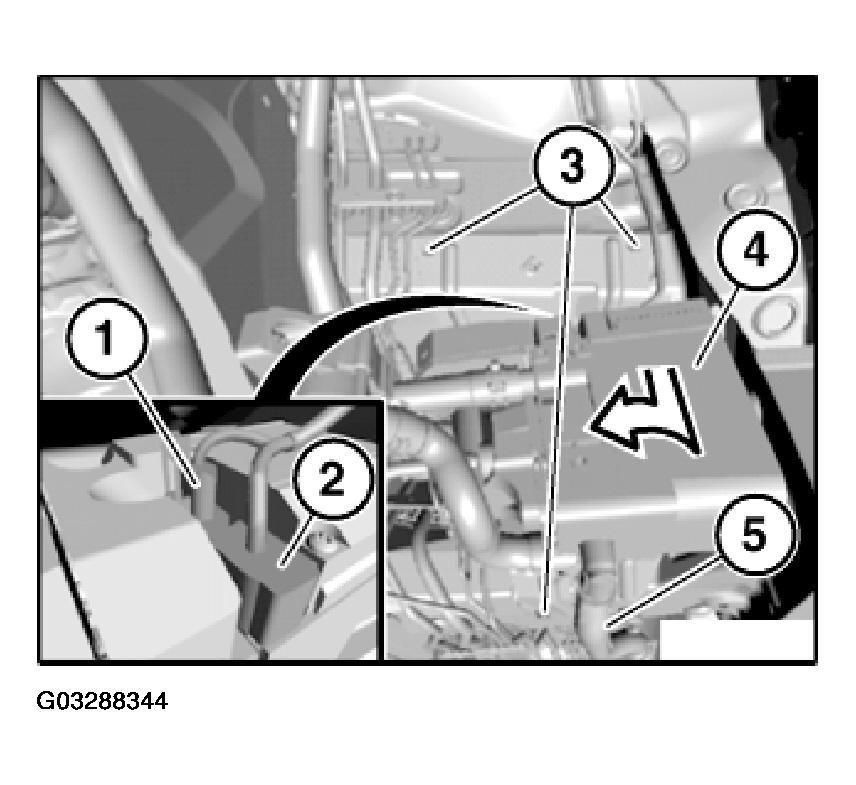

Disconnect plug connections (1) and (2).
IMPORTANT:
To avoid damaging the independent heater, it is absolutely essential to adhere to the following connecting sequence for the plug connections during installation:
- Plug connection (1)
- Plug connection (2)
Release screws (3).
Fold independent heater (4) in direction of arrow to one side.
Installation:
Make sure exhaust pipe of independent heater (4) is correctly seated in muffler (5).

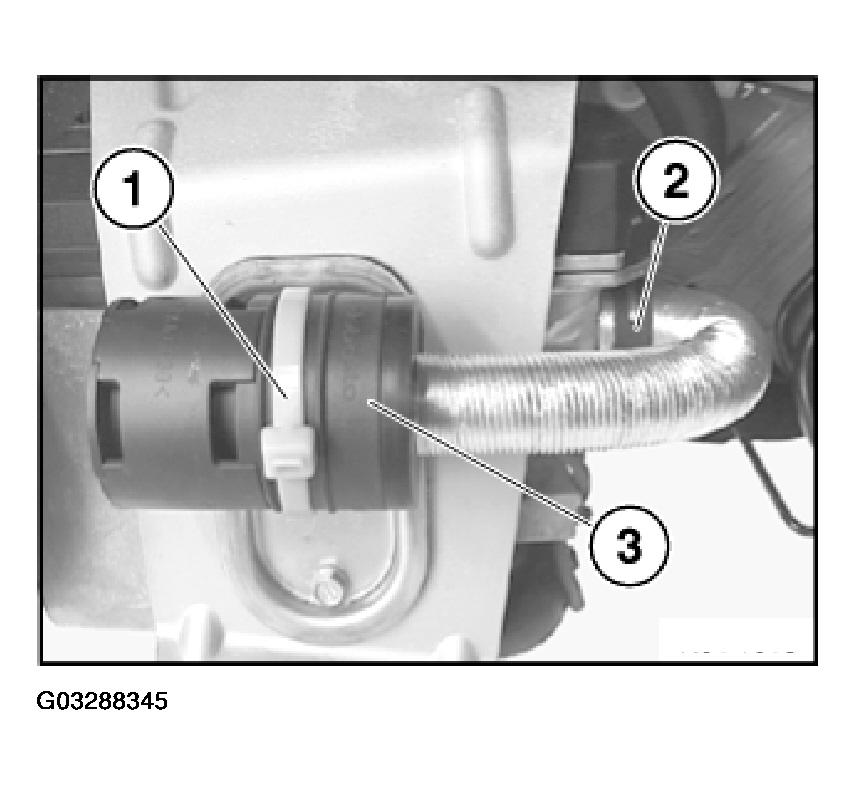

Detach cable strap (1).
Release spring clip (2) and detach corrugated tube from independent/auxiliary heater.
Remove intake muffler for independent/auxiliary heater (3).
