52 13 041 Removing and installing / replacing inner cover on left or right front seat backrest (normal/ manual)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Shown removed for purposes of clarity.

Release screw (1) and remove trim (2).

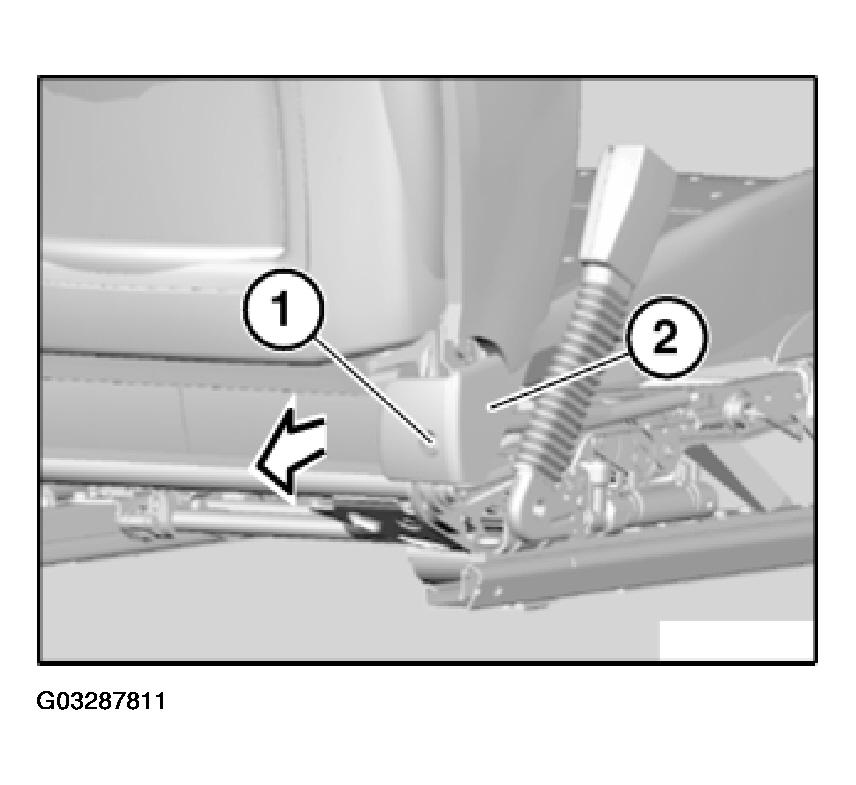

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
