18 00 020 Removing and installing complete exhaust system (N62)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

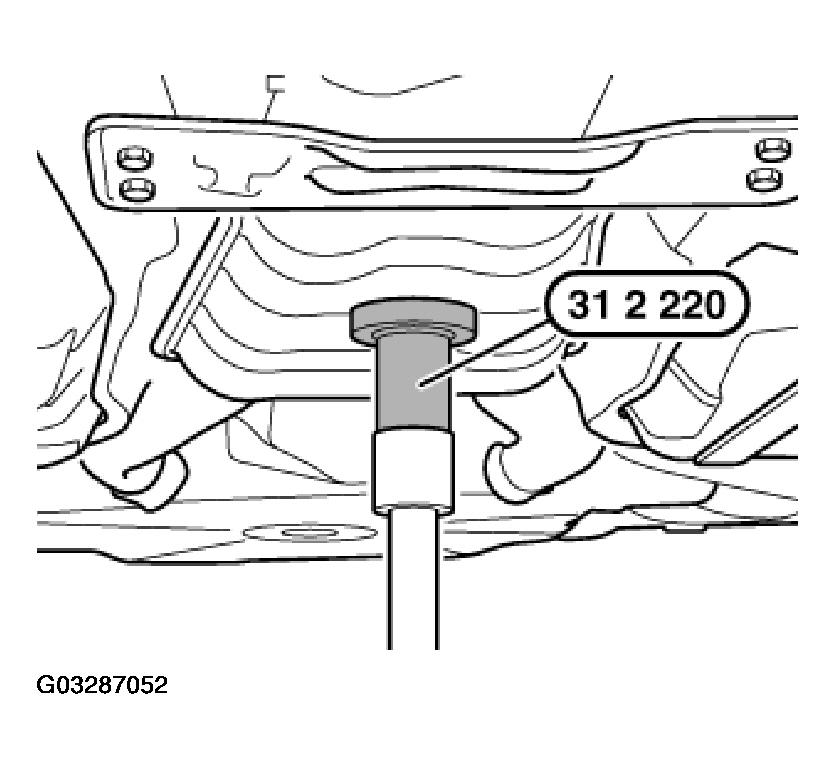

Fig 1: Identifying Special Tool 31 2 220

G03287052

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Scalding hazard! Only perform this work after engine has cooled down. Danger of injury! Removal of the exhaust system must be carried out with the assistance of a second person. Weight of exhaust system is approx. 50kg.

Necessary preliminary tasks:

E64 only:
Remove tension struts on left and right

Support exhaust system with special tool 31 2 220.

Unscrew nuts (1).

Unscrew nuts (2).

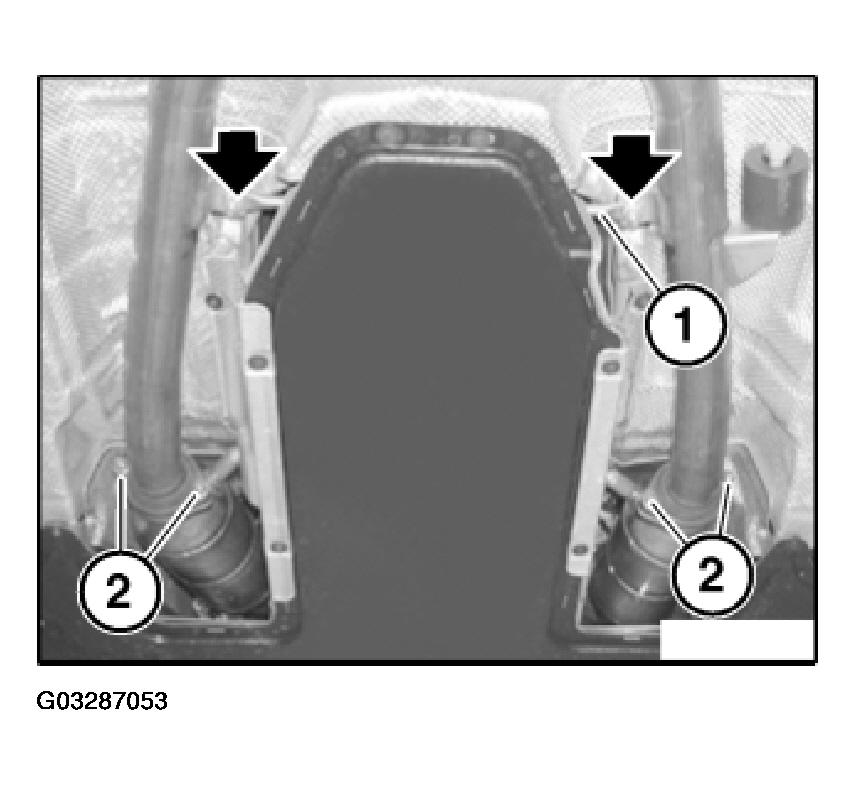

Fig 2: Releasing Nuts (1 Of 4)

G03287053

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations depict the left side - proceed in the same way for the right side.

Unscrew nut (1).

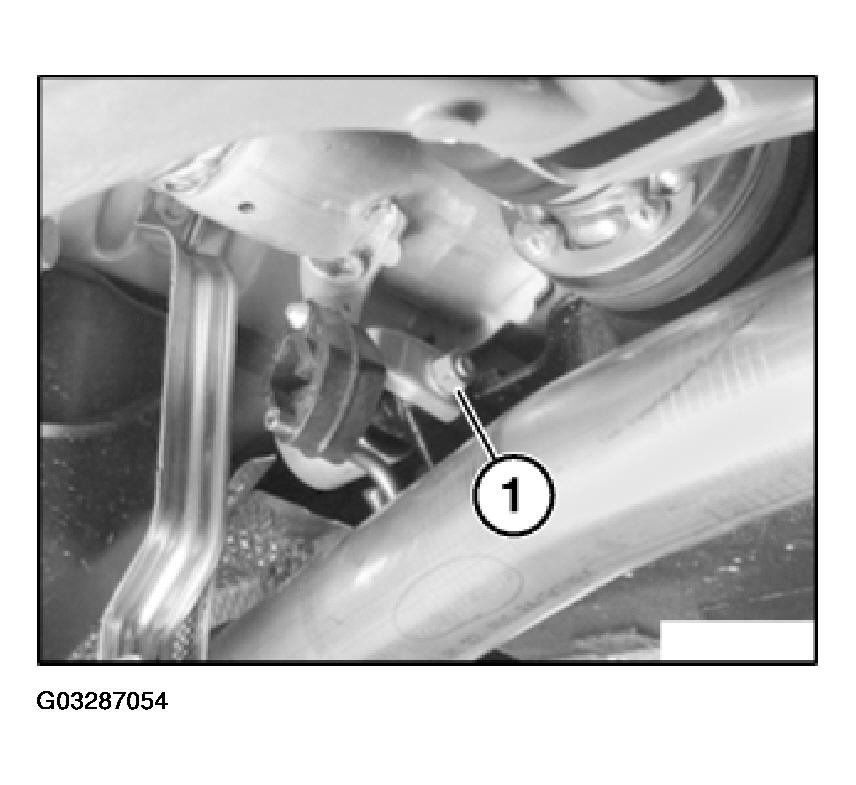

Fig 3: Releasing Nuts (2 Of 4)

G03287054

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations depict the left side - proceed in the same way for the right side.

Unscrew nuts.

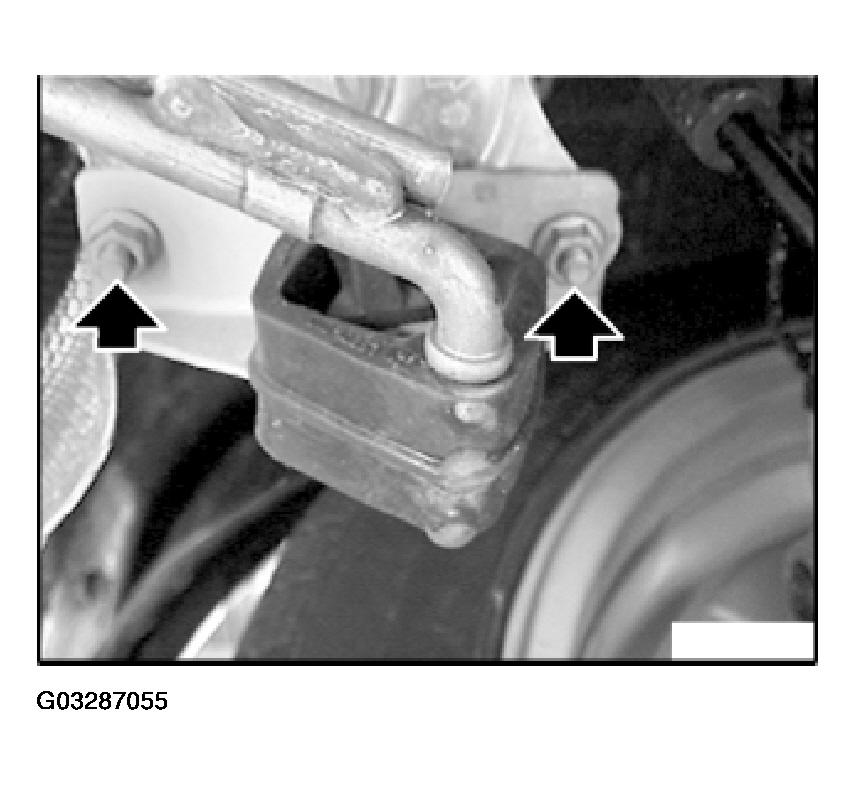

Fig 4: Releasing Nuts (3 Of 4)

G03287055

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations depict the left side - proceed in the same way for the right side.

Unscrew nuts.

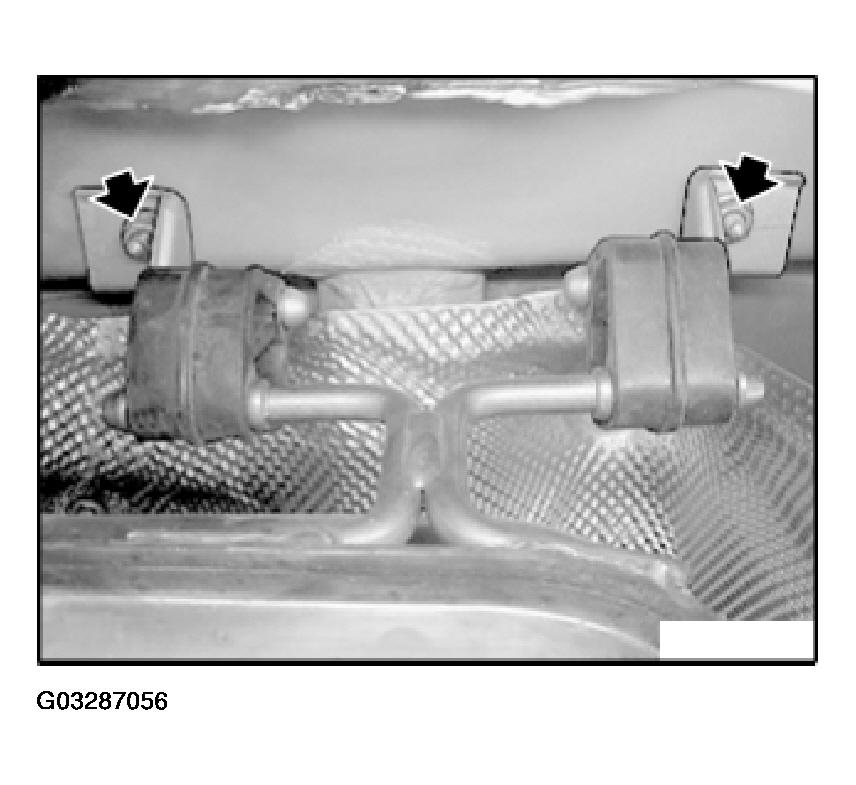

Fig 5: Releasing Nuts (4 Of 4)

G03287056

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove reinforcement plate (1).

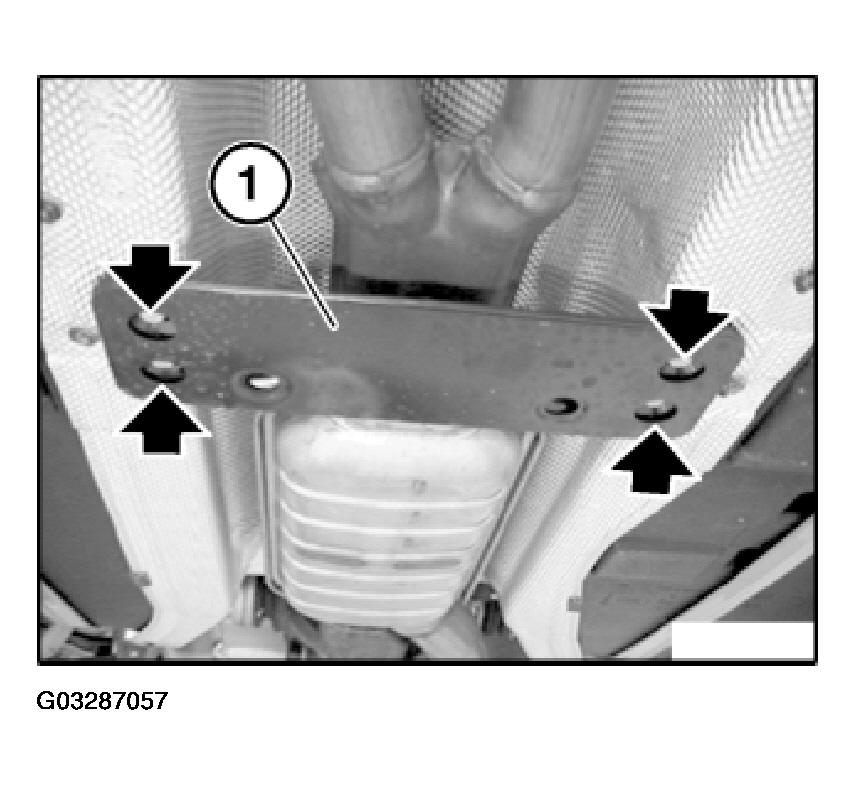

Fig 6: Removing Reinforcement Plate (N62)

G03287057

Courtesy of BMW OF NORTH AMERICA, INC.

Lower exhaust system carefully.
