65 50 125 Removing and installing left or right rear cabin monitor (long version)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove UPPER REAR PANEL FROM FRONT SEAT BACKREST

Release screws (1) on both side and lift out monitor (2).

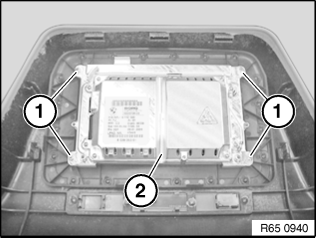

Fig 1: Identifying Monitor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
