65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Lever speaker cover (1) with special tool 00 9 341 (removal aid) out of rear shelf (2).

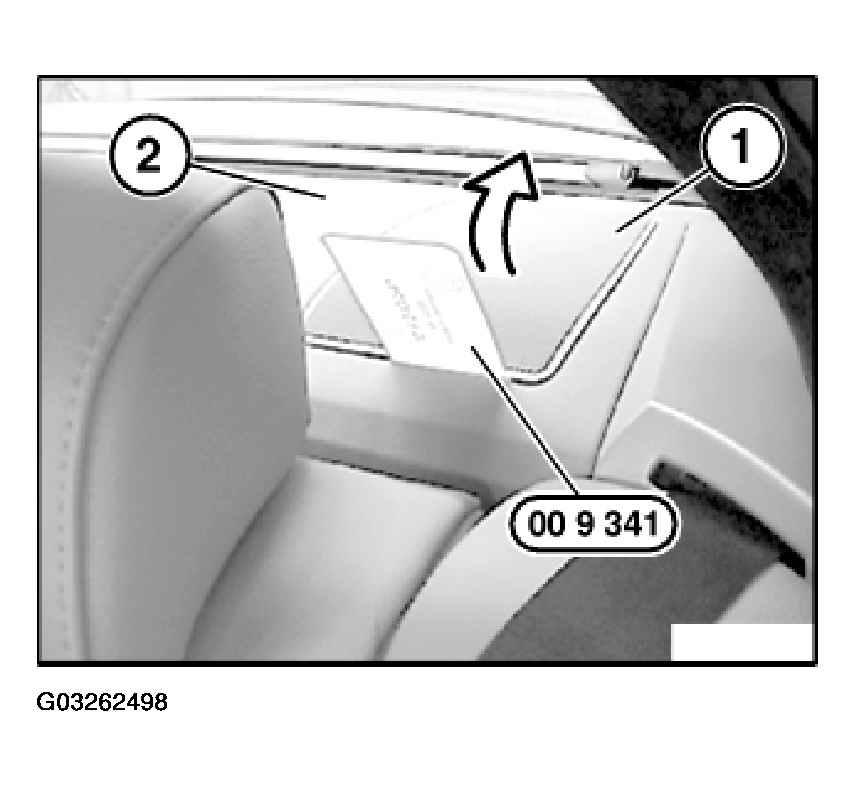

Fig 1: Identifying Lever Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Make sure speaker cover (3) is fully engaged.

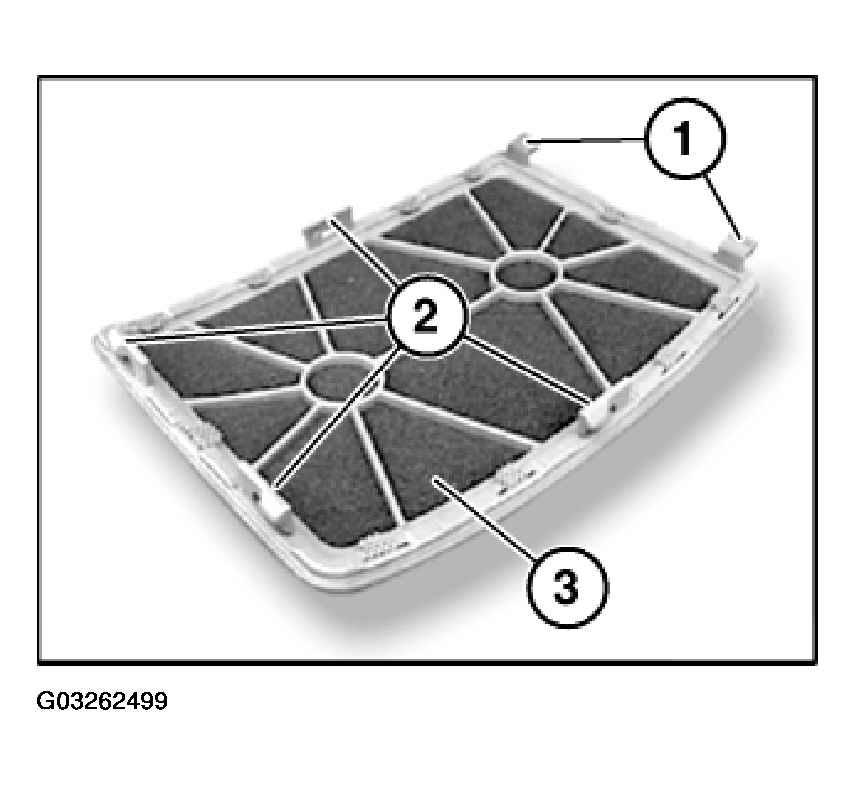

Fig 2: Identifying Lugs And Locks Of Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connection and remove mid-range speaker (2).

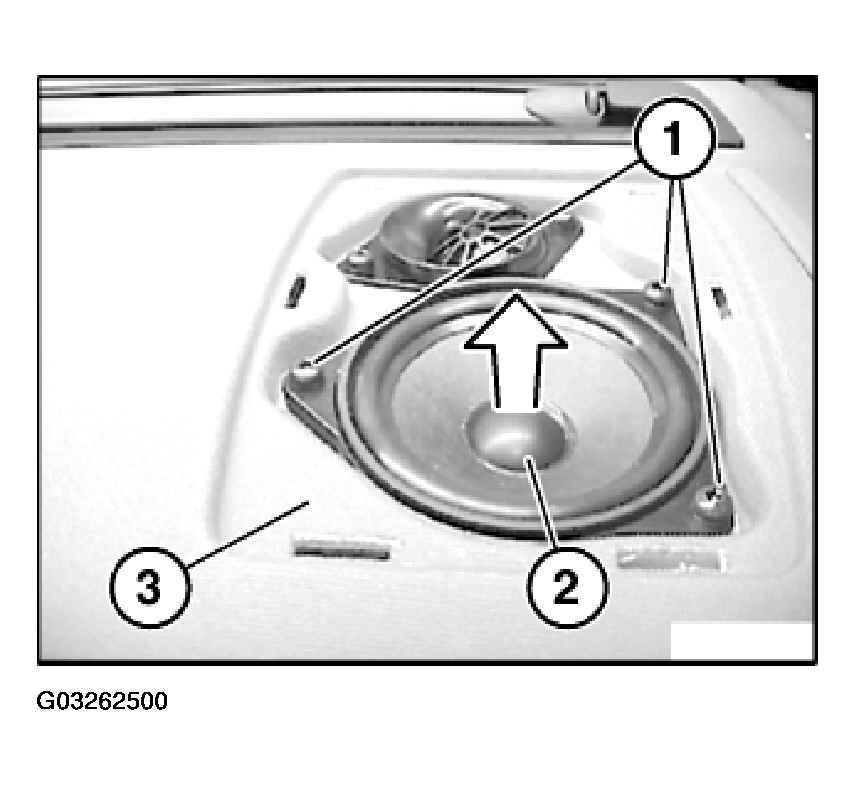

Fig 3: Removing Mid-Range Speaker Upwards From Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
