65 13 070 Removing and installing/replacing speaker (mid-range speaker, door at front)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM PANEL .

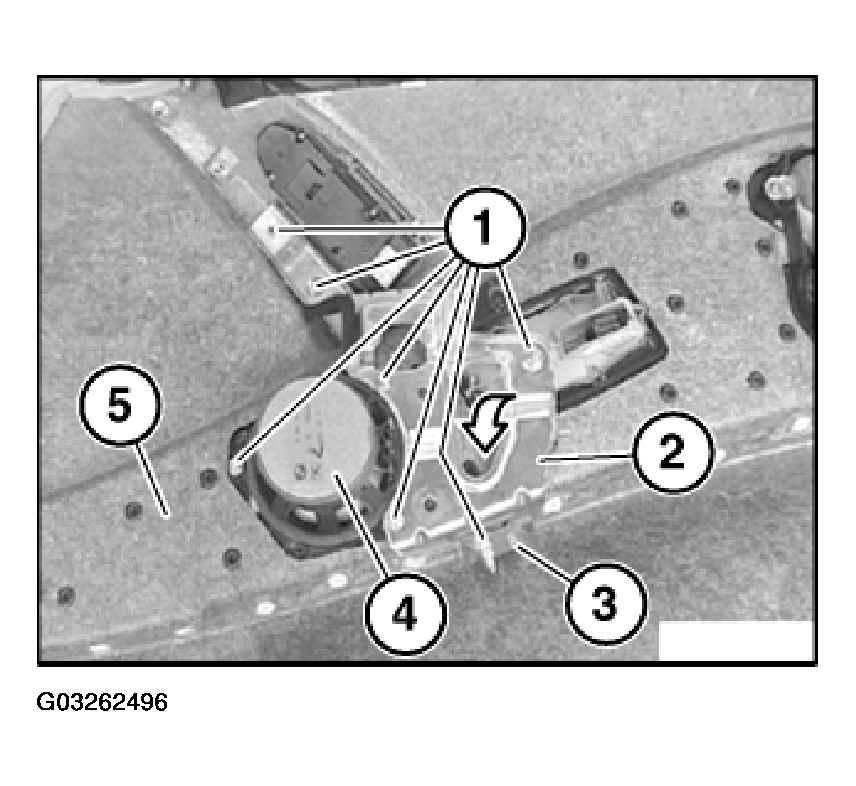

Unscrew nuts (1).
Remove retaining plate (2) in direction of arrow.
Installation:
Retaining plate (2) must be positioned over pin (3).
Remove speaker (4) upwards out of front door trim panel (5).
