65 13 070 Removing and installing/replacing speaker (mid-range speaker, door at front) (long version)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM

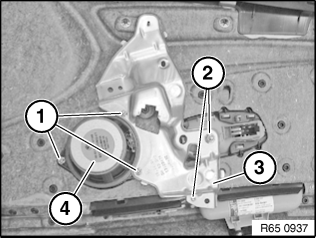

Unscrew nuts (1).
Release nut (2) and bend retaining plate (3) upwards slightly.
Feed speaker (4) upwards out of door trim panel and retaining plate.
