65 77 730 Removing and installing (replacing) vehicle center sensor
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
WARNING:
Note airbag SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD and cover.
- Remove CENTER CONSOLE .
NOTE:

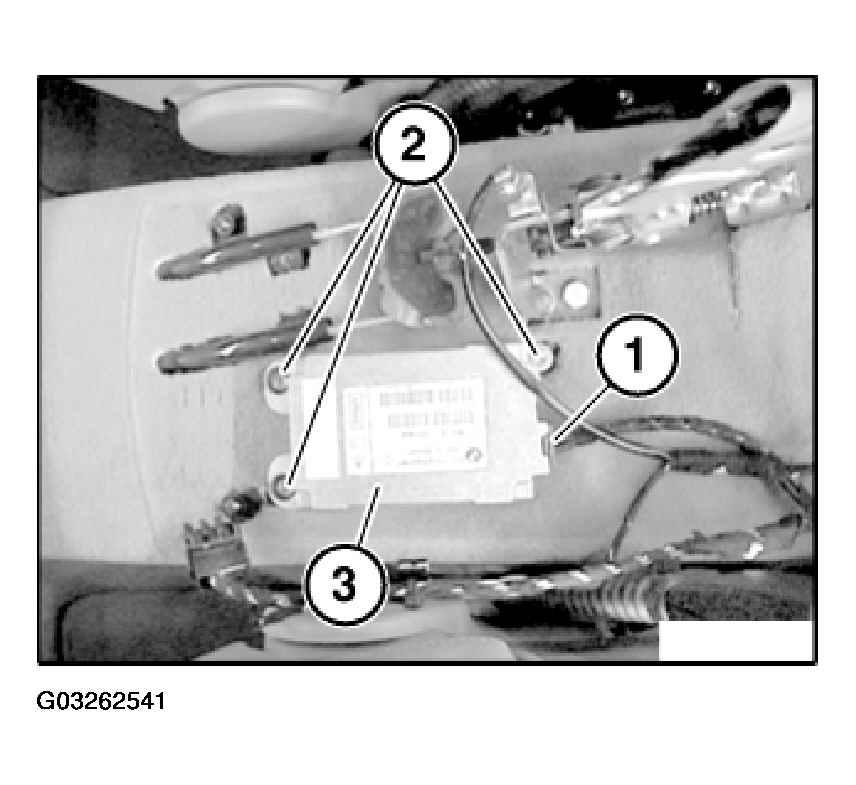

Middle rear compartment ventilation duct shown removed for purposes of clarity.
Unfasten plug connection (1) and disconnect.
Tightening torque: 8 Nm
Remove vehicle center sensor (3).
Replacement:
Carry out PROGRAMMING/CODING .
