61 12 210 Replacing wiring harness in left or right rear door
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Close rear side window completely.
- Remove REAR DOOR TRIM PANEL .
IMPORTANT:
Follow instructions for HANDLING OPTICAL FIBRES .

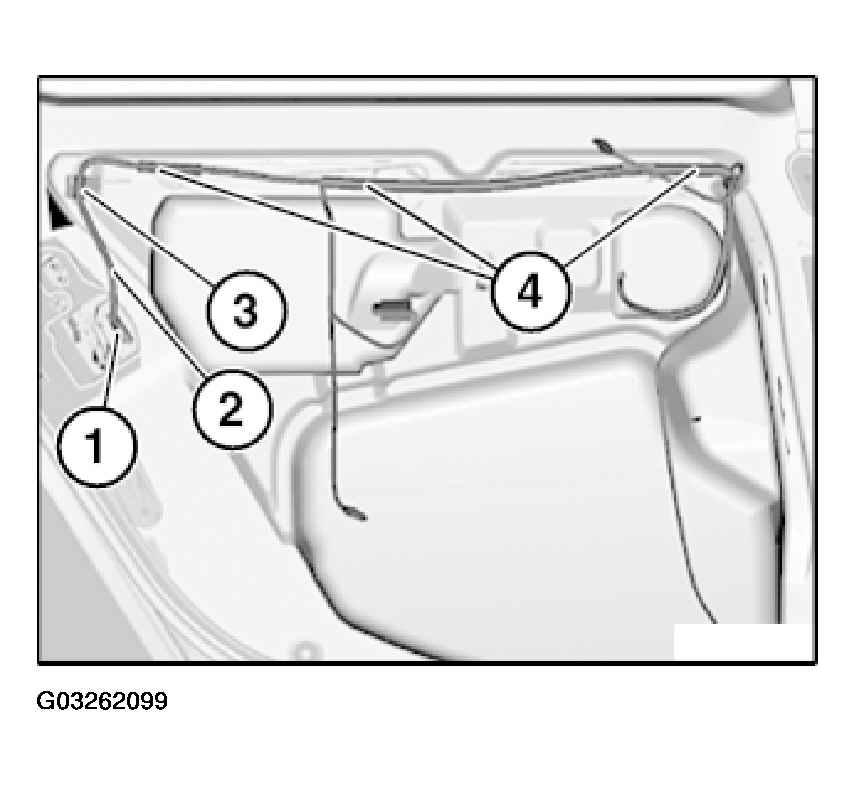

Unfasten plug connection (1) and disconnect.
Release door wiring harness (2) at point (3).
Unclip door wiring harness (2) at points (4).
Detach SOUNDPROOFING on rear door in working area.

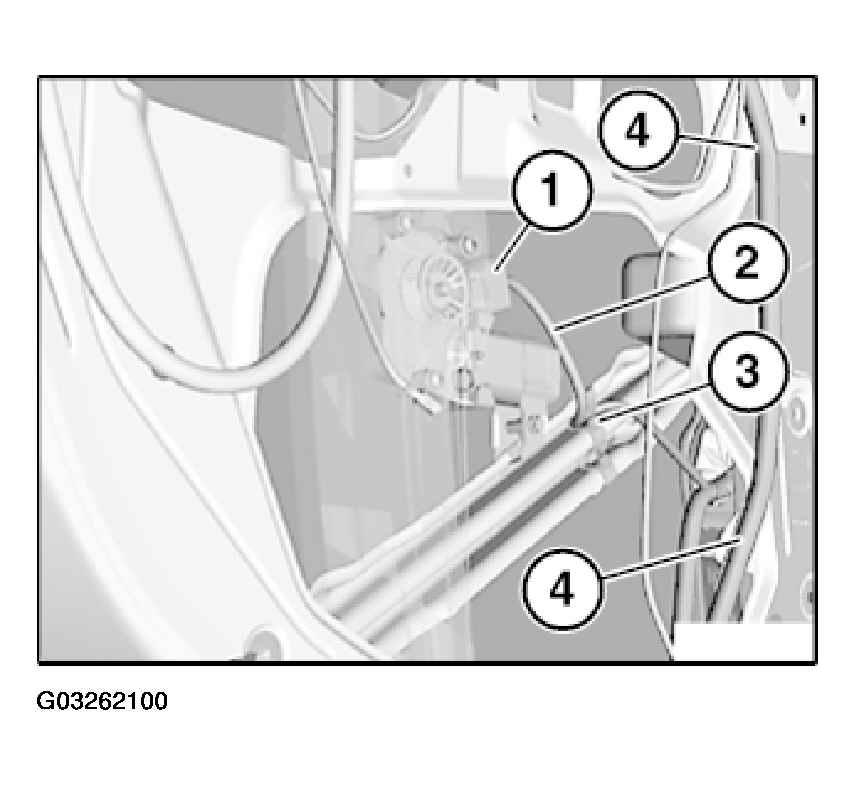

Unfasten plug connection (1) and disconnect.
Disconnect door wiring harness (2) at retainer (3).
Unclip door wiring harness (2) at points (4).
Installation:
Make sure door wiring harness (2) is correctly laid.
NOTE:
For clearer illustration, shown with front door removed.

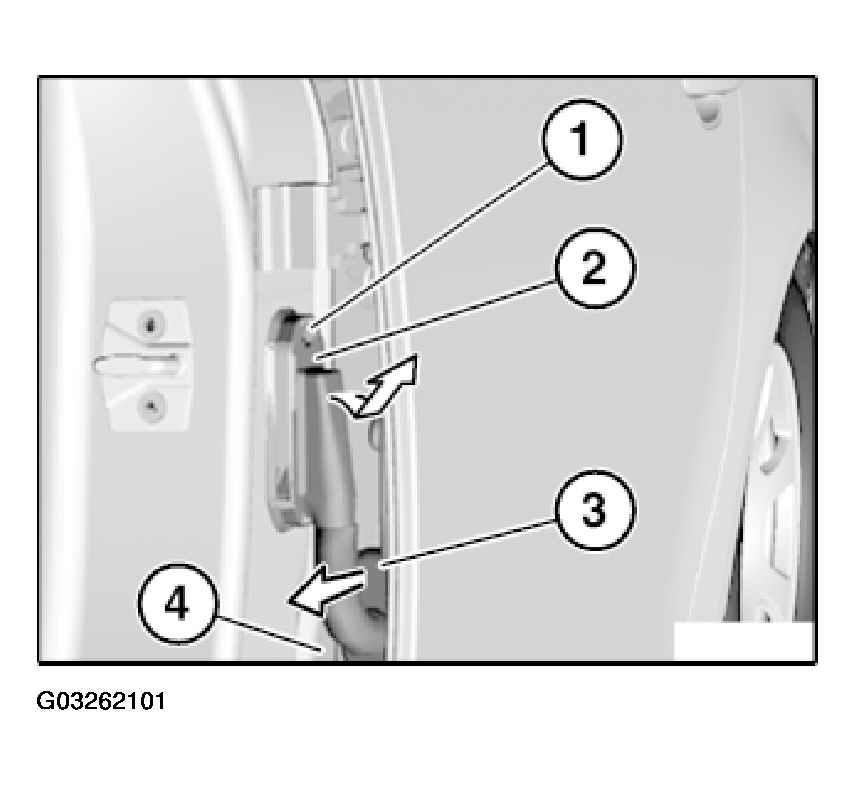

Release screw (1), fold door wiring harness plug on B-pillar (2) downwards slightly and remove.
Unlock plug connection behind and disconnect.
Pull rubber grommet (3) in direction of arrow out of rear door (4).
Feed out door wiring harness towards front to B-pillar and remove.
